Home > Products > Broom/Brush Machine > Super good quality visco broom machine VIP-3A1H001

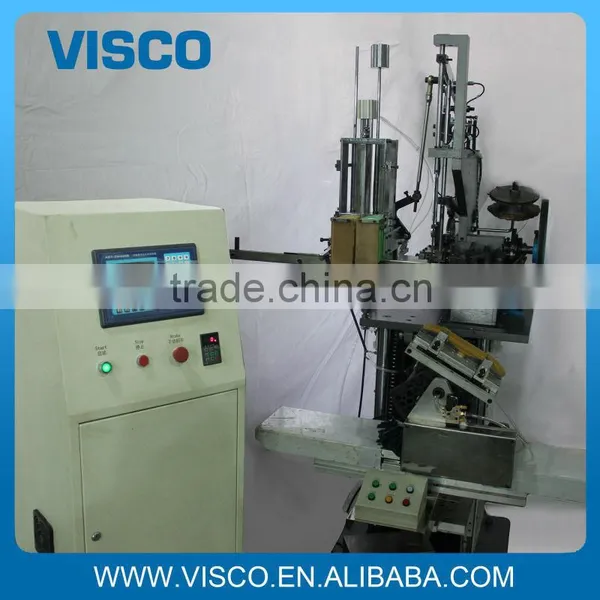

Super good quality visco broom machine VIP-3A1H001
- 10 Piece / Pieces per Month
- FOB XIAOLAN
- T/T D/P D/A Credit Card
Product Details
Condition: | New | Application: | making brush & broom, for making brush | Automatic Grade: | Automatic |
Production Capacity: | 850-900 holes/minute | Place of Origin: | Guangdong, China | Brand Name: | visco |
Model Number: | VIP-3A1H001 | Voltage: | 380V,50-60Hz | Power(W): | 800W |
Dimension(L*W*H): | 1.2m*1.2m*1.5m | Weight: | 300kgs, 300kgs | Certification: | with |
Warranty: | 1 year, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden case
Product Description
Specifications
Super good quality visco broom machine VIP-3A1H0011 Long-lived
2 Low noise
3 Fast delivery
4 It is easy to operate
Super good quality visco broom machine VIP-3A1H001
Standard Working Area of Working Table | x-axis*Y-axis=350mm*180mm,(Maximum size customized:500mm*500mm) | |||||
The working table is composed of Straight-line guide rail and ball screw with high precision, which is quite stable and durable. | ||||||
Type of Brush Handle | cylindrical shape, with flat and curved surface. | |||||
Material of Brush Filaments | PP, Nylon, Copper wire, stainless steel wire, bristles. | |||||
Available Items | 3-Axis Single tufting head, is used to make cloth brush, toilet brush and other brush with flat shape and curved shape. | |||||
Length of Filaments(Outside Holes) | 8mm-45mm | |||||
Diameter of Filaments | 0.08mm-1.2mm | |||||
Diameter of Holes | 1.2mm-5mm | |||||
Colors of Filaments | Either single color or 2 colors | |||||
Maximum Tufting Speed | 6 holes per second | |||||
Specifications of Machine Body | 1.2m*1.2m*1.5m | |||||
Motor(Power System) | With step-motor by default; also we could use servo-motor instead, if required by customer. | |||||
Data Input for Tufting Positions | Teach-Mode or Digits-Type | |||||
Touchable Screen | 5.7" single color LCD screen, could be available in various languages, as required by client; touch-switch with good feels, high reliability and long service life, and each switch function on the interface descripted in Chinese & English, which is quite simple and convenient. | |||||
Speed Ajusting | Frequency-conversion stepless-adjustable speed | |||||
Qty of Programs Saved | It saves totally 2000 programs 100,000holes for making different brushes | |||||
Weight | About 300kgs | |||||
Programming | Computer Integrated Digital Controll stysterm, exclusively delevoped for tufting with high precision,high stability and high storage, which is quite convenient. | |||||
Power Supply | 3-phase380V,or single -phase220V,50-60Hz,800W | |||||
Replaceable Grippers | FMS type .Operator could make other kinds of brushes, as long as he changes clamps. | |||||
Tufting Method | “flat wire” or “staple” | |||||
Packing | Wooden case |
Super good quality visco broom machine VIP-3A1H001
Super good quality visco broom machine VIP-3A1H001
Super good quality visco broom machine VIP-3A1H001
