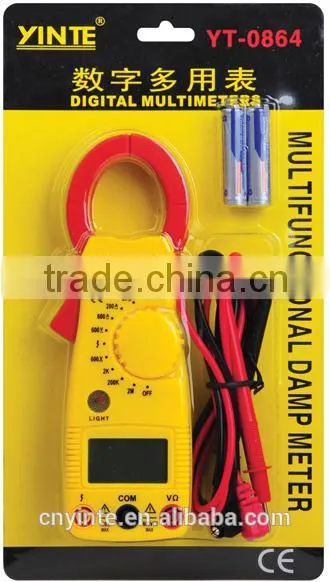

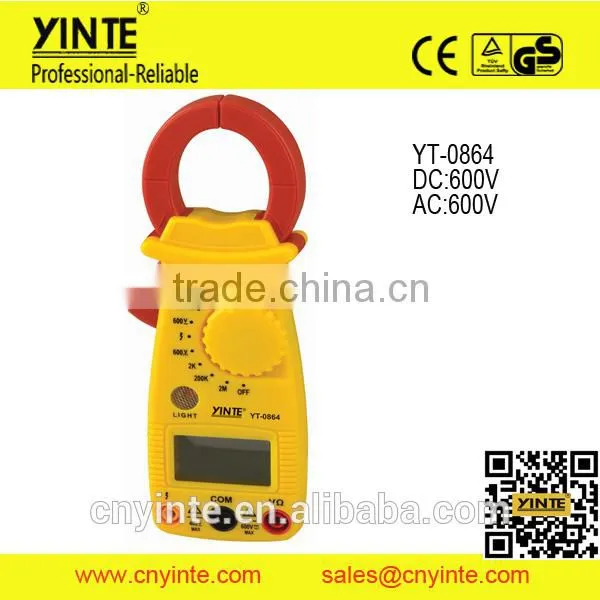

YT-0864 Large Display Electronic Ohms Volt Meter Digital Clamp Meter

Name: YT-0864 Large Display Electronic Ohms Volt Meter Digital Clamp Meter
Brand: YINTE
SKU: 107374335
Availability: InStock

US$ 1.5 - 5.5 MOQ: 600 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YINTE

Model Number:

YT-0864

Yuyao City Yinte Test Pencil Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YINTE

Model Number YT-0864

Measuring Current Range 2000m/20A/600A

Measuring Voltage Range 200/600V

Measuring Resistance Range 200K

Measuring Capacitance Range Electronic Ohms Volt Meter Digital Clamp Meter

Operating Temperature 0-50°C

Dimensions 155*65*25mm

Specifications

YT-0864 Digital Clamp Meter
1) Easily operated
2) Plug-in insulation tester
3) AC/DC current and voltage test

YT-0864 Large Display Electronic Ohms Volt Meter Digital Clamp Meter

1. 3 1/2 digits large LCD display with maximum reading of 1999

2. Versatility of use with AC/DC voltage and resistance measurement

3. Data hold for easy reading (Clamp Meter)

3. Plug-in insulation tester adapter 500VCD(optional)

4. Audible continuity

5. Low power indication

6. Input inpedence: 10M

7. Frequency of sampling:3/S

Accessories:

Test probe, 9V(6F22),Istruction manual

Function	Range	Accuracy
DC Voltage	200/600V	±(0.5%+1dgt)
AC Voltage	600V	±(1.2%+4dgt)
AC Current	20A/200A/600A	±(2.5%+5dgt)
Resistance	200KΩ	±(1.0%+2dgt)
Continuity Buzzer	Yes
Display Hold	Yes
Power Supply	9V Battery 6F22
Maximum Display	1999
Display Size	14×47mm
Product Net Weight	about 160g
Products Size	172×60×25mm
Clamp color available	Red, Orange, Bright Red, Dark Green
Standard Accessories	Test Lead, Battery, Manual, Holster

Item NO.	Digital Clamp Meter YT-0864
Jaw max mouth	50mm
Outer size	1726025MM
Weight/pcs	160G(Including battery)
Package	Each one in blister card , 60pcs/ctn
N.W/CTN	10kgs
G.W/CTN	11kgs
Carton Size	45.536.553cm
