Specifications
AC DC voltage electrical multimeter1) Easily operated
2) Plug-in insulation tester
3) AC/DC current and voltage test
CE

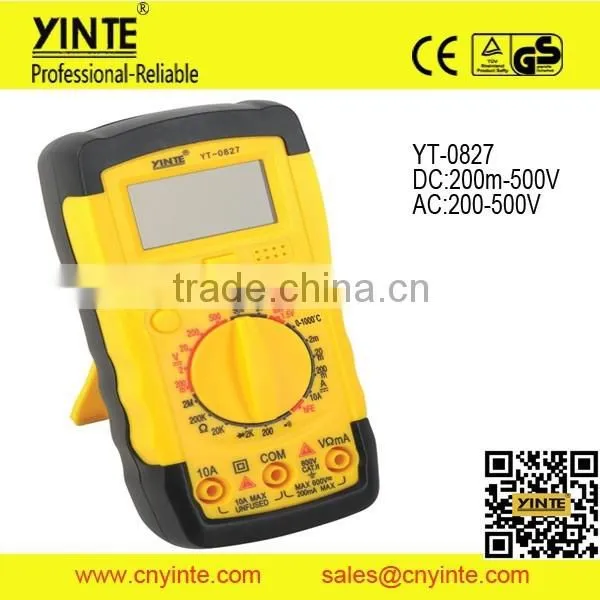

YT-0827 Portable AC DC Voltage LCD Digital Multimeter
Main Functions |
1. 3 1/2 digits large LCD display with maximum reading of 1999 |
2. Versatility of use with AC/DC voltage and resistance measurement |
3. 7 kinds measurement pattern |
4. 19 ranges |
5. battery under voltage remind |
6. outrange overload protection |
7. Low power indication |
8. Make-and-break function test |
9. Safety class CAT 600V |
Technical Specifications
Function |
Range |
Accuracy |
Material |
100% new ABS, no recycled |
|
DC Voltage |
200m/2000m/20/200/500V |
±0.8% |
AC Voltage |
200/500V |
±1.5% |
DC Current |
200μ/2000μ/20m/200m/10A |
±1.2% |
Resistance |
200/2000/20k/200K/2000KΩ |
±1.0% |
Temperature |
0-40 °C |
±2.0% |
Make-and-break function test |
Yes |
|
Low battery indication |
Yes |
|
Auto power off |
Yes |
|
Function protection |
Yes |
|
Diode test |
ok |
|
Audion |
ok |
|
Operation way |
Auto range |
|
Power Supply |
9V Battery 6F22 |
|
Maximum Display |
1999 |
|
Display Size |
14×47mm |
|
Product Net Weight |
about 140g |
|
Products Size |
140×68×30mm |
|
Clamp color available |
yellow, black, green, blue, orange |
|
Standard Accessories |
Test Lead, 9V(6F22)Battery, Instruction Manual
|
|
Item NO. |
YT-0827 new 7 functions AC DC voltage electrical multimeter |
Outer size |
140*68*30MM |
Weight/pcs |
140G(Including battery) |
Package |
Each one in single blister card, 5PCS/inner box, 60pcs/ctn |
N.W/CTN |
10kgs |
G.W/CTN |
12kgs |
Carton Size |
51*26*56cm |
MOQ |
120PCS in YINTE brand name, 600pcs in OEM brand name |
Sample time |
2-5days, depends on product style and shipping |
Sample fee |
free |
Freight charge |
paid by customer, prepaid |
Delivery time |
according to the order quantity |
Payment terms |
TT, Western union, PayPal, etc. |
1. We are a really factory and we has professional production line, the goods are produced by strictly supervision and inspection. The quality is absolutely assured. |
2. Answer to custoner's question witnin 48 hours |
3. We accept small quantity for trial order |
4. We can quote a best price |
5. We have a convenient traffic which is near to Ningbo Sea Port and Ningbo Airport |
Our factory
The Exhibition we attended
Our Team
The certificates we have, we also have GS cert for ordinary voltage tester pen
