Edgelight high power led module for lightbox new led module for advertising

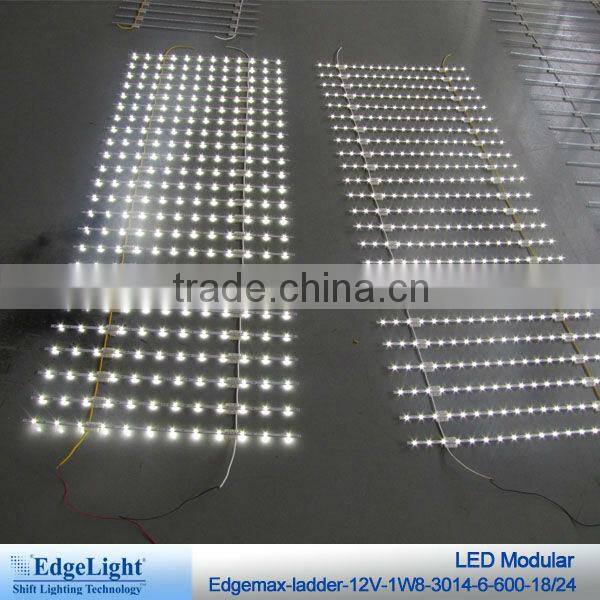

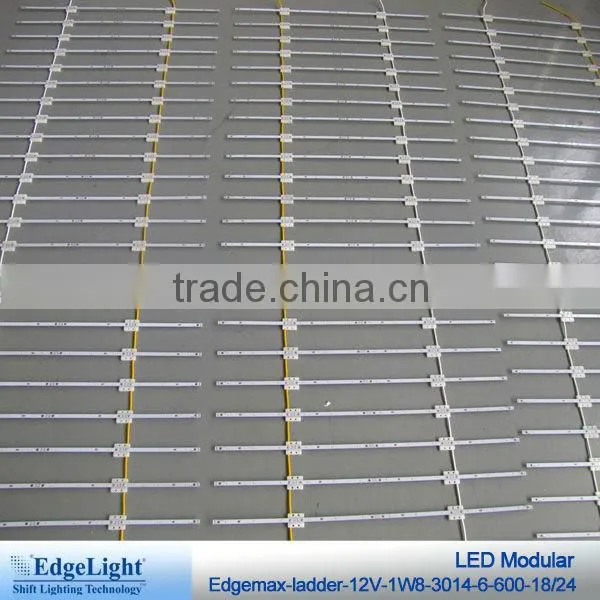

Edgemax-ladder-12v-1w8-3014-600-18(single) left
| Item | LED compound mode | Minimum truncation size | Lamp bead spacing | Limited current | Output power | Luminous flux | Input voltage | Color | Tc |
| Parameter | 3 Cascade 6 parallel | 100mm | 33.3mm | 150ma | 1.8W | 162LM | 12V | White | 5700K-6500K |
Edgemax-ladder-12v-1w8-3014-600-24 (Double) right
| Item | LED compound mode | Minimum truncation size | Lamp bead spacing | Limited current | Output power | Luminous flux | Input voltage | Color | Tc |
| Parameter | 3 Cascade 8 parallel | 150mm | 50mm | 200ma | 2.4W | 216LM | 12V | White | 5700K-6500K |
Features and technical parameters:
NO |
Item |
Units |
Parameter range |
1 |
working environment |
°C |
-20~50 30%-70% |
2 |
storage condition |
°C |
-20~70 30%-70% |
3 |
work frequency |
Hz |
--- |
4 |
limited voltage |
V |
DC12±0.5V |
5 |
limited current |
mA |
240±10% 432±10% |
6 |
output power |
W |
2.88W 3.84W |
7 |
luminous flux |
LM |
200ml 240ml |
Item |
Parameter |
LED compound mode |
3 Cascade 6parallel
3 Cascade 8parallel
|
Minimum truncation size |
100mm |
Lamp bead (center) spacing |
33.3mm |
LED Part No |
3014W |
LED Chip No |
--- |
LED Single lamp current |
40mA |
Input voltage |
12V |
Wavelengthλd(nm)Or Tc(k) |
5700K-6500K |
LED Color |
White |
LED lumen |
16LM |
Accessories

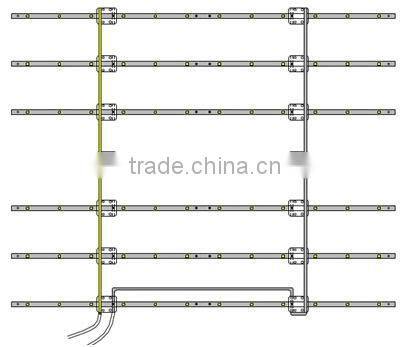

Connection mode

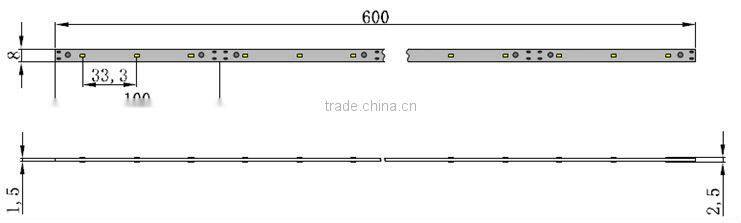

Dimension(mm)

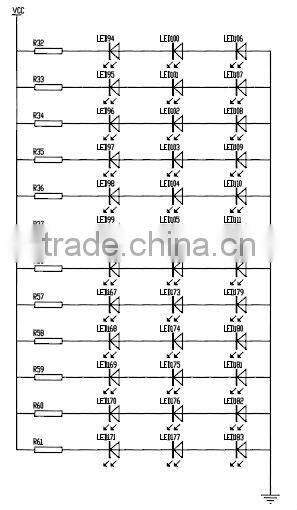

Schematic diagram
Applicable:
Suitable for color slim light boxes, back light source, LED lighting and decoration, etc.

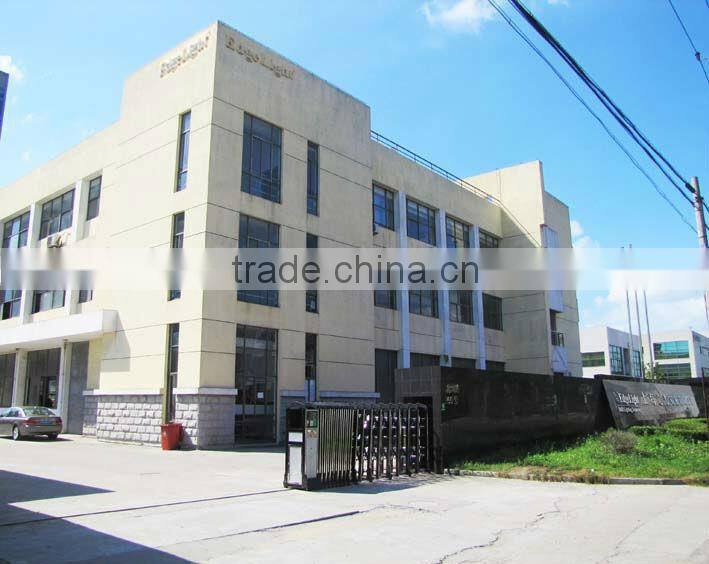

Our factory

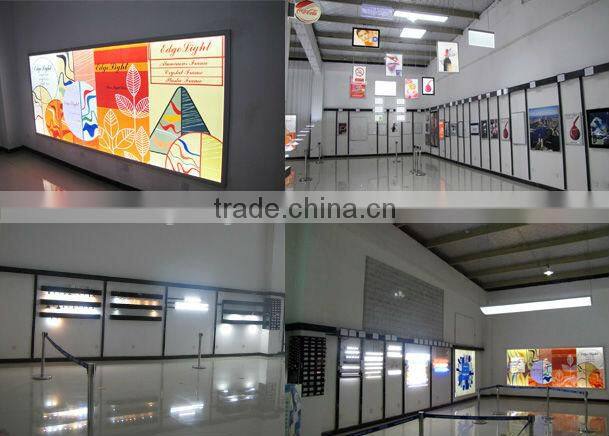

Our showroom:
