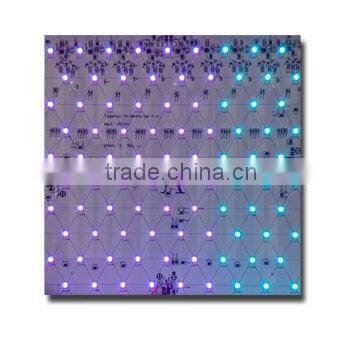

RGB 300mm*300mm Backlight Modular LED Decorative

RGB 300mm*300mm Backlight Modular LED Decorative thumbnail-1
RGB 300mm*300mm Backlight Modular LED Decorative photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
EdgeLight
Model Number:
Edgemax-RGB-Tri-Matrix-LM-1-A
Contact Supplier Request Quote Chat Now
Shanghai Edge Light Industry Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name EdgeLight
Model Number Edgemax-RGB-Tri-Matrix-LM-1-A
Usage Indoor
Tube Chip Color Full Color
Display Function Other, advertise or light
Screen Dimension 300*300mm

Specifications

1.Suitable for color slim light boxes,
2.back light source, LED lighting and decoration,
3,high luminous

Model: Edgemax-RGB-Tri-Matrix-LM-1-A



RGB 300mm*300mm backlight modular LED decorative

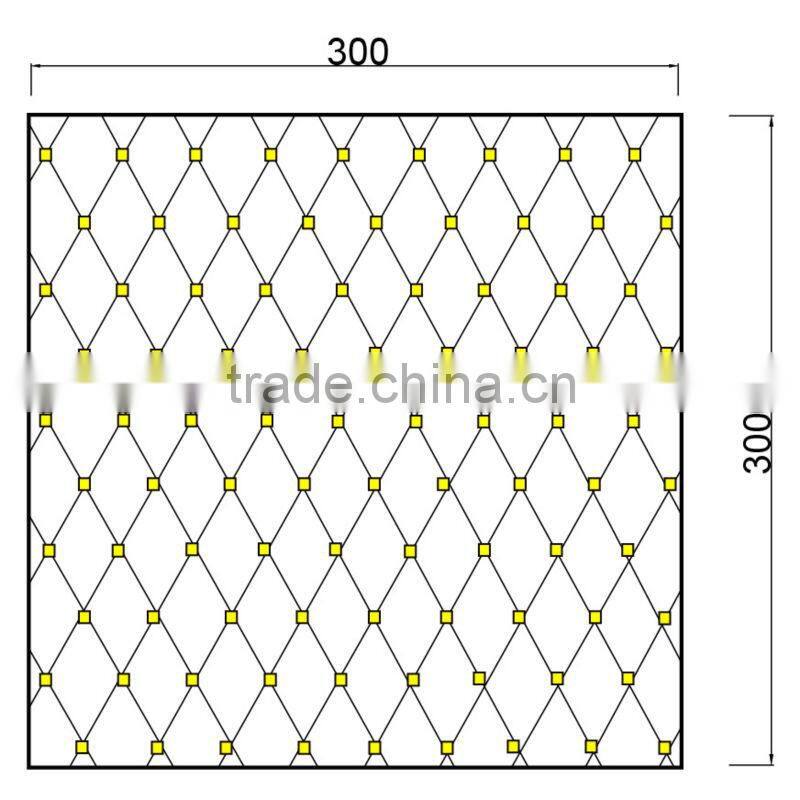

Dimension(mm)

RGB 300mm*300mm backlight modular LED decorative



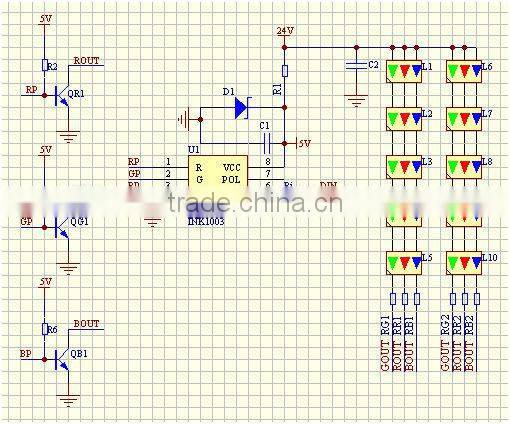

Schematic diagram

RGB 300mm*300mm backlight modular LED decorative





The above-mentioned feature is the single unit group circuit schematic diagram of RGB Modular. This series of RGB Modular are built up with totally 9 unit groups as shown in the schematic diagram. Signal is series connected ( DIN of one group’s No.6 foot be connected with DOUT of the next group’s No.5 foot).

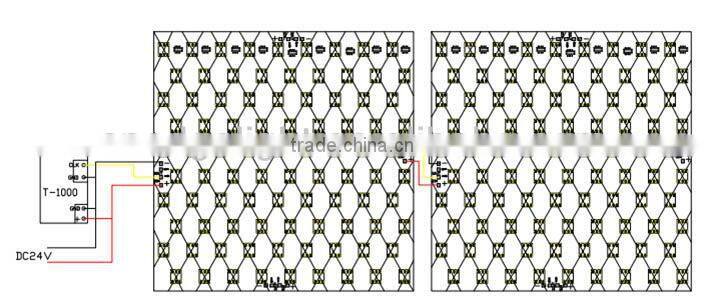

Connection mode



RGB 300mm*300mm backlight modular LED decorative



 Remark: Connect the CLK digital signal of T-1000 controller with the signal input end DIN of RGB Modulars. Modulars must be correctly connected with each other especially on the power supply.



The signal output end DOUT of one piece of Modular must be connected with DIN of the next piece.











Applicable scope





Suitable for color slim light boxes, back light source, LED lighting and decoration, etc.



Accessories





RGB 300mm*300mm backlight modular LED decorativeRGB 300mm*300mm backlight modular LED decorative



            Controller                                                                                              Pierced the terminal









NO

 Item

Units

 Parameter range

1

 working environment

°C

-20~50

30%-70%

2

 storage condition

°C

-20~70

30%-70%

3

 work frequency

Hz

---

4

 limited voltage

V

DC24±0.5V

5

 limited current

mA

1008±10%

6

 output power

W

25.9±10%

7

 luminous flux

LM

289.4±10%



 Item

 Parameter



LED compound mode



5 Cascade 18parallel

 LED Part No

B5050

 LED Chip No

---

 LED current

60mA

Wavelengthλd(nm)Or Tc(k)

------

 LED Color

 RGB

 LED lumen

R=300MCD   G=200MCD

             B=400MCD



* Each one cellular LED on the LED module with more than 30000 hours of long life



* Cellular LED module makes it easy to size and composition of any desired shape



* LED module manufacturing cellular material FR4(glass fibers),this special material than

   light, thin, high strength, thickness of only 1/16



* LED modules for celluar substantially reduced compared with traditional light box in

  transportation costs



Manufacturing and sale of Light Guide Plate (LGP) , Edgelux ® panel, , Slim Light Box, LED Lighting panel, LED Bulb, LED Spotlight , LED Strip ,Dynamic LED Slim sign, led light box led light box led light box

T8 LED Light Tube Tube ,Electronic Ballast, sensors and automatic control meter in the field of photoelectricity integration.

•Laser -doptting Method,above 6 years lifetime.LGP

•V-Cutting LGP,maximum size available

  up to 4000*2000mm

LASER-DOTTING

RGB 300mm*300mm backlight modular LED decorative

 V-CUTTING

RGB 300mm*300mm backlight modular LED decorative

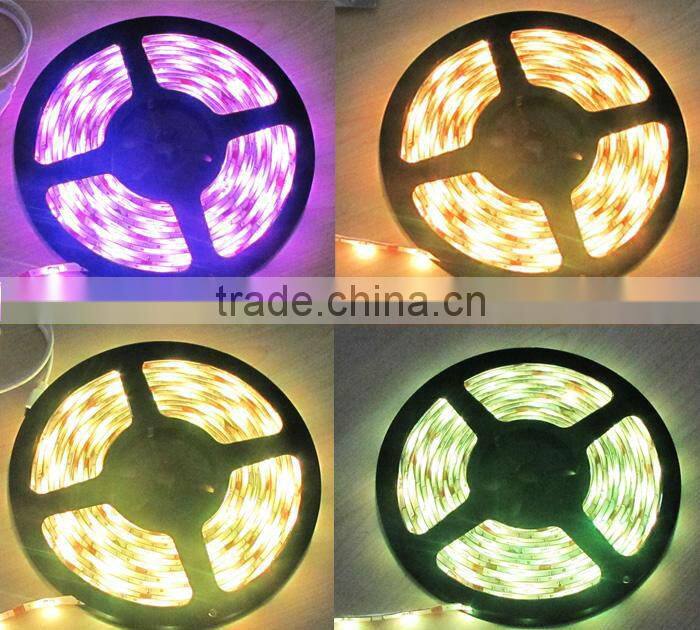

LED Strip

(LS-)Ordinary Plug-in LED

(WLS-)lampWater proof LED strip

(FLS)Flexible SMD LED Strips

(ALS-)Alumium Board SMD Light Bar

(WFS-)Waterproof Flexible SMD LED Strips

(PLS-)SMD LED Light Bar

Waterproof-Flexible--led-Strip -12V-3RGB10-5050T-5000-150



RGB 300mm*300mm backlight modular LED decorative

 our factory and showroom

RGB 300mm*300mm backlight modular LED decorative
