self-aligning ball bearing with high precision 2313 series bearing
(1) Self aligning ball bearing has two kinds of structures:cylindrical pore and tapered pore. Retainers are mainly made of steel sheet, synthetic resin,etc. Its feature is the outer ring raceway spherical surface and automatical adjusted, so it can compensate for the deviation caused by different axial angle. The relative gradient of inner and outer ring should not exceed 3 degree.
(2) It can bear radial load and small axial load at the same time. The axial displacement is limited within the clearance limitation and it can adjusted automatically. It allows inner and outer ring work under the circumstances of relative tilt. It suits for bearing seat hole which can not be strictly to ensure concentricity components.

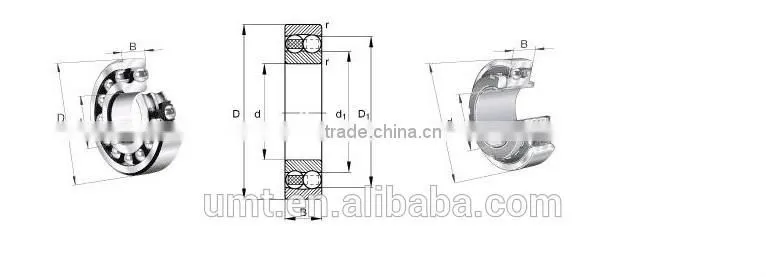

Non-standard ball bearing size:
Model |
Specifiction (d*D*B mm ) | Weight(kg) |
| 2309 | 45*100*36 | 1.200 |
| 1210 | 50*90*20 | 0.525 |
| 2210 | 50*90*23 | 0.564 |
| 1310 | 50*110*27 | 1.250 |
| 2310 | 50*110*40 | 1.580 |
| 1211 | 55*100*21 | 0.705 |
| 2211 | 55*100*25 | 0.746 |
| 1311 | 55*120*29 | 1.600 |
| 2311 | 55*120*43 | 2.030 |
| 1212 | 60*110*28 | 0.900 |
| 2212 | 60*110*28 | 1.030 |
| 2312 | 60*130*46 | 2.570 |
| 2213 | 65*120*31 | 1.400 |
| 1313 | 65*140*33 | 2.540 |
| 1214 | 70*125*24 | 1.30 |
| 1314 | 70*150*35 |
3.19 |
| 2214 | 70*125*31 | 1.52 |
| 1215 | 75*130*25 | 1.41 |
| 1315 | 75*160*37 | 3.65 |
| 2315 | 75*160*55 | 4.77 |
| 1316 | 80*170*26 | 4.31 |
| 2216 | 80*140*33 | 1.97 |
| 2316 | 80*170*58 | 5.54 |
| 1217 | 85*150*28 | 2.09 |
| 2317 | 85*180*60 |
6.56 |
| 1317 | 85*180*41 | 5.13 |
| 1218 | 90*160*30 | 2.55 |
| 1318 | 90*190*43 | 5.94 |
| 2318 | 90*190*64 | 7.76 |
| 1220 | 100*180*34 | 3.82 |
| 2220 | 100*180*46 | 4.53 |
| 1320 | 100*215*47 | 8.46 |
| ... | ... | ... |
Self-aligning Ball Bearing Description
| Strusture | Self-aligning ball |
| Type | ball bearing |
| Bore size | 100mm |
| Outside Diameter | 180mm |
| Weight | 4.53kg |
| Breadth | 46mm |
| Model number | 2220 |
| Precision | P0-P6 |
| Seals type | open |
| Clearance | C0,C2,C3,C4,C5 |
| Vabration | Z1,Z2,Z3,Z4 |
| Number row | double row |
| Application | Home appliances, low noise and high speed electric motors, automotive components, pumps, machinery. |

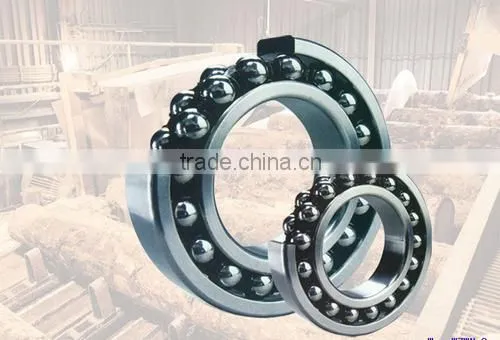

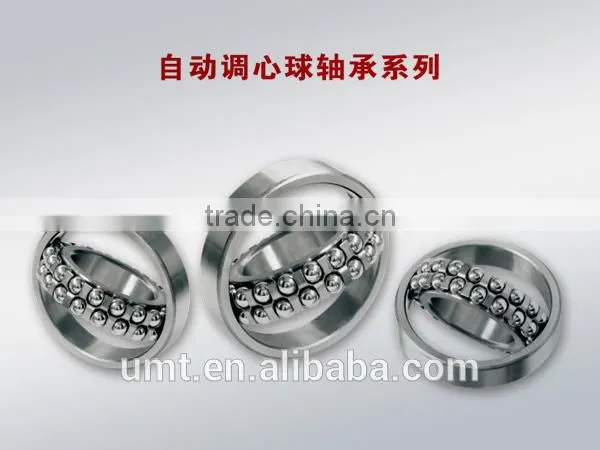

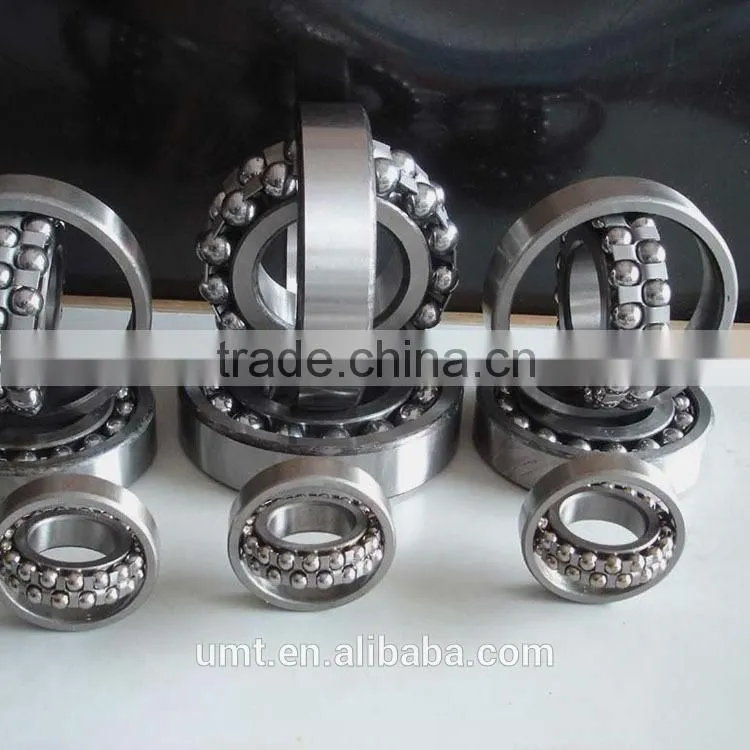

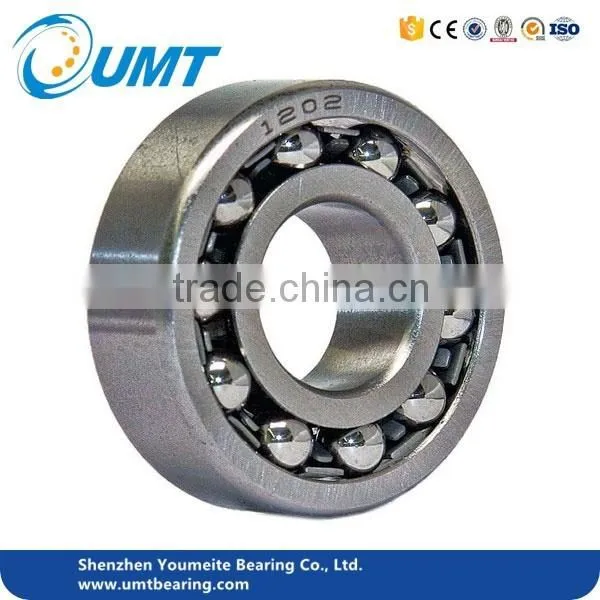

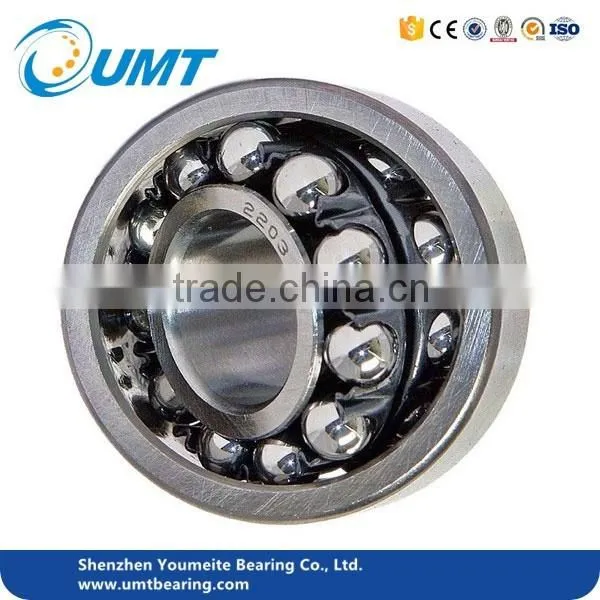

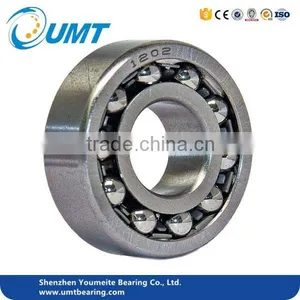

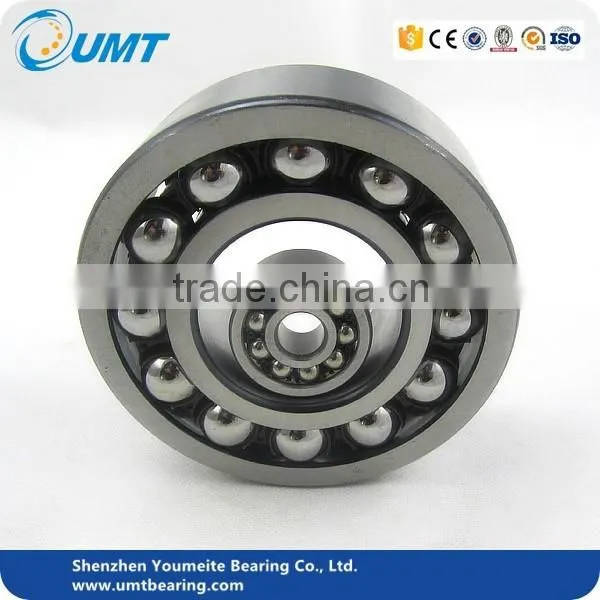

Self-aligning Ball Bearing Picture

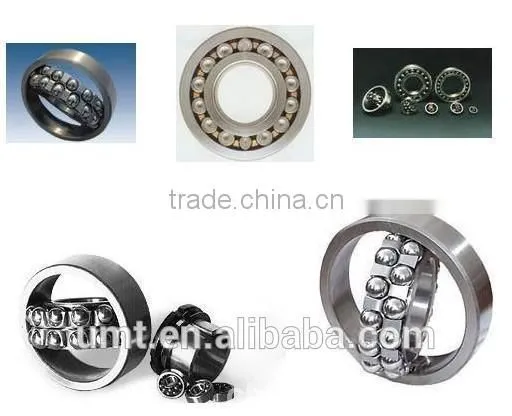

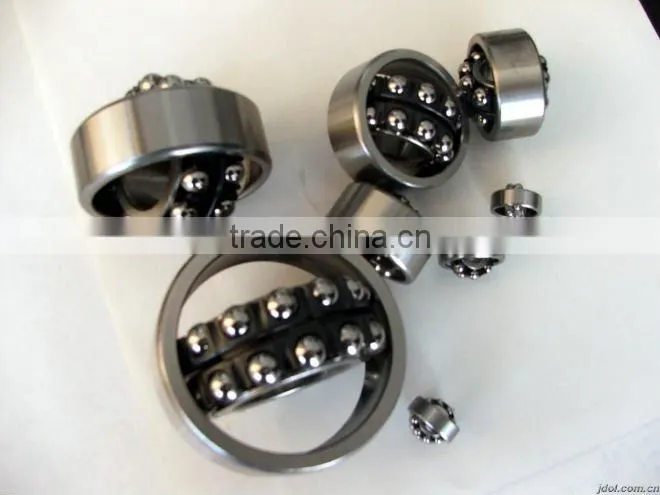

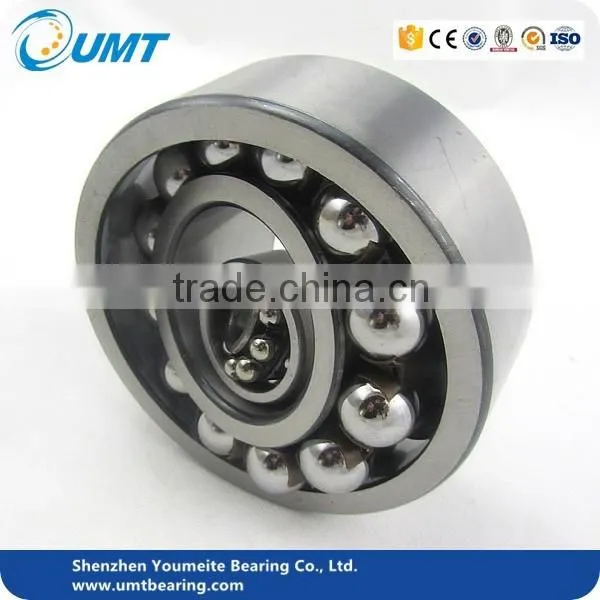

Non-standar self-aligning ball bearings :
Trading Information
|
Price terms |
EXW, FOB, CIF, CFR |
|
Payment terms |
T/T,L/C,Western Union, Paypal, Money gram |
Express way |
DHL, FEDEX ,TNT |
|
Shipping port |
shanghai,qingdao, guangzhou,shenzhen |
Packing |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pal |

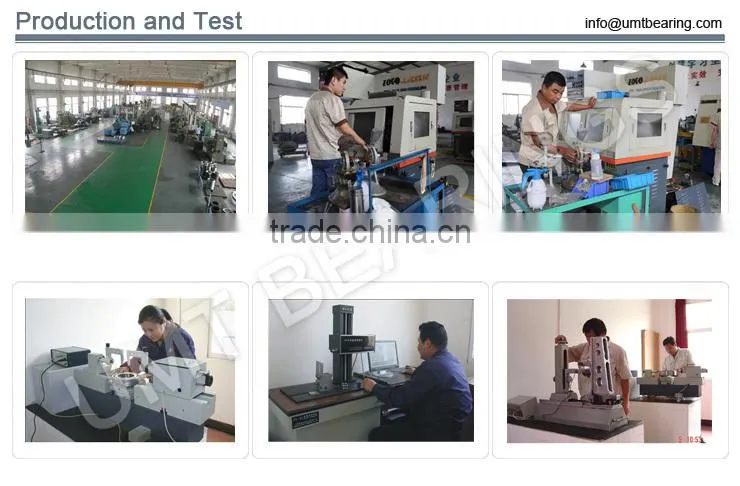

OUR FACTORY
