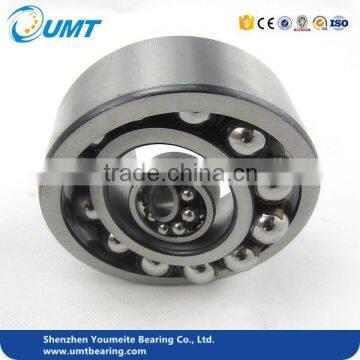

Self-aligning ball bearing
Self-aligning ball bearing has two rows of steel balls, a inner ring that has two raceways and a outer raceway in the inner spherical shape, and is provided with the function of self-aligning. The bearing can automatically compensate the concentricity error caused by the shaft deflection and housing deformation, thus suitable to the applications where the bearing seat hole can not guarantee strict concentricity. so it can still works as long as the relevant gradient between the center line of the inner ring and the same of the outer ring is within the range of 1 ° to 2.5 ° when the shaft is bent or tilted under pressure. There are two types of self-aligning ball bearings, i.e., cylindrical bore and tapered bore bearings. The taper ratio of tapered bore bearings is 1:1 or 1:30.
Self-aligning ball bearings are mainly used to carry heavy loads and impact loads, and apply to industries such as mining, petroleum, paper making, cement, sugar pressing, etc. and general machinery including precision instruments, low-noise motors, automobiles, motorcycles, rolling mills, etc.
| Model Number | 2211 |
| Structure | Self-aligning |
| Type | Ball |
| Brand Name | UMT,OEM,Brand bearing |
| Seals Type | OPEN |
| Number of Row | Double row |
| Material | Chrome steel, Stainless steel, Carbon steel |
| Cage | Brass, Steel, Nylon |
| Vibration Level | V1, V2, V3 |
| Clearance | C0, C1, C2, C3, C4, C5 etc. |
| Precision Rating | P0, P6, P5, P4, P2 |
| Hardness | 59-63HRC |
| Service | OEM&ODM both available |
| Sample available | Yes |
| Manufacturer | Yes |
| Quality guaranteed | Yes |
| Certificate | ISO9001:2008, ISO/TS16949 |
| Application/Function | Automotive, Truck, Tractors, Construction machinery, Electric Tools, Sports Apparatus, Office equipment, Medical devices |
| Other Service | Design service, Buyer label service |
| Packaging Details | Industrial Packing, Individual Boxed Packing, or OEM |
| Delivery Detail | 2-7 days after receiving the payments or deposit |
| Basic Bearing No. | Main Dimension | Load rating / KN | maximum speed | Weight approximate kg | ||||||
| cylindrical bore | tapered bore | d mm | D mm | B mm | r min mm | Dynamic C | Static C0 | Grease r/min | Oil r/min | |
| 1200 | 10 | 30 | 9 | 0.6 | 5.55 | 1.19 | 22000 | 28000 | 0.033 | |
| 1201 | 12 | 32 | 10 | 0.6 | 5.70 | 1.27 | 22000 | 26000 | 0.039 | |
| 1202 | 15 | 35 | 11 | 0.6 | 7.60 | 1.75 | 18000 | 22000 | 0.051 | |
| 1203 | 17 | 40 | 12 | 0.6 | 8.00 | 2.01 | 16000 | 20000 | 0.072 | |
| 1204 | 1204K | 20 | 47 | 14 | 1.0 | 10.0 | 2.61 | 14000 | 17000 | 0.120 |
| 1205 | 1205K | 25 | 52 | 15 | 1.0 | 12.2 | 3.30 | 12000 | 14000 | 0.140 |
| 1206 | 1206K | 30 | 62 | 16 | 1.0 | 15.8 | 4.65 | 10000 | 12000 | 0.220 |
| 1207 | 1207K | 35 | 72 | 17 | 1.1 | 15.9 | 5.10 | 8500 | 10000 | 0.320 |
| 1208 | 1208K | 40 | 80 | 18 | 1.1 | 19.3 | 6.50 | 7500 | 9000 | 0.415 |
| 1209 | 1209K | 45 | 85 | 19 | 1.1 | 22.0 | 7.35 | 7100 | 8500 | 0.465 |
| 1210 | 1210K | 50 | 90 | 20 | 1.1 | 22.8 | 8.10 | 6300 | 8000 | 0.525 |
| 1211 | 1211K | 55 | 100 | 21 | 1.5 | 26.9 | 10.0 | 6000 | 7100 | 0.705 |
| 1212 | 1212K | 60 | 110 | 22 | 1.5 | 30.5 | 11.5 | 5300 | 6300 | 0.900 |
| 1213 | 1213K | 65 | 120 | 23 | 1.5 | 31.0 | 12.5 | 4800 | 6000 | 1.150 |
| 1214 | 1214K | 70 | 125 | 24 | 1.5 | 35.0 | 13.8 | 4800 | 5600 | 1.300 |
| 1215 | 1215K | 75 | 130 | 25 | 1.5 | 39.0 | 15.7 | 4300 | 5300 | 1.410 |
| 1216 | 1216K | 80 | 140 | 26 | 2.0 | 40.0 | 17.0 | 4000 | 5000 | 1.730 |
| 1217 | 1217K | 85 | 150 | 28 | 2.0 | 49.5 | 20.8 | 3800 | 4500 | 2.090 |
| 1218 | 1218K | 90 | 160 | 30 | 2.0 | 57.5 | 23.5 | 3600 | 4300 | 2.550 |
| 1219 | 1219K | 95 | 170 | 32 | 2.1 | 64.0 | 27.1 | 3400 | 4000 | 3.210 |
| 1220 | 1220K | 100 | 180 | 34 | 2.1 | 69.5 | 29.7 | 3200 | 3800 | 3.820 |
| 1221 | 1221K | 105 | 190 | 36 | 2.1 | 75.0 | 32.5 | 3000 | 3600 | 4.520 |
| 1222 | 1222K | 110 | 200 | 38 | 2.1 | 87.0 | 38.5 | 2800 | 3400 | 5.330 |
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearing corporation responsible for oversea marketing. Our plant shandong UMT has been working in the filed of bearing design and manufacturing for more than 10years now is taking a leading position in mainland china. Our plant has more than 500 employees , including 30 bearing professional techincians; more than 600 new bearing items can be completed each year. we can produce all kinds of bearing as customer's requirement.
| Company: | Shenzhen Youmeite Bearings Co., Ltd |
| Name: | CANDY AO |
| Web: | |
| Tel: | 0086-755-28139711 |
| Fax: | 0086-755-28142811 |
| Mobile | 0086-18823379120 |
| Skype | candy_umt |
| Email: | sales005(at) |
ep gr
1. Q: Manufacturer or Trading company:
A:We (Shenzhen Youmeite Bearing Co., Ltd) has our own factory to produce goods for you.
2. Q: Material/ quality?
A: Chrom steel, carbon steel, ceramic bearings, ISO9001:2008 certificate to ensure qualtity.
3. Q: about samples:
A: Samples is free offered except large bearings, shipping cost shoud be paid by buyer, the shipping cost will be refund after order comfirmed.
4. Q: Brand and services?
A: Neutral brand, OEM service, OEM any brand as customer's requirements. For the branded bearings, please note we are Authorised Distributors for South China, if you have any doubts, please contact us freely.
5. Q: Capacity for supply goods?
A: about 2-15 days can delivery your goods after received your deposit or payment.
6. Q: Package and shipping?
A: 1: 1pc/plastic bag + color box + carton + plywood pallets.
2: barreled package+outer carton+pallets 3: single box+outer carton+pallets 4:
tube package+middle box+outer carton+pallets 5: According to your requirement.
7. Q: Payment?
A: 1:T/T:30% as deposit and 70% balance after get copy of B/L.
2:L/C (cannot for branded bearings.)
3:Western Union
4:Paypal
5:Discuss together between buyer and supplier.
