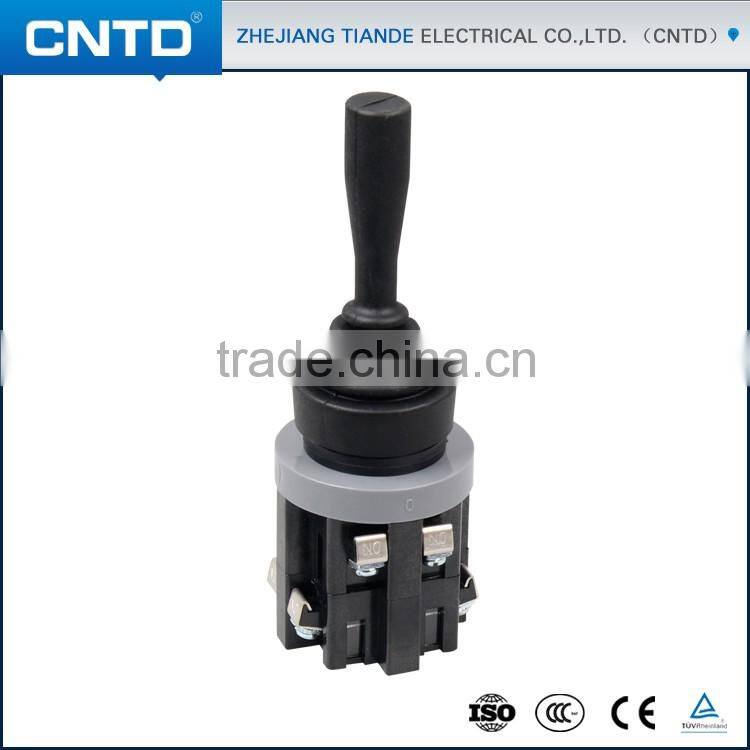

CNTD Bulk Items Seal Round Spring Return Monolever Joystick Switch Cross Button Switch Quality Choice
CNTD Bulk Items Seal Round Spring Return Monolever Joystick Switch Cross Button Switch
Features
- You can handle the lever in four directions upward,rightward,downward and leftward smoothly&swiftly
- Three alternatives of movement are attainable in each direction:Stay put,spring return and blockade-enforcing
- You are free to operate in four,three or two directions with the switch as you like
- Rubber bushing is waterproof,oil-resistant and dustpreventive
You are here:Home>> Joystick Switch >>Electric Cross Joystick Switch
Ratings| AC | Rated voltage | 110V | 220V | 440V | |
| Rated current | 10A | 6A | 3A | ||
| Breaking current capacity | 50A | 30A | 10A | ||
| DC | Resistance Load | Rated voltage | 110V | 220V | 600V |
| Rated current | 2.2A | 1.1A | 0.4A | ||
| Breaking Current | 2.42A | 1.21A | 0.44A | ||
| Inductive Load | Rated current | 1.2A | 0.45A | 0.2A | |
| Breaking Current | 1.32A | 0.5A | 0.22A | ||
Product characteristics
| Model No. | CMRN-302 |
| Name | Electric Cross Joystick Switch |
| Type | Round/Square/Seal Round/Seal Square |
| Mounting diameter | Φ30m/m |
| Contact | Sliver contact |
| No.of contact Blocks fitted | 1-4 |
Actuating keys | Stay put or spring return or blockade-enforcing |
Type of contact blocks fitted | None 1NO 2NO 1NC 2NC 1NO-1NC |
| Mechanical life | ≥1,000,000 |
| Degree of protection | IP65/IP40 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | CE/CCC/EN60947-5-1 approved standard |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |

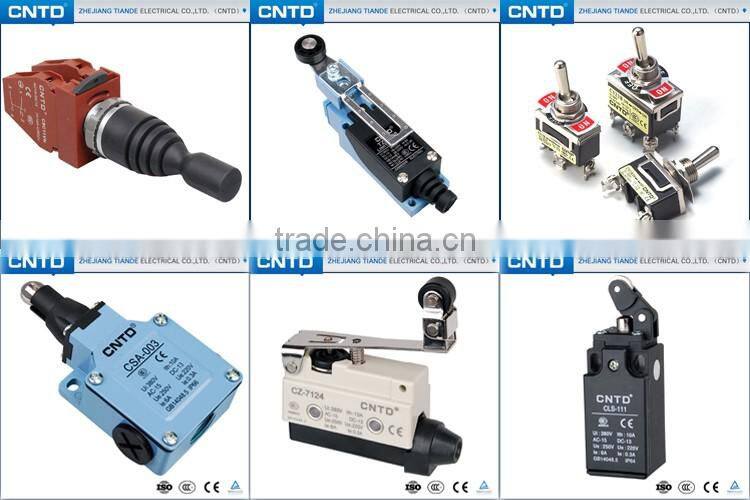

Related Products

Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.
1.Thousands of products in stock and ready to ship
2.The most competitive pricing
3.Express,air shipment and sea shipment as per customers' request
4.Putting the customer's needs first,always
5.On call,24 hours a day,7 days a week
Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.
With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
