Home > Electrical & Electronics > Switch > Limit Switch > CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

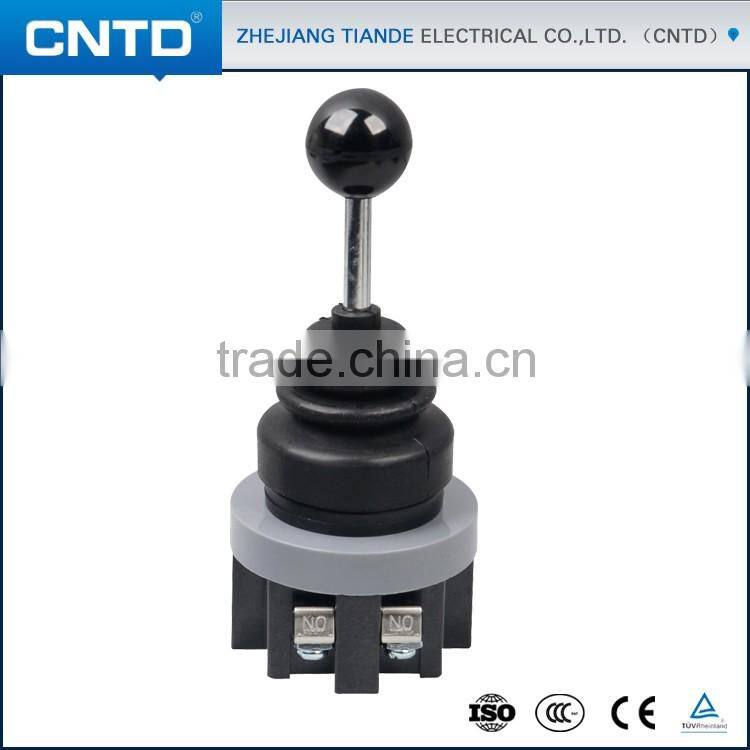

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1 photo-1
CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1 photo-2
CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1 photo-3
CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1 photo-4
US$ 3 - 5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CNTD
Model Number:
CMR-301-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name CNTD
Model Number CMR-301-1
Protection Level IP65/IP40
Operating Temperature -10~+70C (with no icing)
Max. Current 10A
Max. Voltage 380V

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1



Product Details

Features

 1.diameter: 30mm

 2.operation: momentary/ self-locking

 3.position: 2 directions

 ntact: 2NO



Product Description

Product characteristics



Model No. CMR-301
NameElectric Cross Joystick Switch
TypeRound/Square/Seal Round/Seal Square
Mounting diameterΦ30m/m
ContactSliver contact
No.of contact Blocks fitted1-4

Actuating keys

Stay put or spring return or blockade-enforcing

Type of contact blocks fitted

None 1NO 2NO 1NC 2NC 1NO-1NC

Mechanical life

≥1,000,000

Degree of protectionIP65/IP40
Payment term30% deposit in advance,70% before shipment,100% T/T in advance
CertificateCE/CCC/EN60947-5-1 approved standard
Logo      Customized logo with Decal / Frosted / Print are available as request

Design ability

We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

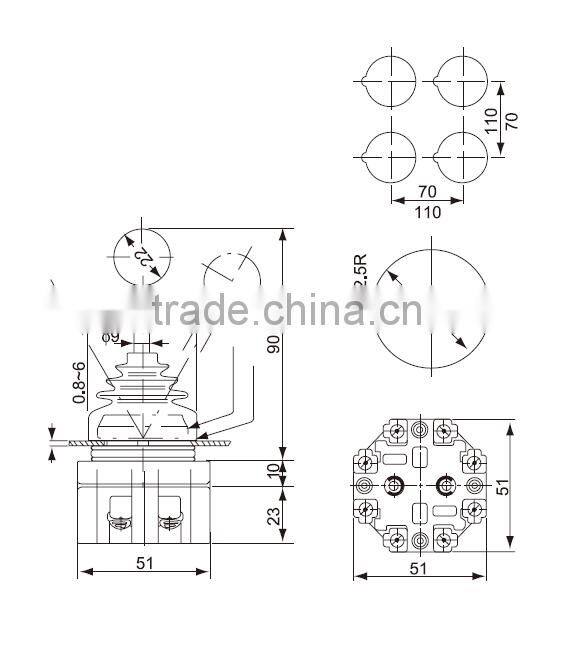

Appearance and Dimension

                                                      CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

               CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

You are here:Home>> Joystick switch >>  >>Electric Cross Joystick Switch

Certifications

      Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

Our Services

    Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

Production Flow

      Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

Packaging&Shipping

1.Thousands of products in stock and ready to ship

2.The most competitive pricing

3.Express,air shipment and sea shipment as per customers' request

4.Putting the customer's needs first,always

5.On call,24 hours a day,7 days a week

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

Company Information

      Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.

    With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

CNTD SPST 2NO 2 Position Stay Put Type Monolever Switch Joystick Switch CMR-301-1

FAQ

1. Q:  Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.
2. Q:  How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.

4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.

7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.



 Over 15 years OEM experience, we can provide professional solutions for customers.
