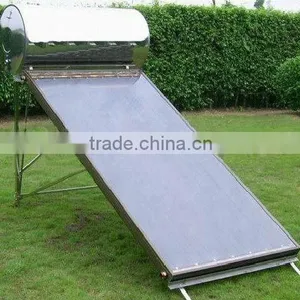

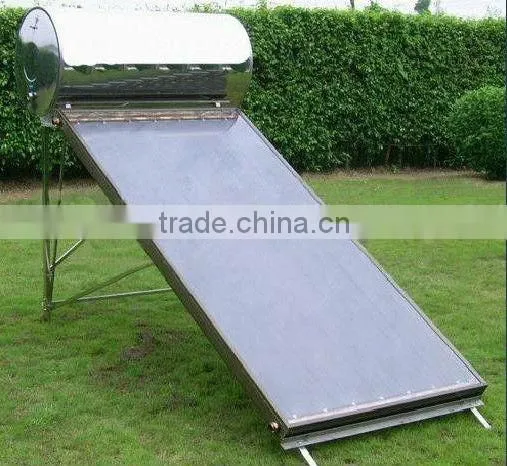

solar panel system

Specifications

solar panel system,solar flat plate,flat panels solar collectors,pressurized solar flat panel,flat panel solar water heate

solar panel system



Size(LxWxH mm)	2000x1000x70/80/90(mm)
Total area of collector	2 M2
Daylighting area	1.85 M2
Absorbing area	1.85 M2
Material of cover glass/ thickness(mm)	float glass/toughened glass/low-iron ultra white tempered patterned glass/4.0mm
Absorbancy	≥92%
Pipe port material /size	complete copper / Φ25x950mm
Pipe material/size	complete copper / Φ10x1950mm
Number of riser pipe	7 / 8 / 9bars
Absorber fin/thickness(mm)	copper/aluminum(0.15-0.5mm)
Operation pressure	1.0 Mpa
Test pressure	1.6 Mpa
Insulation materials /thickness	high-density fiberglass board/3050mm
Back sheet	0.3mm galvanized steel plate or 0.5mm embossed alumimum plate
Material of frame / thickness	Anodized aluminium alloy(silver and black color) / 70/80/90mm
Material of bracket	stainless steel/galvanized steel/aluminium alloy
Working temperature	-34≤T≤200

Inner tank material:SUS304-2B stainless steel 0.5-0.6mm thickness,food grade,innocuity.
Outer tank material:galvanized steel 0.33-0.55mm thickness,antirust.

Insulation layer between inner and outer tank:High density polyurethane foaming,50-65mm thickness.

Water tank capacity:170L

Bracket material:galvanized steel,1.2-1.5mm thickness.

The glistening obliquity:45 degree

Hail resistance:25mm.

Wind stress:180km/h

Heat preservation:72-96Hours.
