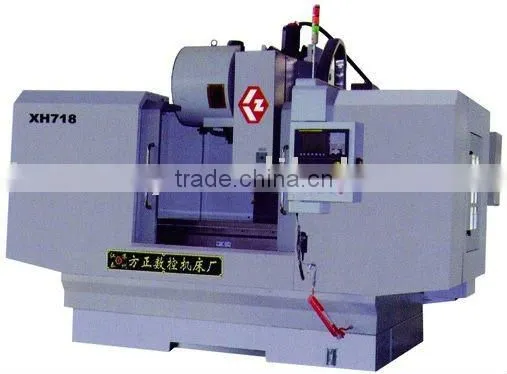

CNC milling machine
Main technical specification of XK series cnc milling machine and XH series machine center:
items |
units |
XK715 |
X axis travel |
mm |
800 |
Y axis travel |
mm |
500 |
Z axis travel |
mm |
500 |
Travel between spindle nose to worktable |
mm |
105*650 |
Travel between spindle centre to worktable |
mm |
550 |
Length of work table |
mm |
1050*520 |
Max. loading capacity |
kg |
600 |
Table T-solt |
mm |
3-18 |
Spindle taper |
BT |
40 |
Spindle speeds |
r/min |
60-8000 |
Power of motor (spindle) |
kw |
5.5/7.5 |
Power of motor(three axises) |
kw |
1.5 |
Max. moving speed of X |
m/min |
12 |
Max. moving speed of Y |
m/min |
12 |
Max. moving speed of Z |
m/min |
12 |
Style of handle |
-- |
40 |
CNC system |
-- |
MITSUBISHI,FANUC.SIEMENS |
Position accuracy |
mm |
0.01/500 |
Repeatability position accuracy |
mm |
0.005 |
Net weight |
kg |
5000 |
Pressure requirement |
Kg/cm² |
6 |
Power supply |
kg |
15 |
Machine dimension |
mm |
2600*2200*2800 |
