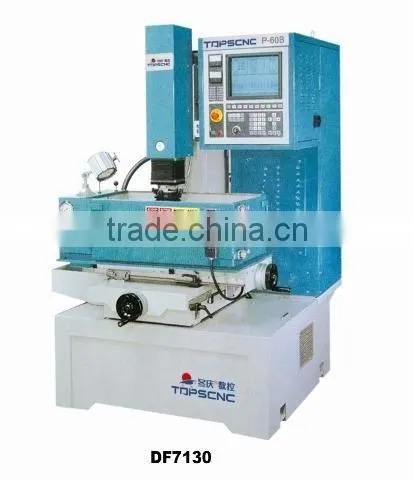

Spark Electric Discharge Machine:
Specification |
DK/DF7130 |
DK/DF7140 |
DK/DF7150 |
DK/DF7160 |
Working table |
600*300mm |
700*400mm |
800*480mm |
1000*600mm |
Working groove |
600*500*300mm |
1120*620*420mm |
1290*770*500mm |
1700*1000*620mm |
X travel |
300mm |
400mm |
500mm |
600mm |
Y travel |
200mm |
300mm |
400mm |
500mm |
Z travel |
200mm |
200mm |
250mm |
250mm |
Head Travel |
200mm(motor) |
200mm(motor) |
300mm(motor) |
300mm(motor) |
Max.electrode weight |
60kg |
70kg |
200kg |
200kg |
piece weight |
500kg |
750kg |
1500kg |
2250kg |
Processing fluid container |
280L |
300L |
470L |
940L |
Overall dimensions |
1360*1430*2100mm |
1400*1200*2050mm |
1530*1850*2250mm |
2150*1800*2400mm |
Machine weight |
1300kg |
1650kg |
3200kg |
3600kg
|
Cabinet specification:
Specification |
P30A/930B |
P60A/P60B |
P90A/P90B |
P120A/P120B |
Max,working current |
30A |
60A |
90A |
120A |
Max,power consumption |
2kVA |
4kVA |
6KVA |
9kVA |
cessing speed |
200mm³/minute |
400mm³/minute |
600mm³/minute |
800mm³/minute |
Min.electrode consumption |
0.3% |
0.3% |
0.3% |
0.3% |
Min.surface roughness |
Ra≤0.3μm |
Ra≤0.3μm |
Ra≤0.3μm |
Ra≤0.3μm |
Overall dimensions |
700*800*1800mm |
700*800*1800mm |
700*800*1800mm |
700*800*1800mm |
Weight |
190kg |
210kg |
230kg |
230kg |
