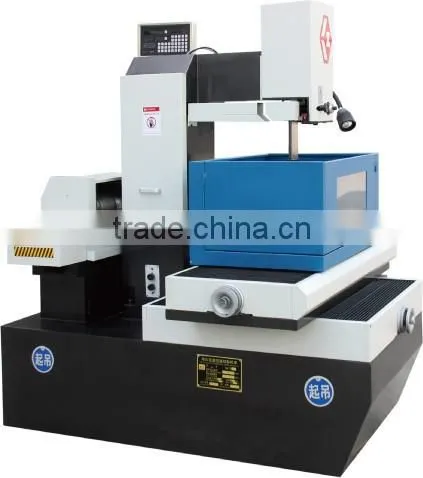

middle Speed CNC Wire Cut Machine
1.Big column,T type of machine construction with rigidity and big weight support.
2.High precision linear balling guide way and screw.
3.Patent four bars joint technology realize the any side surface big taper cut.
4.Big thickness work piece cut,electric discharge stable and evenly.
5.Special designed repeatable cut device to ensure the high roughness.
6.Adopt high quality industrial control computer.
7.X,Y axis adopt imported drive system.
8.Pulse discharge keeps 0.01mm to ensure the cutting accuracy.
9.With function of short circuit retreat,power off memory,wire broken protection,wire straightening and automatic centering.
10.CAD/CAM(CAXA)automatic programming to adopt ISO code and 3B code.
11.RS232,USB or LAN interface.
| Worktable dimension(mm)950×600 | X,Y travel(mm) 700×500 |
| Max thickness(mm) 500 | Max taper cut TA:20o TB:30o TC:30o |
| Max weight of work piece(kg) 1500 | Wire speed(m/sec) 1.7-11.8 |
| Pulse(mm) 0.001 | Cutting accuracy(mm) ≤0.015 |
| Best roughness(μm) Ra≤2.5(1.6) | Max cutting speed h=60mm(mm2/min) ≥120 |
| Axes controlled 4 Axes (X,Y,U,V) | Dimension of control cabinet(mm) 560×650 |
| Machine dimension(mm) 1930×1711×2000 | Overall weight(kg) 3000 |
