Specifications

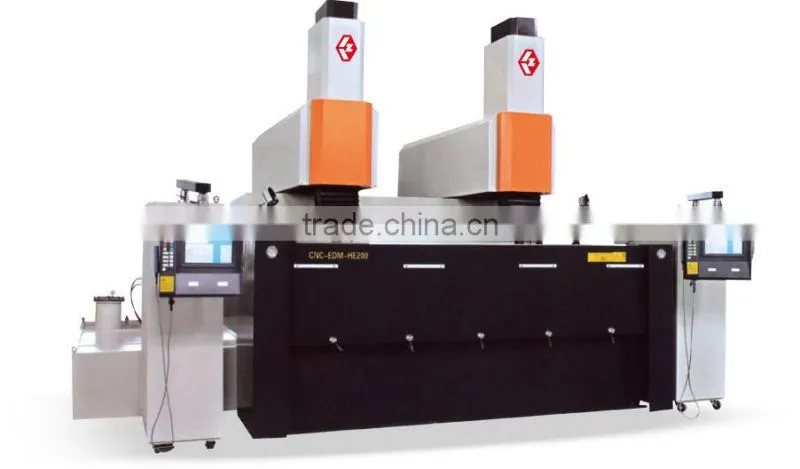

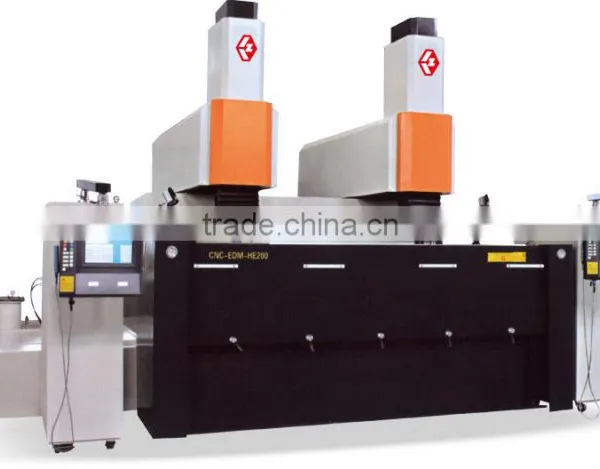

CNC1680 spark erosion machine
High precision spark erosion machine
Double machining head
High efficiency
Three-Axis
All axis are driven by servo motor
high precision spark erosion machine -Features:
1.Compact design for small part machining
2.Rigid machine base
3.Linear scales in all axes to ensure constant precision
4.Separate dielectric reservoir.
5.Low-maintenance and high efficiency.
6.DC servo-drive for precise control and system stability
7.Anti-carbon automatically detection circuit.
8.Easy-to-learn operation.
9.Direct parameter input and adjustment at the control panel.
10.Translating between Chinese and English, metric and imperial.
11.Machining parameters for specific operations can be stored.
12.Fire prevention and liquid level control automatically.
13.Different discharge system as optional.
14.Conform to the CE safety standard of power box.
Model |
CNC1680 |
CNC1880 |
CNC2110 |
(single/double) |
(single/double)) |
(single/double) |
|
Working groove interal size (mm) |
2250×1500×560 |
3000×1500×650 |
3500×1800×650 |
Stroke(X/Y/Z)(mm)(single head) |
1600×800×500 |
1800×800×600 |
2300×900×600 |
1100×800×500 |
1200×800×600 |
1450×900×600 |
|
Working table size(mm) |
1700×1000 |
2000×1000 |
2500×1200 |
Spindle discetion point |
650-1150 |
600-1200 |
650-1250 |
Max.electrode weight(kg) |
400 |
400 |
450 |
piece weight(kg) |
6000 |
6500 |
8000 |
weight(kg) |
Single9000/ |
Single13000/ |
Single15000/ |
Double12000 |
Double15000 |
Double17000 |
