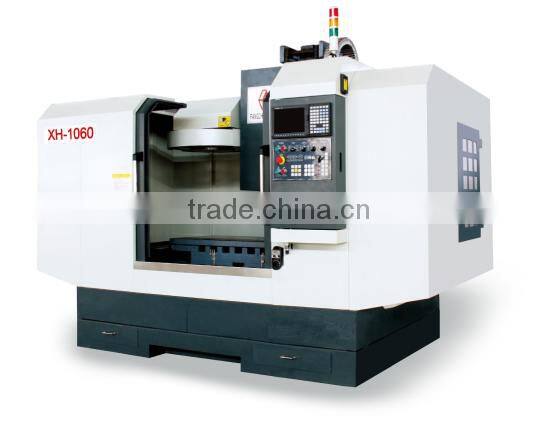

CNC Vertical Machine Center,CNC Milling Machine
- NING BO
- T/T
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Zhejiang, China | Brand Name | amasun | |
| Model Number | XH1060 | Voltage | 380V | |
| Power(W) | 25kw | Dimension(L*W*H) | 3300x2700x2800mm | |
| Weight | 7500kg | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Vertical cnc machine center for sale
Extra-wide configuration
Robust construction
Linear guide system
vertical cnc machine center -Features:
1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.
2.Linear guide system for rapid feeds up to 8 m/min.
3.High-precision preloaded ball screws on all 3 axes.4 and 5axes are optional.
4.Dual-arm 16 to24-station tool changer for quick and precise tool changes (as Optional).
5.Chip conveyor and purge system for optimum chip removal.
6.Easy accessibility of work table for easy setup and tooling
7.Enclosed work space ensures safe and contamination-free work.
8.Different Operating system as optional: Siemens, Fanuc, Mitsubishi.
vertical cnc machine center -Specification
Model | 850 | 1060 | 1360 |
Stroke ( X Axle) (mm) | 800 | 1000 | 1300 |
Stroke ( Y Axle)(mm) | 500 | 600 | 600 |
Stroke ( Z Axle)(mm) | 500 | 600 | 600 |
Diatance between working table and Main spindle(mm) | 180-680 | 215-815 | 215-815 |
Distance beween spindle and Verical Guideway(mm) | 550 | 640 | 640 |
Working table size(mm) | 1050×520 | 1300×600 | 1500×600 |
Max. load on table(kg) | 600 | 1000 | 1000 |
Slot on working table(No.-size*diatance)(mm) | 3-18*150 | 5-18*120 | 5-18*120 |
Spindle Taper hole on main axle(model/size) | BT40/150 | BT40/150 | BT40/150 |
BT50/155 | |||
Spindle speed(r/min) | 60-8000 | 60-8000 | 60-8000/6000 |
Spindle motor power (kw) | 5.5-7.5 | 7.5-11 | 7.5-11 |
Axis motor power on x/y/z(kw) | 2 | 3 | 3.5 |
Max. travel speed on axle X(mm/min) | 8000 | 8000 | 8000 |
Max. travel speed on axle Y(mm/min) | 8000 | 8000 | 8000 |
Max. travel speed on axle Z(mm/min) | 8000 | 8000 | 8000 |
Max.cutting feed rate(mm/min) | 6000 | 6000 | 6000 |
Tool handle | BT40 | BT40/BT50 | BT40/BT50 |
CNC system | MITSUBISHI/FANUC/SIEMENS | ||
