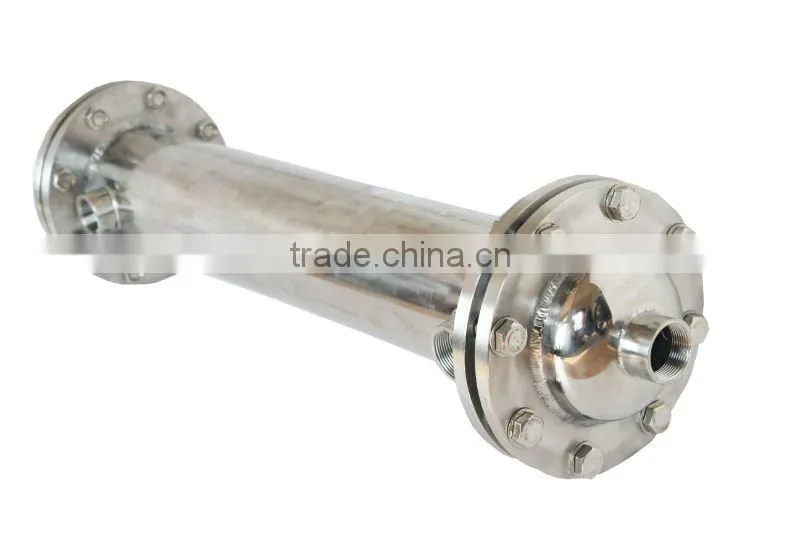

CE Approved Titanium Marine Heat Exchanger

CE Approved Titanium Marine Heat Exchanger thumbnail-1
CE Approved Titanium Marine Heat Exchanger photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
AB
Contact Supplier Request Quote Chat Now
Linan Beta Mechanical & Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name AB
Model Number FC140Ti
Structure Tube Heat Exchanger
Liquid Flow Rate 120L/min
Maximum Working Pressure 3.0MP
Voltage 220,380v
Weight 3.7kgs
Dimension(L*W*H) 636*108*130mm
Power(W) 75kW
Certification CE, UL, Other, CE, UL, ISO
Warranty 1 year
After-sales Service Provided Overseas service center available

Specifications

Our Marine Hydraulic Oil Cooler enhanced heating transfer efficiency for hydraulic oil cooling with big flow,low pressure loss.


Product Description
We produce series of heat exchangers and oil coolers, including the following coolers

Engine & transmission oil cooler
Hydraulic oil cooler
Charged air to water intercooler
DC heat exchanger
Marine heat exchanger
Fuel cooler
After cooler

Features of Marine Oil Cooler:
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hydraulic oil and any cold water circuit, besides other applications.
Advantages of Marine Oil Cooler:
High heating efficiency for oil heating or cooling, big flow volume, compactable, easy installation and durable.
Material: All titanium
Max design temperature:208°C
Max. working pressure:1.3Mpa
Heat Transfer area:1.983 square meter
CE Approved Titanium Marine Heat exchanger
Heat Exchangers Performance of Marine Oil Coolers:
Model Heat Transfer Area(m2) Engine Weight
KW HP kgs
DC 50Ti 0.088 30 40 1.02
DC 60Ti 0.111 40 54 1.10
DC 90Ti 0.161 60 80 1.26
DC 120Ti 0.216 80 107 1.44
EC 80Ti 0.267 60 80 2.42
EC100Ti 0.379 90 120 2.86
EC120Ti 0.492 120 160 3.21
EC140Ti 0.620 150 200 3.62
EC160Ti 0.787 180 240 4.18
FC100Ti 0.825 135 180 3.80
FC120Ti 1.093 180 240 4.54
FC140Ti 1.419 225 300 5.45
FC160Ti 1.805 270 360 6.52
FG140Ti 1.983 360 480 7.02
Typical residential application:
In-floor heating
Swimming pools, spas heating
Driveway snowmelts

Typical industrial application:
Oil cooler
Transmission and engine cooler
Boiler sample cooler
Waste water heat recovery




Packaging & Shipping

1. High temperature resistant and water proof label

2. One unit will one instruction booklet

3. One heat exchanger is packed in a foam filled carton. Then packed all the units in wood box for bulk order.

4. Quick delivery for sample and bulk order

5. Minimal order quantity: 1 unit




Our Services

1. Sample provied

2. Quick delivery by FedEx or DHL

3. Customized production for special requirements

4. OEM logo and brand

5. Quality warranty: 1 year, free replacement for any fail due to our product
