Specifications

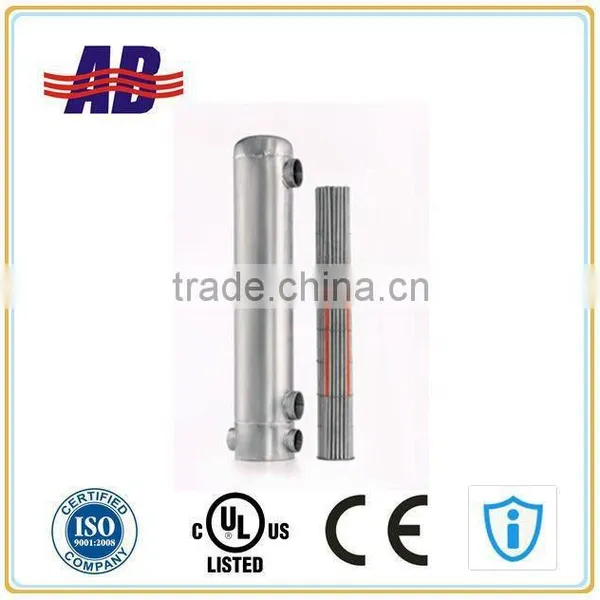

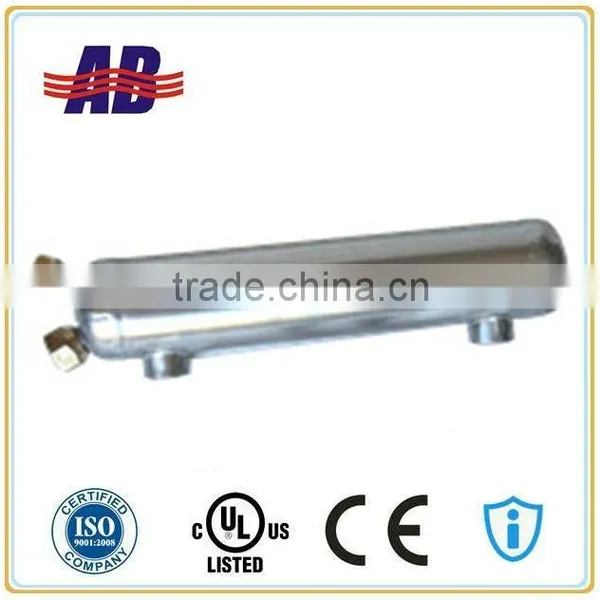

This Marine Heat Exchanger is1.Full TIG welded purity titanium structure
2.Spiral twisted tubes for heating or cooling
3.CE
We produce series of heat exchangers and oil coolers, including the following coolers
Engine & transmission oil cooler
Hydraulic oil cooler
Charged air to water intercooler
DC heat exchanger
Marine heat exchanger
Fuel cooler
After cooler
Features of Titanium Heat Exchangers:
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly for marine applications.
Advantages of Titanium Heat Exchangers:
High heating efficiency for marine heating or cooling, big flow volume, compactable, easy installation and durable.
Material: Full purity titanium
Max design temperature:208°C
Max. working pressure:3.5Mpa
Performance data of engine oil coolers
Typical examples of oil coolers fitted to torque converter transmissions with an oil inlet temperature of 110C and a water inlet temperature of 80C.
Cooler Type |
Maximum oil flow |
Maximum water fow |
Suitable for torque converter transmitting |
Internal oil volume |
Internal water volume |
Liter/min |
Liter/min |
kW |
Liter |
Liter |
|
|
EC 80-E EC100-E EC120-E EC140-E EC160-E |
30 60 60 60 60 |
200 200 200 200 200 |
45 60 75 90 105 |
0.26 0.49 0.74 0.97 1.30 |
0.31 0.44 0.57 0.71 0.91 |
|
FC100-E FC120-E FC140-E FC160-E |
100 100 100 100 |
300 300 300 300 |
90 105 120 135 |
1.10 1.50 2.00 2.60 |
0.84 1.06 1.35 1.68 |
|
FG100-E FG120-E FG140-E FG160-E |
150 150 150 150 |
400 400 400 400 |
120 140 170 200 |
2.40 3.00 3.90 5.00 |
1.56 1.96 2.42 2.97 |
|
GL180-E GL240-E GL320-E GL400-E |
220 220 220 220 |
700 700 700 700 |
180 240 300 360 |
4.80 6.30 8.00 10.00 |
3.80 4.60 5.50 6.60 |
|
GK250-E GK320-E GK400-E GK480-E |
350 350 350 350 |
1000 1000 1000 1000 |
360 450 540 630 |
9.00 11.60 14.60 17.40 |
7.50 9.00 10.60 12.30 |
|
JK250-E JK320-E JK400-E JK480-E |
550 550 550 550 |
1600 1600 1600 1600 |
520 640 780 900 |
12.50 16.10 20.30 24.20 |
10.40 12.50 14.70 17.10 |
1. High temperature resistant and water proof label
2. One unit will one instruction booklet

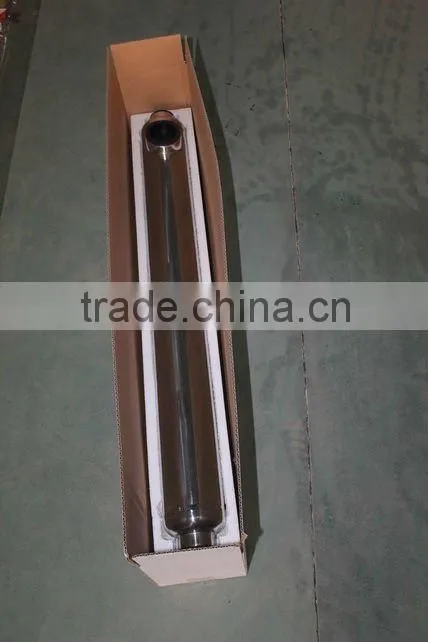

3. One heat exchanger is packed in a foam filled carton. Then packed all the units in wood box for bulk order.
4. Quick delivery for sample and bulk order
5. Minimal order quantity: 1 unit
1. Sample provied
2. Quick delivery by FedEx or DHL
3. Customized production for special requirements
4. OEM logo and brand
