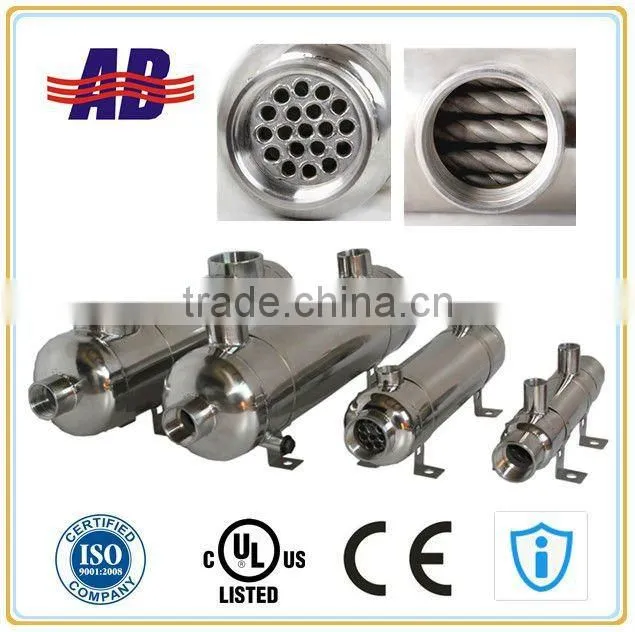

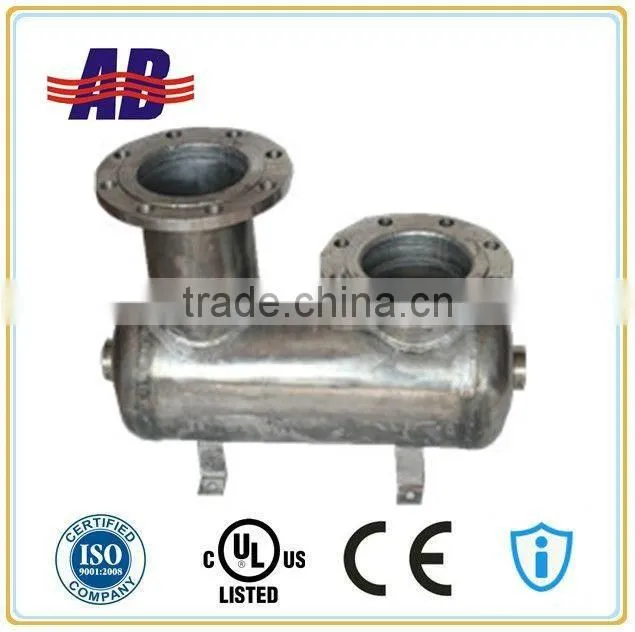

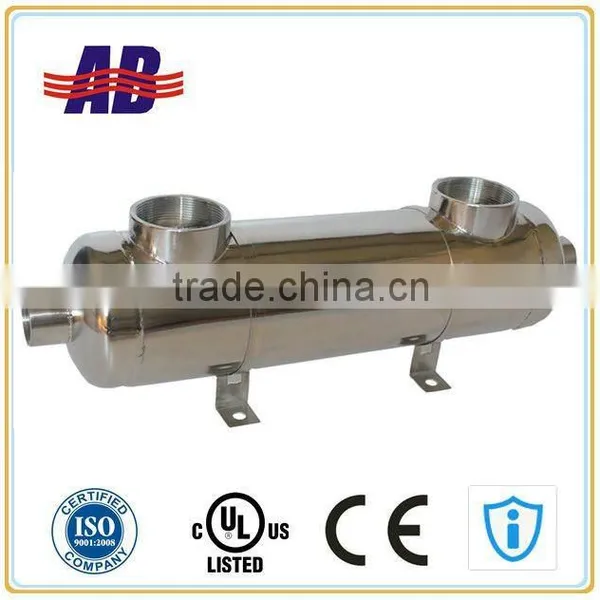

Shell and tube type Stainless steel Engine Oil Cooler
- 2000 Unit / Units per Month
- Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- New Aluminum 15L Capapity air oil cooler for concrete mixer truck
- 12L Capapity air oil cooler for concrete mixer truck
- Standard New Oil Cooler for concrete mixer truck
- Standard Hydraulic Oil Cooler for Concrete Mixer Truck
- Aluminum Plate and Bar Hydraulic Oil Cooler for Concrete Mixer Truck
- Hydraulic Oil Cooler for Concrete Mixer Truck
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | AB |
Model Number: | EC100-E | Structure: | Tube Heat Exchanger | Liquid Flow Rate: | 150L/min |
Maximum Working Pressure: | 3.0MPA | Voltage: | 220,380,440v | Weight: | 3kg |
Dimension(L*W*H): | 296*89*110 | Power(W): | 15kW | Certification: | CE, ROHS, UL |
Warranty: | 1 year | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
This engine oil cooler has various connectors made connection easy and flexible.We produce series of oil coolers for marine or river boat engine, hydraulic system cooling including the following series
l DC Heat Exchangers
l Engine & Transmission Oil Coolers
l Hydraulic Oil Coolers
l Exhausted Air to Water Intercoolers
l Marine Heat Exchangers
l Fuel Coolers
l After Coolers
Features of Engine Oil Cooler
With corrugated tubes, this engine oil cooler ensures high viscosity oil with good flow velocity inside of the unit.
This features made this engine oil cooler efficient and cost effective on water to oil cooling system.
Advantages of Engine Oil Cooler
1. High heating efficiency for oil cooling
2. Compacted size
3. Easy installation
4. Stainless steel shell & tubes.
5. Various connectors for connection.
Design Parameter of Engine Oil Coolers
Maximum working pressure on oil side.20bar, 25bar, 35 bar
Maximum working pressure on water side.20 bar, 25 bar, 35 bar
Design temperature.120°C, 150°C, 200°C,
We produce customized applications on different working pressure and temperature.
Performance data of engine oil coolers
Typical examples of oil coolers fitted to torque converter transmissions with an oil inlet temperature of 110C and a water inlet temperature of 80C.
Cooler Type | Maximum oil flow | Maximum water fow | Suitable for torque converter transmitting | Internal oil volume | Internal water volume |
| Liter/min | Liter/min | kW | Liter | Liter |
EC 80-E EC100-E EC120-E EC140-E EC160-E | 30 60 60 60 60 | 200 200 200 200 200 | 45 60 75 90 105 | 0.26 0.49 0.74 0.97 1.30 | 0.31 0.44 0.57 0.71 0.91 |
FC100-E FC120-E FC140-E FC160-E | 100 100 100 100 | 300 300 300 300 | 90 105 120 135 | 1.10 1.50 2.00 2.60 | 0.84 1.06 1.35 1.68 |
FG100-E FG120-E FG140-E FG160-E | 150 150 150 150 | 400 400 400 400 | 120 140 170 200 | 2.40 3.00 3.90 5.00 | 1.56 1.96 2.42 2.97 |
GL180-E GL240-E GL320-E GL400-E | 220 220 220 220 | 700 700 700 700 | 180 240 300 360 | 4.80 6.30 8.00 10.00 | 3.80 4.60 5.50 6.60 |
GK250-E GK320-E GK400-E GK480-E | 350 350 350 350 | 1000 1000 1000 1000 | 360 450 540 630 | 9.00 11.60 14.60 17.40 | 7.50 9.00 10.60 12.30 |
JK250-E JK320-E JK400-E JK480-E | 550 550 550 550 | 1600 1600 1600 1600 | 520 640 780 900 | 12.50 16.10 20.30 24.20 | 10.40 12.50 14.70 17.10 |
1. High temperature resistant and water proof label
2. One unit will one instruction booklet
3. One heat exchanger is packed in a foam filled carton. Then packed all the units in wood box for bulk order.
4. Quick delivery for sample and bulk order
5. Minimal order quantity: 1 unit
1. Sample provied
2. Quick delivery by FedEx or DHL
3. Customized production for special requirements
4. OEM logo and brand
5. Quality warranty: 1 year, free replacement for any fail due to our product
6. Retail store on line /store/208373 for credit card payment
