We have 3 series Industrial Sewing Machines for your sewing work.
Series 6200:

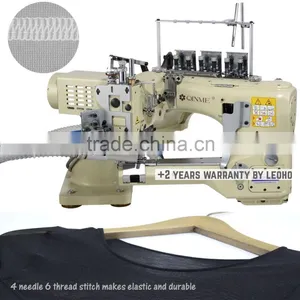

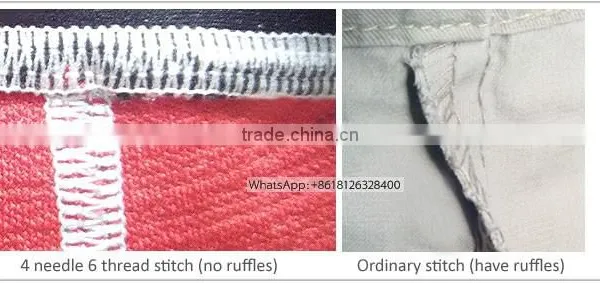

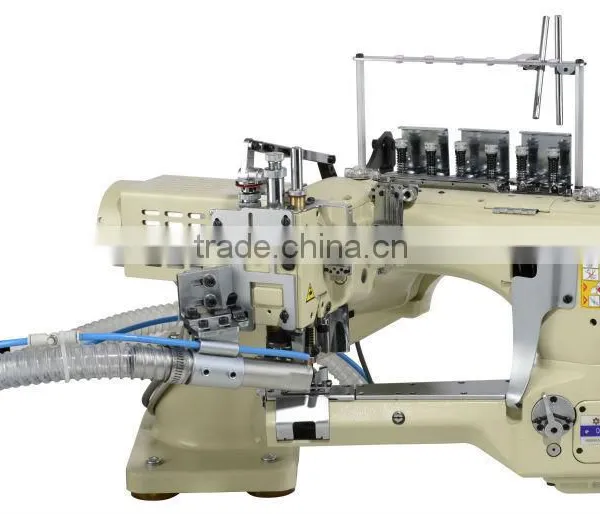

Featured as 4 needle 6 thread stitch,double and single material trimmer available, taiwan motor, sewing for light weight materials like sports wear,kids clothes,underwear,socks,etc.
QM-6200-12MR
QM-6200-01MR
Specifications:
Description: High speed feed-off-the-arm machine for flat seaming(oil-free)
Dimensions: 420mm(L)x300mm(W)x310mm(H)
Working space: Cylindrical shape of 210mm in front of needle drop
Weight: 23kg (machine head only)
Stitch Type: ISO 406, 605, 608
Sewing Speed: Up to 3800rmp, 3000rmp in usual
Stitch Length: 1.6-2.5mm The number of stitches 10-16 stitches per inch(25.4mm) 12-19 stitches per 30mm
Needle System: Sewing needle: Organ FL x 118GCS,, Groz-Beckert UY118GKS
Retainer needle: Organ FLG-1, FLF-8(with scarf)
Groz-Becket 36211.36211A(with scarf)
Feed Regulation: By lever
Differential Ratio: Max. normal differential:1.0:1.5
Max. reverse differential: 1.0:0.7
Lubrication: Automatically by gear pump
Lubrication oil: OIL NO.68
Capacity of Oil reservoir : Frame: about 100c
Cylinder: about 100cc
Circumference of Cylinder: 148mm at needle drop
Differential Feed regulation: By dial
Knives of Fabric Cutting: Both upper and lower knives made of special steel
Model (6200series) |
Material trimmer |
Needle distance |
Pressure Foot Lift |
QM-6200-12MS |
double |
6.0mm(15/64 inches) |
Max. 6mm at the highest point of needle clamp |
QM-6200-01MR |
single |
5.2mm(13/64 inches) |
Max.8mm |
QM-6200-01MS |
single |
6.0mm(15/64 inches) |
Max.8mm |
QM-6200-12MR |
double |
5.2mm(15/64 inches) |
Max. 6mm |
Model: 35800

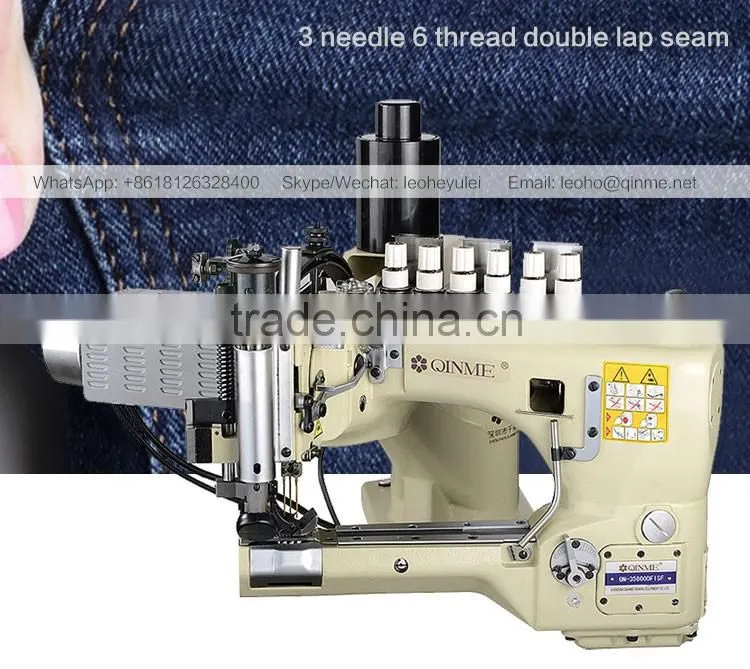

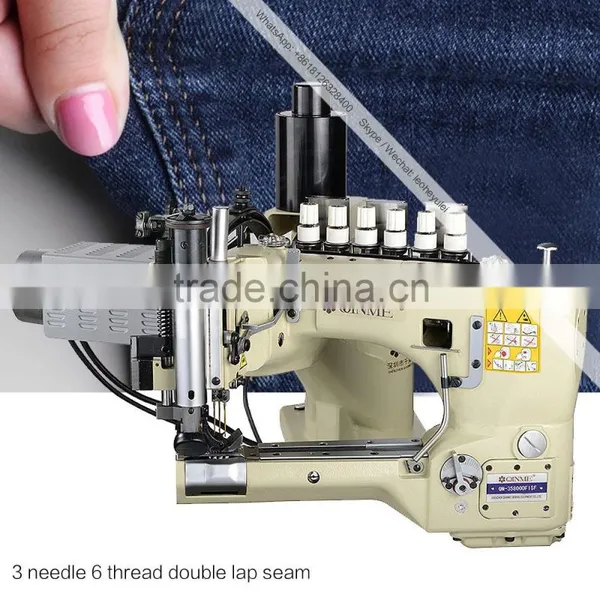

Featured as 3 needle 6 thread stitch,sewing for medium and hevy duty material like jeans,jackets.
Model QM-35800SF1SN Heavy duty material industrial sewing machines
Specifications:
Name QM-35800
Sewing form three needles six threads sewing machine
Function medium~ high thickness: jeans, labor jacket, uniform
Max sewing speed 4500rmp
Stitch length 6.4mm(1/4”)
Sewing length 2.1mm~3.6mm(standard 3.2mm)
Needle/standard sewing UY130GS(standard)/Nm140(#22)
Needle bar area 33mm
Stitch conductor 6conductors
Weight(head) 23.5kg
Presser foot lift Max 9mm(6.5mm for factory)
Tug on the feed width 11.9mm
Feed adjustment method Main feed: slide length adjustments
Poor feed: lever adjustment No differential control
Lubricating method Automatic rotary pump oil
Machine oil Juki machine oil NO.18
Installation method Aid drive assembly MT103 mounted on the machine
Model: 36800

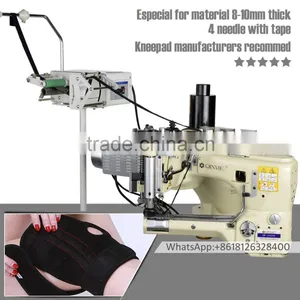

Featured as 4 needle 6 thread stitch, equipped with tape feeder, suitable for extra heavy duty materials like kneepad, jeans, material thickness up to 9:00mm.

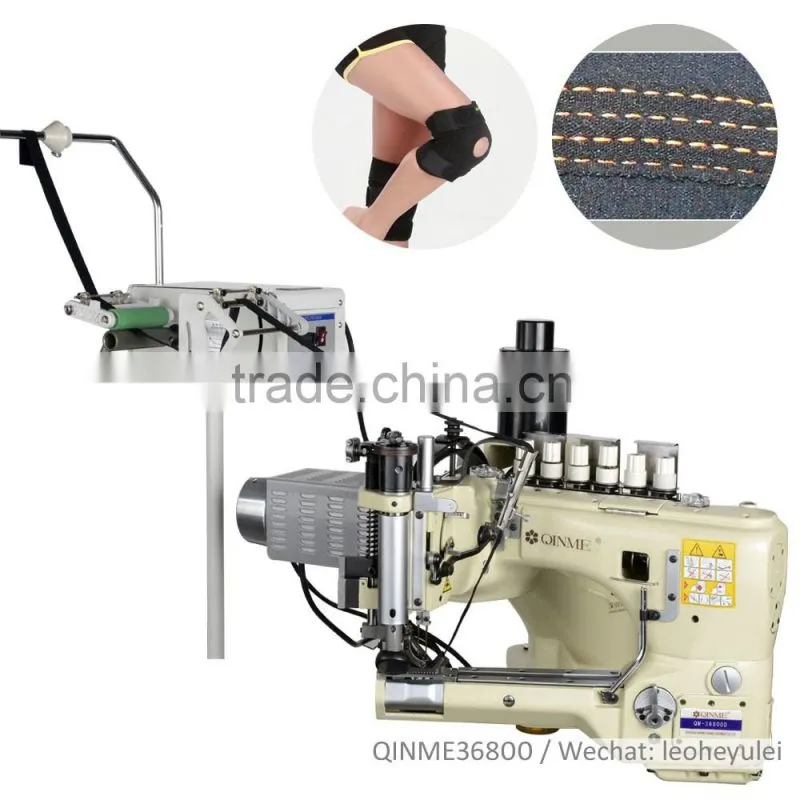

Model QM-36800 industrial sewing machines for extra heavy duty material
Specifications:
Model Name |
QM-36800D |
Sewing form |
Four needle six thread compound sewing machine |
Application |
Diving suits, jeans, labor jacket, athletic garments. |
Max sewing speed |
4,500rpm |
Stitch length |
6.4mm(1/4”) |
Sewing length |
2.1mm~3.6mm(standard 3.2mm) |
Needle/standard sewing |
UY128GS/UY121GS(#14) |
Needle bar area |
33mm |
Stitch conductor |
6 conductors |
Weight(head) |
23.5kg |
Presser foot lift |
Max 9mm(6.5mm for factory) |
Tug on the feed width |
11.9mm |
Feed adjustment method Main feed |
slide length adjustments |
Lubricating method |
Automatic rotary pump oil |
Machine oil |
Juki machine oil NO.18 |
Installation method |
Aid drive assembly MT103 mounted on the machine |
About Company Qinme industrial sewing machine
Established in 1993, Shenzhen Qinme sewing equipment co.,ltd has been researching and manufacturing sewing machines for more than 20 years. Today, Qinme has one of the largest varieties of industrial, special equipment; from lockstitch machines for upholstery to specialty 4 needle 6 thread high speed interlock stitch machines for underwear, sports garments, curtains etc. Qinme has it all. Our heavy duty machines are well designed for sewing jeans,leather,canvas,webbing, parachutes,and tents,as well as other garments.

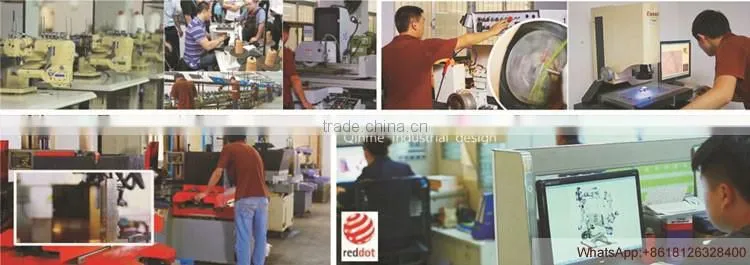

Qinme growing fast in recent years based on our R&D teams and CNC machining department which set up early. All our accessories and parts of sewing machine are produced by ourselves, we gained high reputation from clients. At the same time, We can offer CNC machining services to our customers if they need parts use for electronics,medical, aeronautical, automotive, even intelligent home.
With offices in Shenzhen China, Bangladesh, Pakistan, and agents throughout the world. QINME is able to supply and service the most reliable ,precisely and affordability machines and parts you need. We are looking for more agents from potential markets, welcome to visit us.
