Saipwell , to cast products full of happiness
Saip/Saipwell high quality glass thermostat temperature and humidity
thermostat room thermostat,digital thermostat,electric thermal actuator,actuator 24v,manifold actuator,thermostat(ksd301),water heater thermostat,ksd301 thermostat 16a 250v,rf thermostat,programmable thermostat,underfloor heating thermostat,.temperature thermostat,floor heating thermostats,bimetal disc thermostat,freezer bimetal thermostat,ksd301,refrigerator thermostat, defrost thermostat
1.Small size
2.easy installation
3.Large setting range
4.high switching tolerance
Introduction
Saip/Saipwell high quality glass thermostat temperature and humidity
♦ High DC switching capacity
♦ Variety of applications
♦ Conpact design
♦ Simple connection
♦ Clip fixing
Electronic relay for switching DC appliances with high switching capacity. A separate conventional switch contact is used as controller (e.g. temperature regulator,
humidity regulator). The electronic relay is available in 24VDC and 48VDC versions

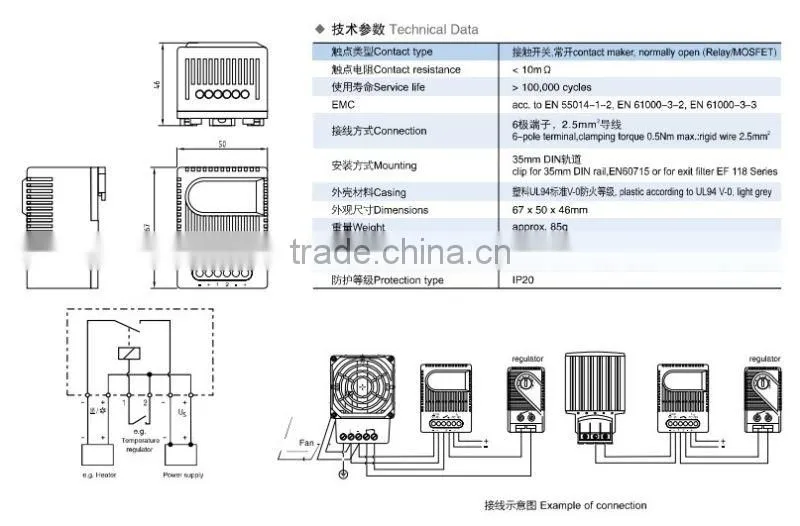

Techanical data
Saip/Saipwell high quality glass thermostat temperature and humidity
| Contact type | contact maker, normally open (Relay/MOSFET) |
| Contact resistance | <10Ω |
| Service life | >100,000 cycles |
| EMC | acc. to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3 |
| Connection | 6-pole terminal, clamping torque 0.5Nm max.:rigid wire 2.5mm² |
| Mounting | clip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series |
| Casing | plastic according to UL94 V-0,light grey |
| Dimensions | 67x50x46mm |
| Weight | approx. 85g |
| Fiting position | variable |
| Operating/Storage temperature | -20 to +80(-4 to +176°C) |
| Protection type | IP20 |
| Art. No. | Operating voltage | Max. Switching capacity |
| 01001.0-00 | 24VDC(20-28VDC) | 28VDC 16A |
| 01000.0-00 | 48VDC(38-56VDC) | 56VDC 16A |
Saip/Saipwell high quality glass thermostat temperature and humidity

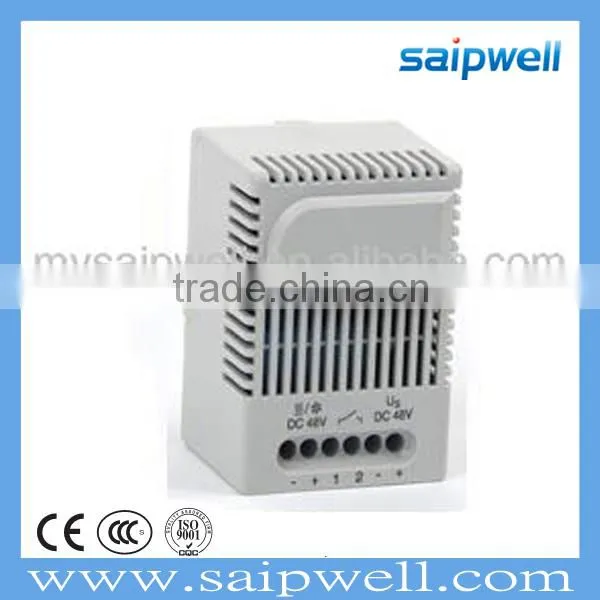

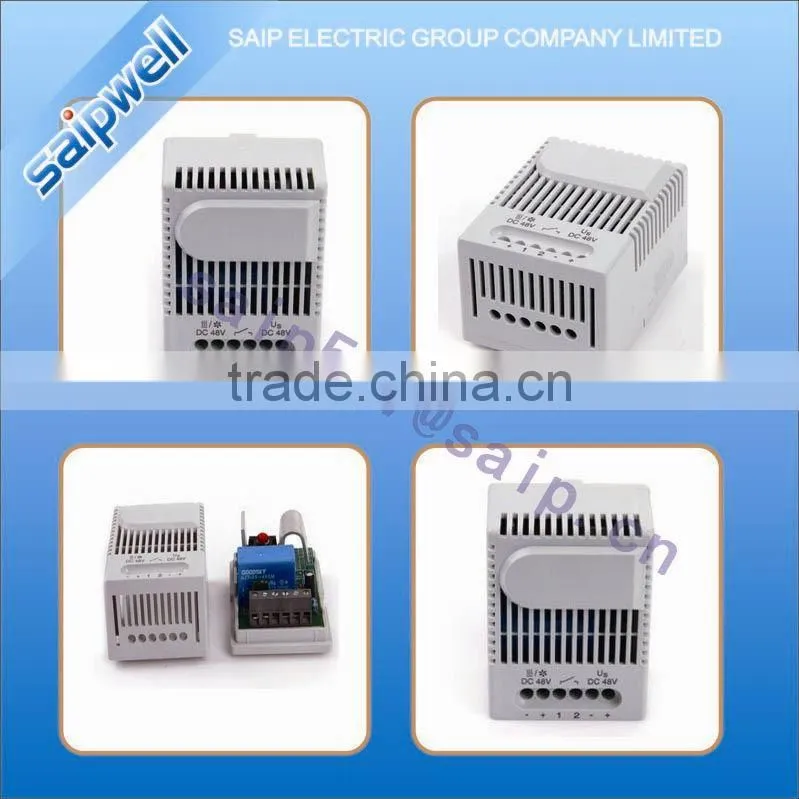

Picture of details
Saip/Saipwell high quality glass thermostat temperature and humidity

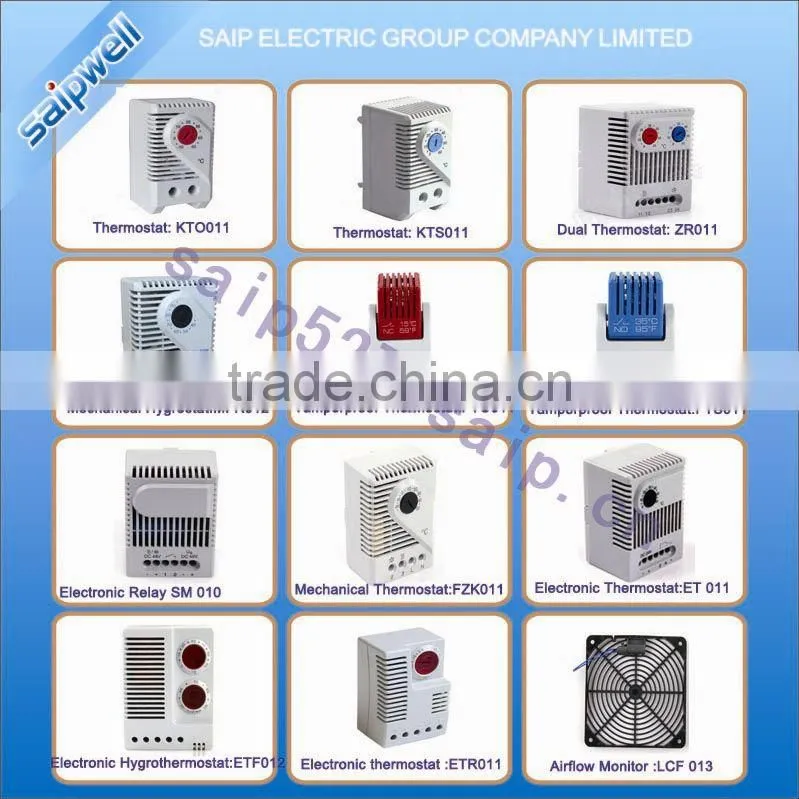

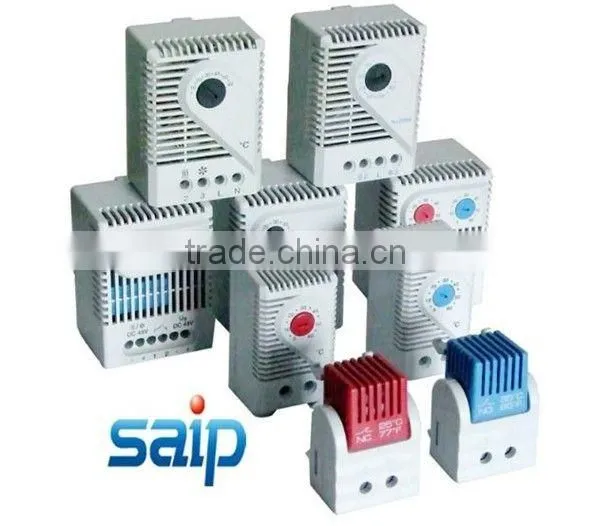

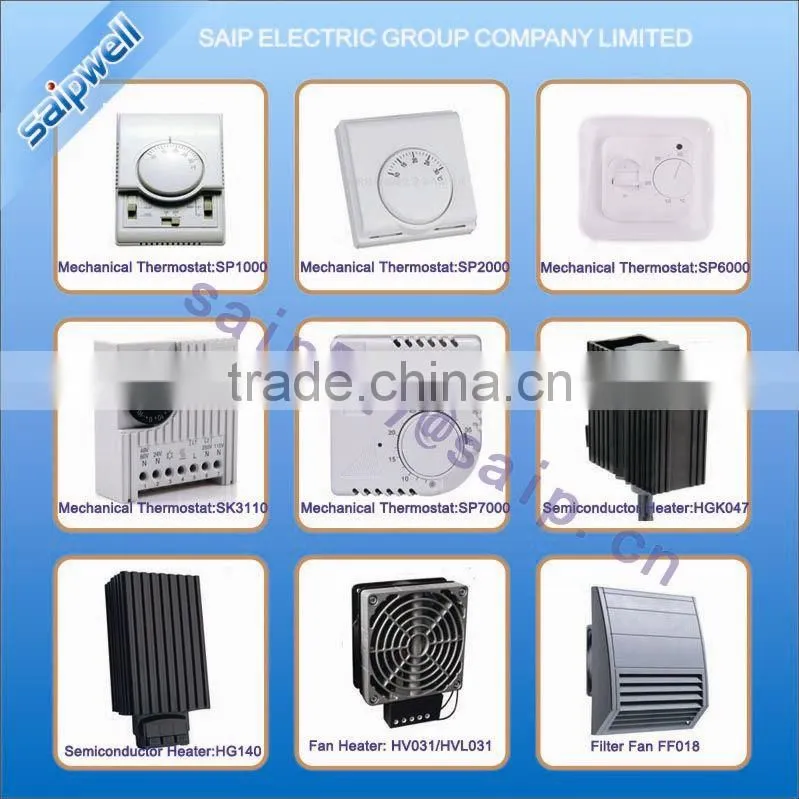

Pictures of Other kinds for reference :
Others (price,package and service)
1. The quoted price is always valid for 15 days due to the fluctuation of raw material cost.
Please feel free to contact us for the catalog or prices.
2. Please kindly inform us which items you are interested & the best price will be provided you upon receipt of your new inquiry asap.
3. Samples will be offered to you for our future cooperation.
Why choose us:
1. Gold supplier authenticated by ALIBABA
2. It's safe and easy to buy from us
3. We can ensure the quality of products and after-sales services
Our company
SAIP/SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world.
Please kindly contact with us freely. High quality,reasonable price,best service is offered to you.
