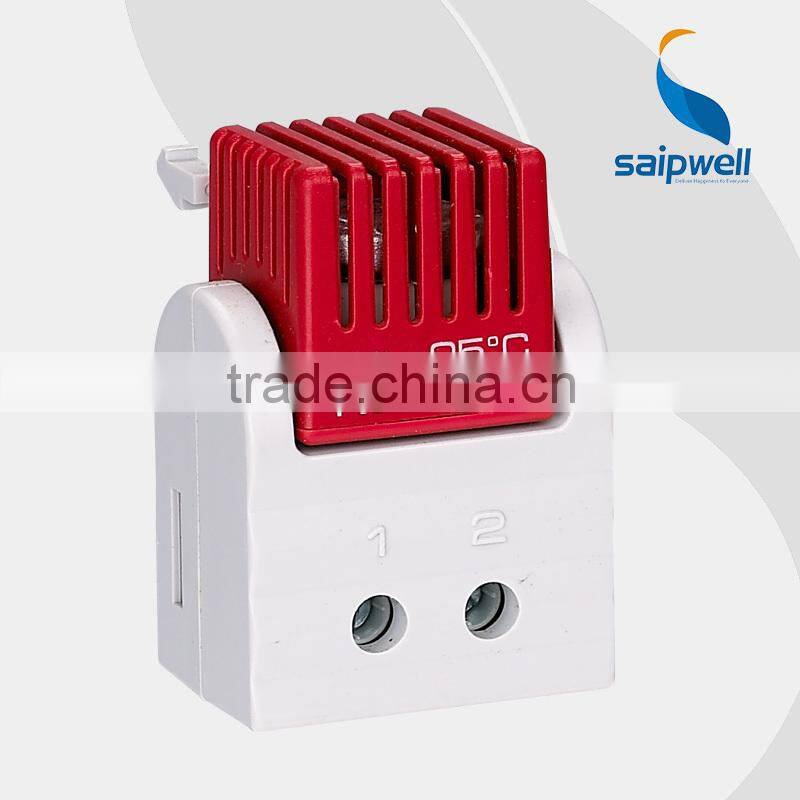

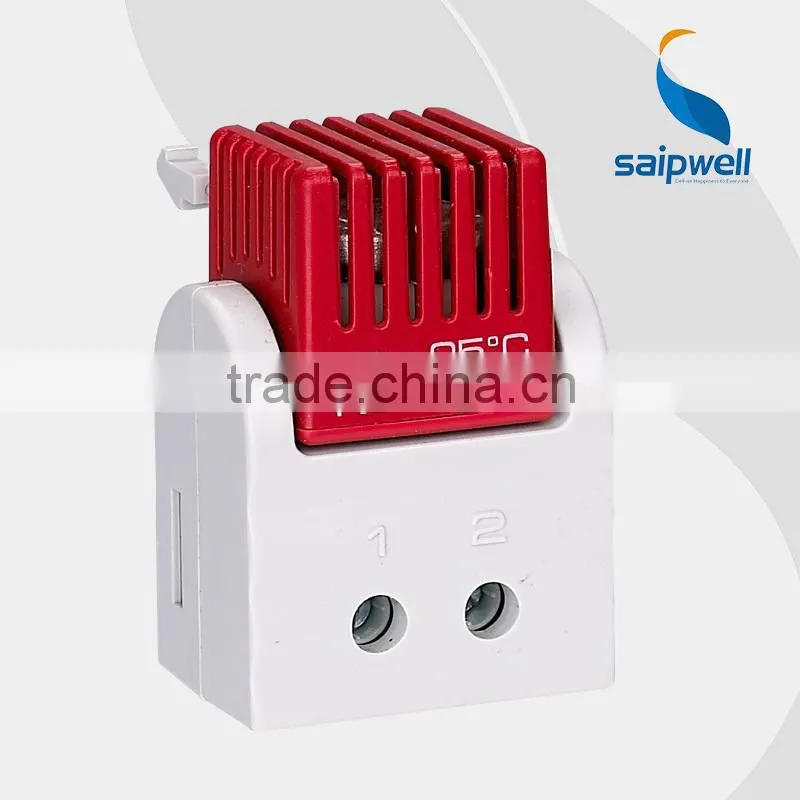

Saipwell New User-friendly Mini Temperature Regulator Thermostat FT011
Saipwell New User-friendly mini temperature regulator thermostat
We have variety of Thermostat For Heating And Cooling and we can try our best to meet all your needs.
Business Principle: To conduct budiness in a simple straightforward manner.
To manufacture,innovative products that bring converience to itsusers.
Specification:
mini temperature regulator thermostat

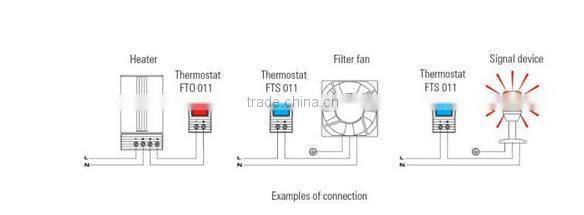

Thermostat contact breaker for regulating heater.
Thermostat For Heating And Cooling contact maker for regulating of filter fans and heat exchangers or for switching singal devised when temperature limit has been exceeded.
Technical Date
Sensor element |
thermostatic bimetal mini temperature regulator thermostat |
Contact type |
snap-action contact |
Contact resistance |
< 20mΩ |
Service life |
> 100,000 cycles |
Max. Switching capacity |
250V AC, 5 (1.6)A |
120V AC, 10 (2)A | |
DC 30W | |
Max. inrush current |
AC 10A |
EMC |
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection |
2-pole terminal for 2.5mm2,torque 0.8Nm max. |
Mounting |
clip for 35mm DIN rail, EN 60715 or for exit filter EF 118 Series |
Casing |
plastic according to UL94 V-0, light grey |

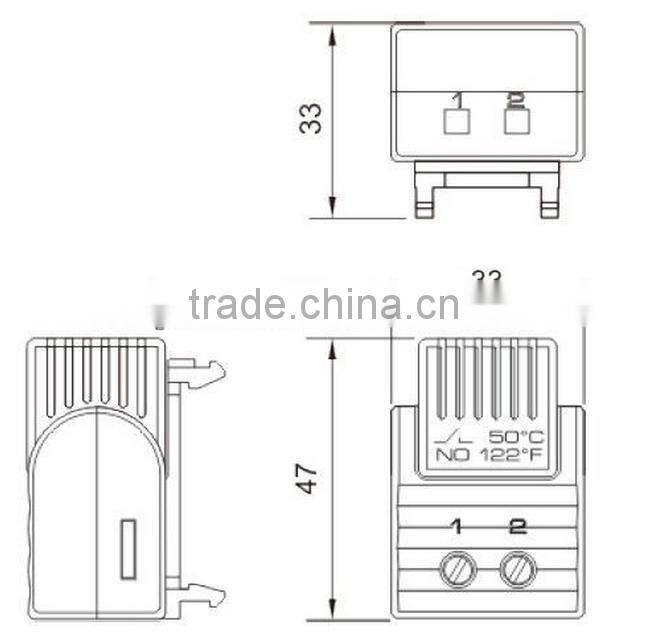

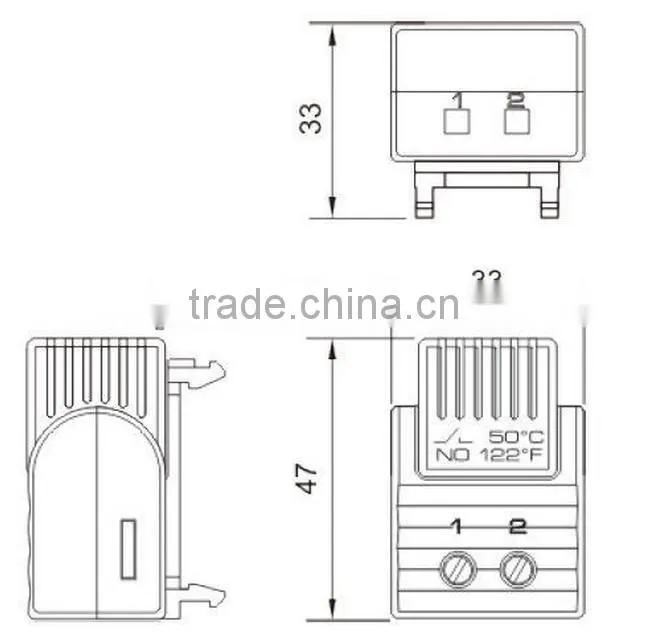

Dimensions |
47 x 33 x 33mm |
Weight |
approx. 23g |
Fitting position |
variable |
Operating/Storage temperature |
-20 to+80°C(-4 to +176°F) /-45 to+80°C(-49 to +176°F ) |
Protection type |
IP20 |
If you want other temperature :
Part No. |
Contact |
Switch-off temperature |
Switch-on temperature |
01160.0-00 |
NC - open on rise |
59°F / 15°C (± 9°F / 5K tolerance) |
41°F / 5°C (± 9°F / 5K tolerance) |
01160.0-01 |
NC - open on rise |
77°F / 25°C (± 9°F / 5K tolerance) |
59°F / 15°C (± 9°F / 5K tolerance) |
01161.0-00 |
NO - close on rise |
122°F / 50°C (± 11°F / 6K tolerance) |
104°F / 40°C (± 12.6°F / 7K tolerance) |
01161.0-01 |
NO - close on rise |
140°F / 60°C (± 11°F / 6K tolerance) |
122°F / 50°C (± 12.6°F / 7K tolerance) |
01161.0-02 |
NO - close on rise |
95°F / 35°C (± 11°F / 6K tolerance) |
77°F / 25°C (± 12.6°F / 7K tolerance) |
Product show:

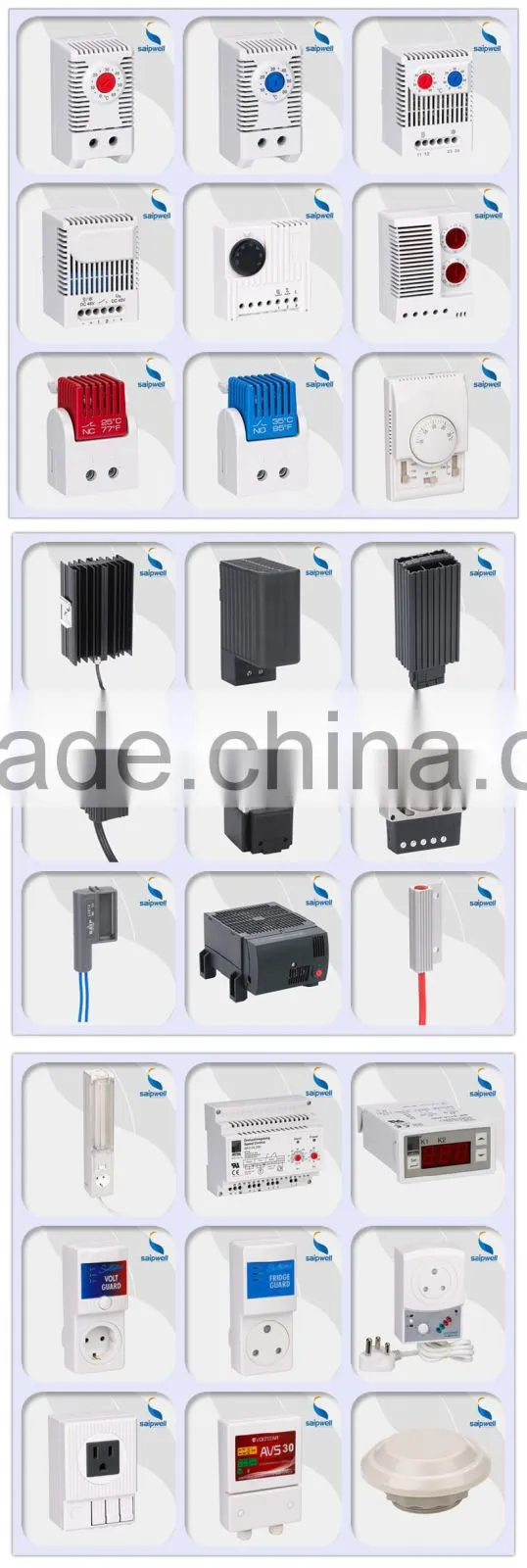

Similar Products:

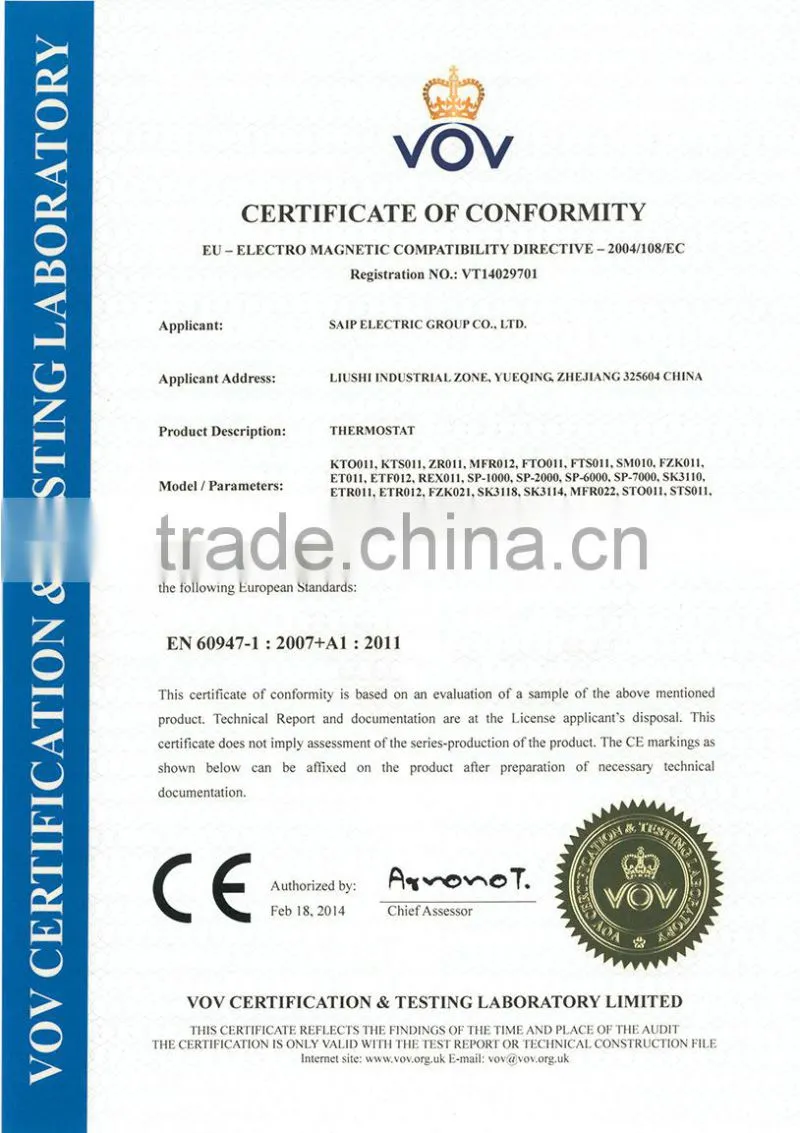

Certificate:
mini temperature regulator thermostat

Our company:
Shanghai Saipwell Electric Co., Ltd. is a manufacturer of temperature regulator thermostat e ,waterproof box and all kinds of waterproof boxes with wellequipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries.
Business Principle: To conduct business in a simple straightforward manner.
To manufacture, innovative products that bring convenience to its users.
