| SAIP/SAIPWELL Adjustable Temperature Switch Mechanical Temperature Induction Switch |
| Nonadjustable |
| Cabinet thermostat |
| Temperature controller |

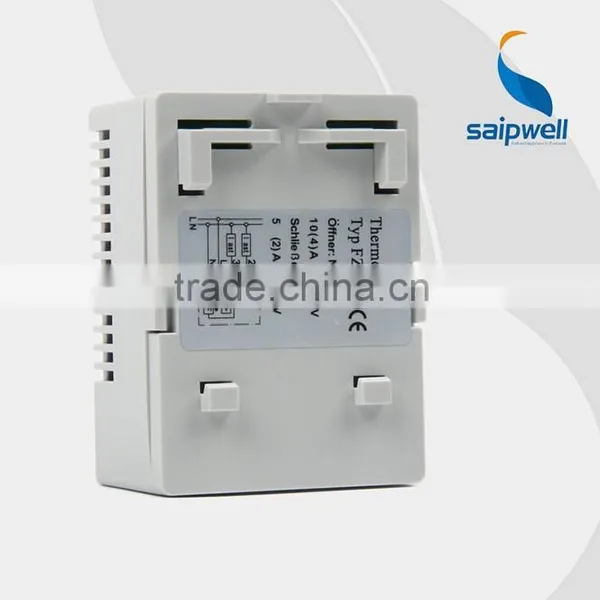

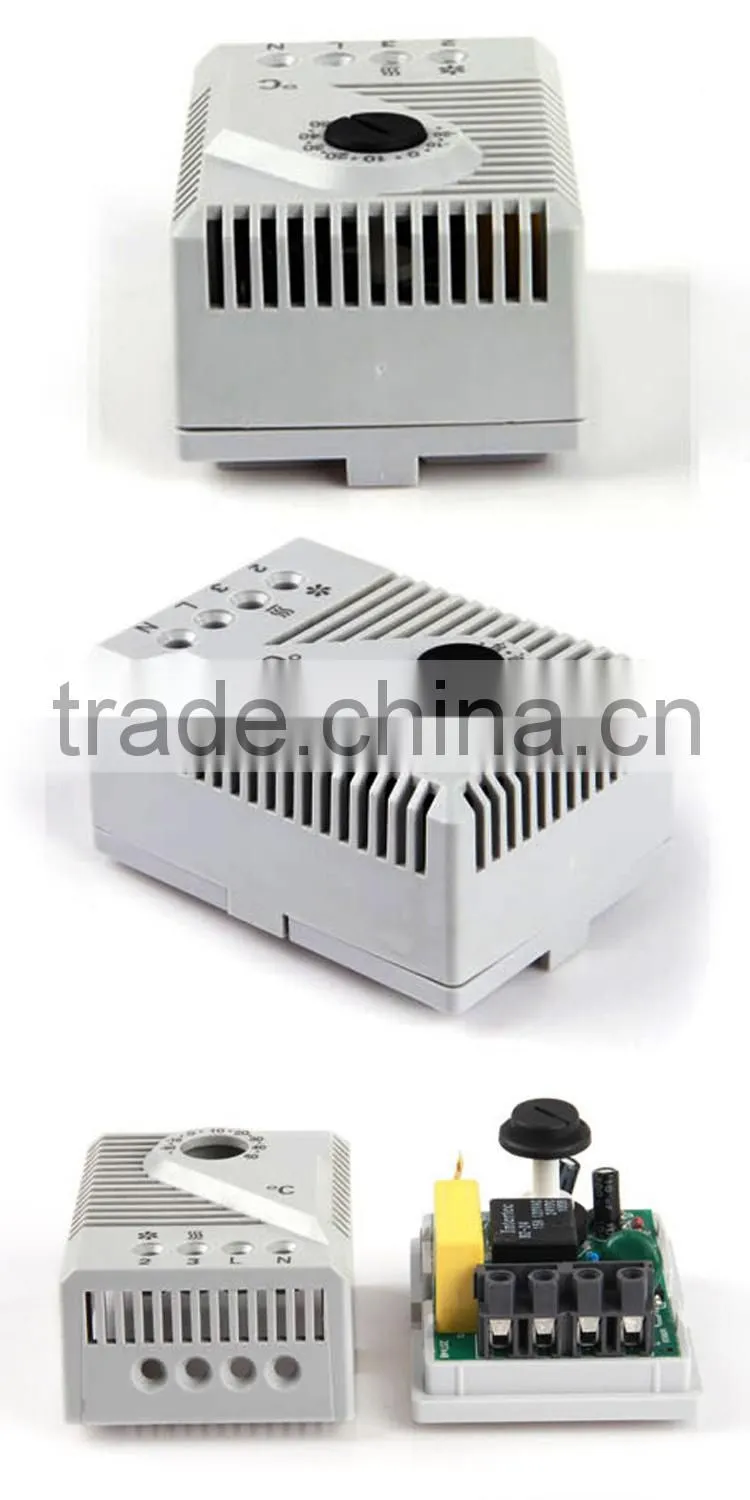

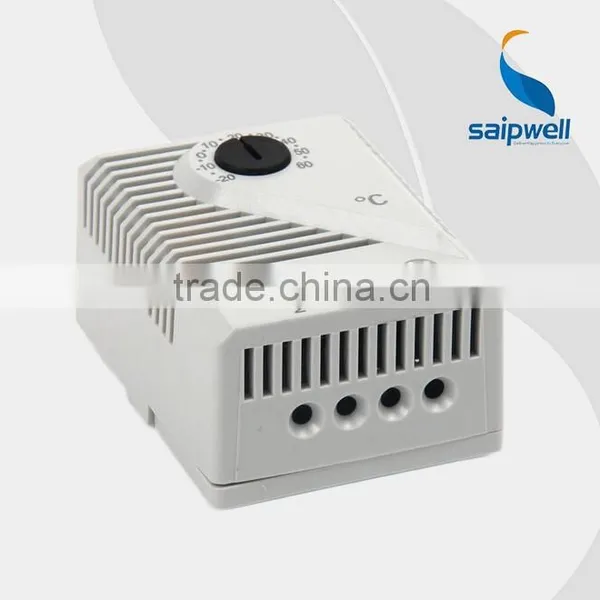

SAIP/SAIPWELL Adjustable Temperature Switch Mechanical Temperature Induction Switch
1,The mechanical thermostat is used for controlling heating and cooling equipment , filter fans or signal devices.The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact.
2. Temperature controller passed IP20,CE ,RoHS.
3. Samples will be offered to you for our future cooperation.
4. OEM/ODM service are offerred.
5. Payment: T/T Advance, L/C 100% Payment if total amount less than $10,000USD.
6. Shipment: by air/sea or express.
SAIP/SAIPWELL Adjustable Temperature Switch Mechanical Temperature Induction Switch
Switch temperatue diffrence |
4K( ±1.5K tolerance ) |
Sensor element |
thermostatic bimetal |
Contact type |
snap-action contact |
Contact resistance |
< 20mΩ |
Service life |
> 100,000 cycles |
Max. switching capacity |
250VAC, 10(4) A |
120VAC,10(4A) | |
DC 30W | |
EMC |
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection |
4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting |
clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
Casing |
plastic according to UL94 V-0, light grey |
Dimensions |
67x 50 x 38mm |
Weight |
approx. 0.1kg |
Fitting position |
variable |
Operating/Storage temperature |
-45 to +80 °C(-49 to +176°F )/-20 to +80°C (-4 to +176°F) |
Protection type |
IP20 |
| Art. No. | Operating voltage | Seting range |
| 01170.0-00 | 230VAC | +5 to +60°c |
| 01170.0-01 | 230VAC | +40 to +140°F |
| 01170.0-02 | 230VAC | -20 to +30°c |
| 01170.9-00 | 120VAC | +40 to +140°F |
| 01170.9-01 | 120VAC | +5 to +60°F |
SAIP/SAIPWELL Adjustable Temperature Switch Mechanical Temperature Induction Switch
SAIP/SAIPWELL Adjustable Temperature Switch Mechanical Temperature Induction Switch
SAIP/SAIPWELL Adjustable Temperature Switch Mechanical Temperature Induction Switch
SAIP/SAIPWELL Adjustable Temperature Switch Mechanical Temperature Induction Switch
1,Material,size and other requirements are customized.
2,Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3,Answer your question detailed.
4,Solve the problem with you during using our products.
5,More our products you can visit our website:
Transportation:
FAQ:
Q: Is sample available and free?
A:Sample is available , but the cost should be payed by you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: It usually takes 7-25days after we confirm the payment,
but specific time should be based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for samll order and by sea or by air for large quantity.
Our company provide small, compact thermostat, dual thermostat, mechanical hygrostat, tamperproof thermostat, electronic relay, electronic hygrothermostat, digital thermostat, new generation thermostat.

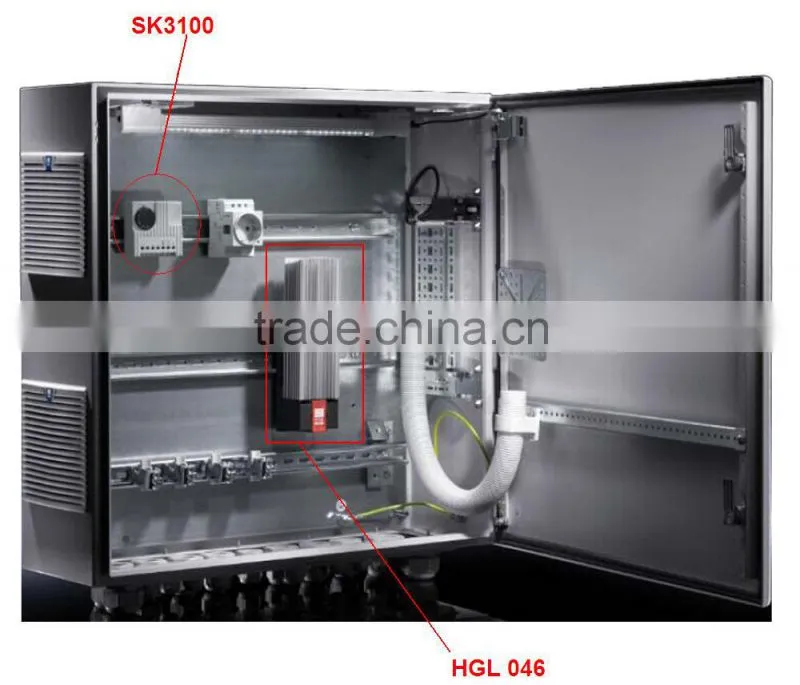

The thermostat can be installed in enclosures,such as ABS enclosrues,waterproof box,junction box,control box,terminal box,switch box etc.
