SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SAIP/SAIPWELL Hazardous Area Thermostat Explosion Proof Temperature Switch REX 011
-
SAIP/SAIPWELL Hot Sale 24V DC PTC Cabinet Electronic Thermostat
-
SAIP/SAIPWELL Hot Sale Clip Fixing 24V DC PTC Cabinet Electronic Thermostat
-
SAIP/SAIPWELL 250V/10A Normally Open Blue Casing Temperature Control Switch for Home Appliance
-
SAIP/SAIPWELL 250V/10A Normally Open Cooling Temperature Control Switch
-
Saip/Saipwell High Quality Electric Bimetal Thermostat
Product Details
| Place of Origin | Shanghai, China | Brand Name | SAIPWELL | |
| Model Number | FTS011-7 | Usage | Industrial | |
| Theory | Temperature Controller | Accuracy | 99.98% | |
| Temperature Range | 35°C |
Product Description
| SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch |
| Nonadjustable |
| Cabinet thermostat |
| Temperature controller |
SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch
1,Tamperproof (Pre-set) Thermostat FTO 011
Contact breaker /NC (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
2,Tamperproof (Pre-set) Thermostat FTS 011
Contact maker /NO (blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.
3. Temperature controller passed IP20,CE ,RoHS.
4. Samples will be offered to you for our future cooperation.
5. OEM/ODM service are offerred.
6. Payment: T/T Advance, L/C 100% Payment if total amount less than $10,000USD.
7. Shipment: by air/sea or express.
SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch
Sensor element | thermostatic bimetal |
Contact type | snap-action contact |
Contact resistance | < 20mΩ |
Service life | > 100,000 cycles |
Min.switching capacity | 20V AC/DC,100mA |
Max. switching capacity | 250VAC, 5(1.6) A |
120VAC,10(2A) | |
DC 30W | |
EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting | clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
Casing | plastic according to UL94 V-0, light grey |

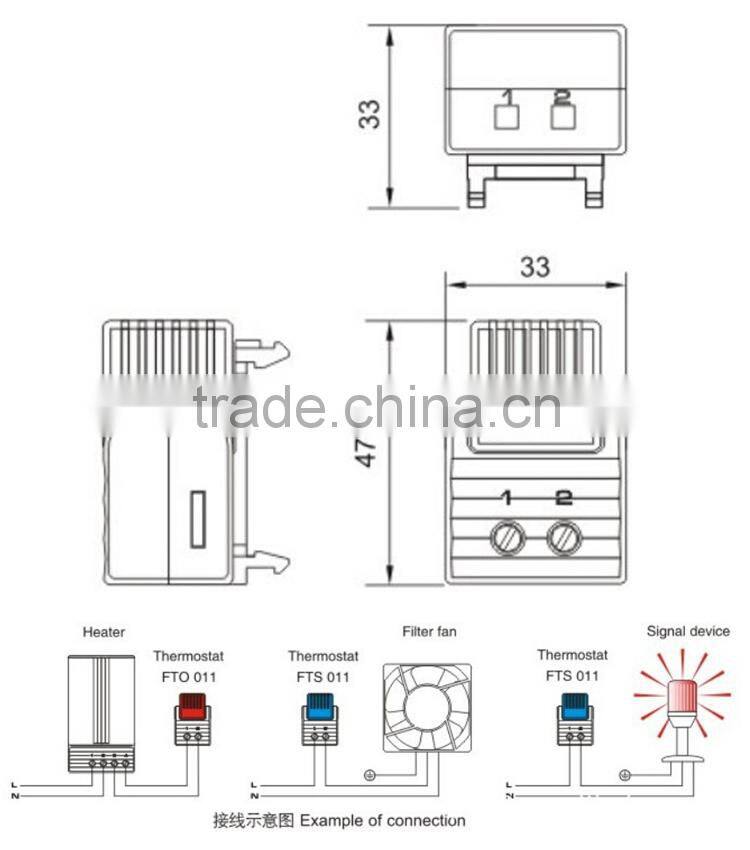

Dimensions | 47x 33 x 33mm |
Weight | approx. 23g |
Fitting position | variable |
Operating/Storage temperature | -45 to +80 °C(+49 to +176°F )/-20 to +80°C (-4 to +176°F) |
Protection type | IP20 |
| Art. No. | Contact type | Switch-off temperature | Switch-on temperature |
| 01160.0-00 | Contact breaker (NC) | +15°C / +59°F (± 5K tolerance) | +5°C / +41°F (± 5K tolerance) |
| 01160.0-01 | Contact breaker (NC) | +25°C / +77°F (± 5K tolerance) | +15°C / +59°F (± 5K tolerance) |
| Switch-on temperature | Switch-off temperature | ||
| 01161.0-00 | Contact maker (NO) | +50°C / +122°F (± 6K tolerance) | +40°C / +104°F (± 7K tolerance) |
| 01161.0-01 | Contact maker (NO) | +60°C / +140°F (± 6K tolerance) | +50°C / +122°F (± 7K tolerance) |
| 01161.0-02 | Contact maker (NO) | +35°C / + 95°F (± 6K tolerance) | +25°C / +77°F (± 7K tolerance) |
SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch
SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch
SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch
SAIP/SAIPWELL Factory Price 250V/10A Snap-action Contact Temperature Control Switch
1,Material,size and other requirements are customized.
2,Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3,Answer your question detailed.
4,Solve the problem with you during using our products.
5,More our products you can visit our website:
Transportation:
FAQ:
Q: Is sample available and free?
A:Sample is available , but the cost should be payed by you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: It usually takes 7-25days after we confirm the payment,
but specific time should be based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for samll order and by sea or by air for large quantity.
Our company provide small, compact thermostat, dual thermostat, mechanical hygrostat, tamperproof thermostat, electronic relay, electronic hygrothermostat, digital thermostat, new generation thermostat.
The thermostat can be installed in enclosures,such as ABS enclosrues,waterproof box,junction box,control box,terminal box,switch box etc.
