Home > Security & Protection > Alarm & Security Systems > Alarm & Security System Accessories > HDcctv HDMI-Converter
HDcctv HDMI-Converter
US$ 100 - 200
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
EverFocus
Model Number:
EHA-SRX
Payment & Shipping
Payment Methods:
Port of Shipment:
Jebel Ali
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
EverFocus
Model Number
EHA-SRX
Specifications
Accepts high-definition HDcctv videoProvides standard HDMI output
Integrated cable equalizer
Certificates:CE, FCC
Features
• Accepts high-definition HDcctv video at 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @25/30Hz formats/frame rates
• Processes HDcctv standard SMPTE 292M at up to 1.5Gbps data rate
• Provides standard HDMI output for HD TV monitor display
• Integrated cable equalizer for long distance video transmission without loss of quality
• Capable of receiving HDcctv video signal over 75Ù coaxial cable at distances of up to 500 ft. on RG59 coaxial cable (overall
distance depends on actual cable type and loss)
• High quality digital video and audio transmission with near zero latency
Specifications
| Model Name | EHA-SRX |
| Type | HDcctv in to HDMI out |
| Video Bandwidth | Up to 1.5Gbps |
| Video Support | 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @25/30Hz |
| Input Signal | HDcctv and SMPTE 292M |
| Output Signal | HDMI |
| Input Connector | 1x BNC 75Ω inter-locked socket |
| Output Connector | 1x HDMI Type A [19-pin female] |
| Housing | Metal case |
| Power Supply | 12VDC (included) |
| Power Consumption | 2 W max. |
| Relative Humidity | 20%~80% Humidity |
| Operation Temperature | 0~50°C / 32~122°F |
| Dimensions (W x H x D) | 77 x 38 x 117mm/3” x 1.5” x 4.6” |
| Weight | 200g/0.45lbs |
| Certificates | CE, FCC |

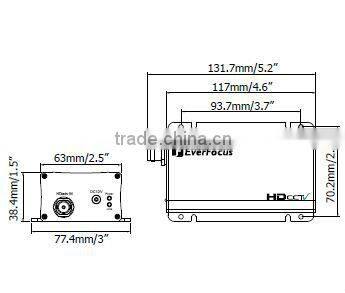

Dimensions
