Specifications
16 Channels Network H.264 with GUIReal-time recording rate
H.264 Compression Format
Certificates:CE, FCC, UL
Features
• H.264 Compression format for efficient disk utilization and network bandwidth conservation
• Real-time recording rate and playback rate for all cameras
• Normal and event recording frame rate can be set independently for each camera
• Multiple Main Monitors: VGA (800x600, 1280X1024)/ BNC Main monitor outputs
• Call monitor: additional composite BNC output with multiplex and/or sequenced views
• Simultaneous recording at D1 or 2CIF with realtime streaming at CIF for remote web viewing to conserve bandwidth
• Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
• Free EverFocus DDNS Service - static IP address is not required for reliable remote access
• User friendly GUI with graphical icons and visual indicators
• Supports eSATA
• Supports 3GPP for mobile monitoring
• Multiple Control Inputs: mouse / front panel / remote controller / EKB500 keyboard
• Built-in record time calculator for fast recording estimation
• Express Setup: A unique menu option for quick & easy installation
• Express Archive: Archive video instantly (to USB) while playing back
• Express Playback: Simply point, click and drag the playback bar to view desired recordings
• Express Search: Use the intuitive playback bar with simple drag & drop operations
• Smart Search: Directly catch the movement in the specified area
• Snapshot search: Show snapshots of the specified interval, help quickly find the interested scene
• Remote configuration support from the built-in web interface
• Gigabit Ethernet interface for remote network viewing and control
• On-screen PTZ control via mouse or front panel
• Support for up to 2 Hot Swappable HDD
• Built-in DVD burner (Optional)
• 2 USB 2.0 ports for video archive and mouse usage
• Multi-language support
• Watermark capabilities to identify intentional modifications to exported data
• 19” Rack mountable
• USB Mouse and IR remote control included

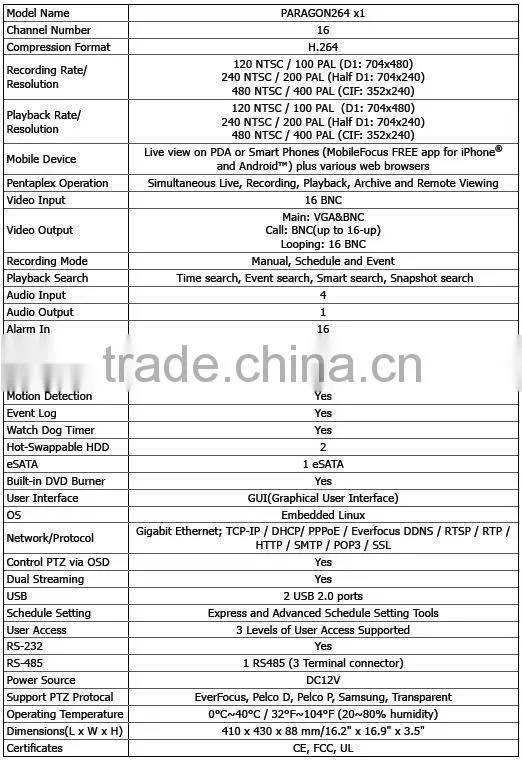

Specifications
Advantages
|
H.264 Compression Technology
H.264 compression technology is considered 1.5 times better compression ratio than MPEG-4. Benefiting from H.264, PARAGON264 x1 DVR delivers the crystal clear images as long with low bandwidth consumption.
|
|
GUI With Graphical User Interface (GUI), users can command specific actions on the PARAGON264 x1 DVR through graphical icons and visual indicators. Simply click the screen to do live or playback on the selected channel.
|

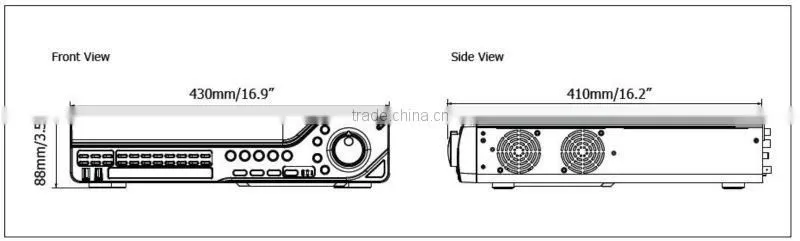

Dimensions
