Home > Manufacturing & Processing Machinery > Petroleum Equipment & Machinery > Pumping Unit > Float Shoe and Float Collar

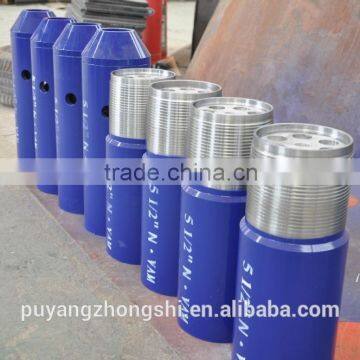

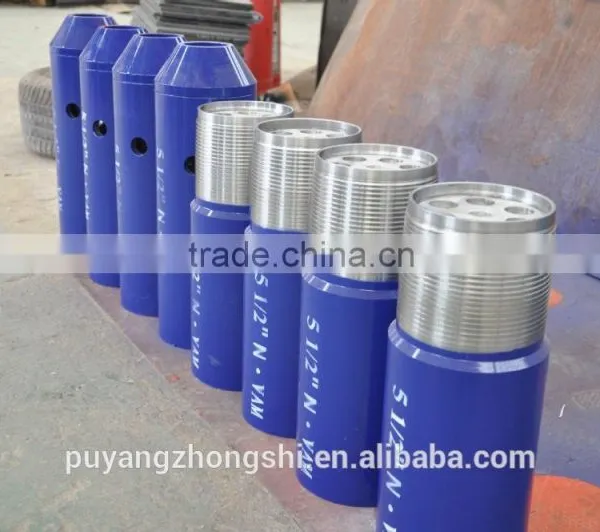

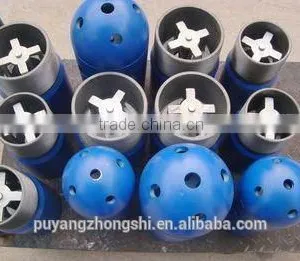

Float Shoe and Float Collar

Name: Float Shoe and Float Collar
Brand: PUYANGZHONGSHI
SKU: 107190953
Availability: InStock

US$ 200 - 2,000 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

PUYANGZHONGSHI

Contact Supplier Request Quote Chat Now

Puyang Zhongshi Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name PUYANGZHONGSHI

After-sales Service Provided Engineers available to service machinery overseas

Production name: casing float collar, float shoe

Production description:

Float collar and float shoe is one of the conventional and necessary accessories of lower casing string structure, usually connecting at the bottom of the tubing string, used to guide the casing string smoothly into the hole, playing a suspended casing, preventing the cement slurry reverse flow and realization of condensation after cementing bump pressure discharge pressure, reducing derrick load, controlling the height of cement plug. The internal components of the device is processed by the aluminum alloy with good drillability, using 9 5/8 "float collar and float shoe after cementation, being able to directly drill down three.

Float collar and float shoe are improved product developed by ourselves based on the modern technique inland and overseas. The inner component of the equipment is made up of drillable aluminum alloy, has the advantage of special configuration high tensity ,light, strong pressure bearing, and good air proof capability, can be applied widely.

Specifications:

FG represents the float collar, FX represents the float shoe

Specification	Outside diameter	Inside diameter	Height	Forward pressure	Backward pressure	Connecting screw thread	Material	Standard
FG-FZQ140	154	122	400	20MPa	25MPa	5-1/2”LCSG	40Cr	SY/T5618-2000
FG-FZQ178	194	159	400	20MPa	25MPa	7”LCSG	40Cr	SY/T5618-2000
FG-FZQ245	270	220	450	20MPa	25MPa	9-5/8”LCSG	40Cr	SY/T5618-2000
FG-FZQ340	365	313	450	10MPa	10MPa	13-3/8”LCSG	40Cr	SY/T5618-2000
FX-FZQ140	154	122	500	-	25MPa	5-1/2”LCSG	40Cr	SY/T5618-2000
FX-FZQ178	194	159	500	-	25MPa	7”LCSG	40Cr	SY/T5618-2000
FX-FZQ245	270	220	550	-	25MPa	9-5/8”LCSG	40Cr	SY/T5618-2000
FX-FZQ340	365	313	550	-	10MPa	13-3/8”LCSG	40Cr	SY/T5618-2000
