Help CenterSet Screw Collars
Related Products
-
Downhole Split Collar SetUS$ 10 - 100MOQ: 100 Pieces -
Oilfield Casing Set CollarUS$ 5 - 109MOQ: 100 Pieces
-
Oilfield Wellhead Equipment API Casing Head Manufacturer SupplyUS$ 1 - 30MOQ: 1 Piece
-
Double-Plug Cement Head Cementing ToolUS$ 1 - 300MOQ: 50 Pieces
-
Cementing Plug (top Plug and Bottom Plug)US$ 1 - 25MOQ: 1 Set
specification
Stop ring also called spacing ring, locking ring, brake, etc., It's using to limit on the casing centralizer or cement umbrella, sliding, covered wire, set screw type and jewels three.
The stop collar or stop ring can be installed on any position on casing to limit the axial movement of centralizers and cement baskets.

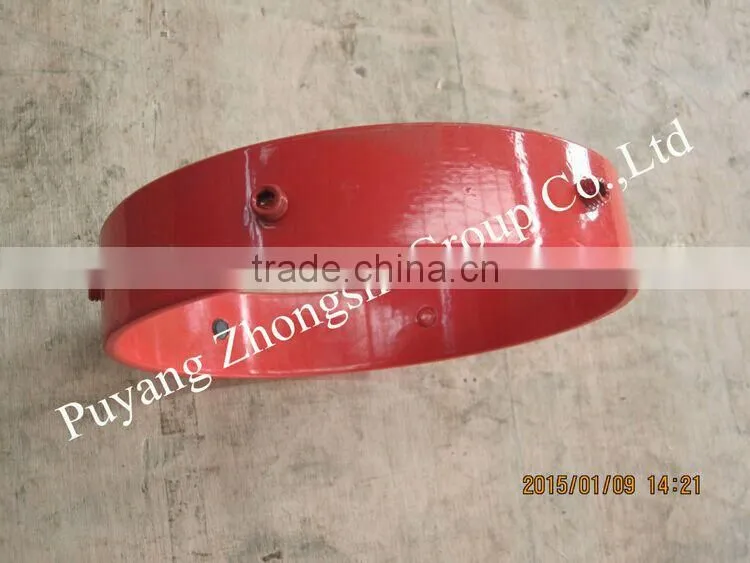

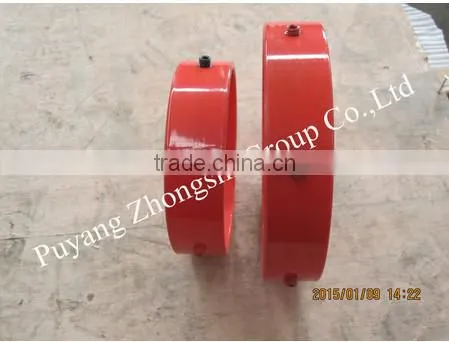

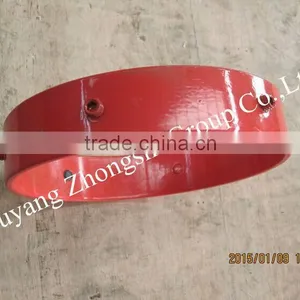

Stop collar or stop ring is used to hold centralizers or cement baskets on any position of casing, which ensures the positions of centralizers or cement basket to meet the design. The stop collar or stop ring are available in three types: knock-on type , Spiral nail type and Set screw type.
Technical Parameters:
| Specification(in) | ID(mm) | OD(mm) | Holding Force(kn) |
| 13 3/ 8” | 338 | 350 | 40 |
| 10 3/ 4” | 272 | 284 | 40 |
| 9 5/ 8” | 245 | 257 | 40 |
| 8 1/ 8” | 206 | 218 | 40 |
| 7 5/ 8” | 193 | 285 | 30 |
| 7” | 177 | 189 | 30 |
| 5 1/ 2” | 139 | 151 | 30 |
| 5” | 126 | 138 | 24 |
| 4 1/ 2” | 114 | 126 | 24 |

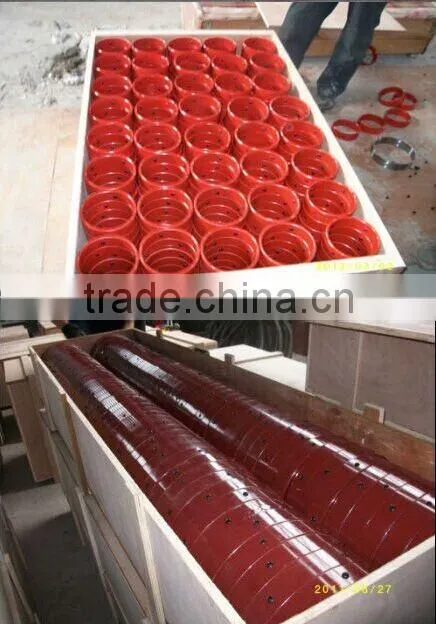

products and packing
welcome contact me for set screw collars
