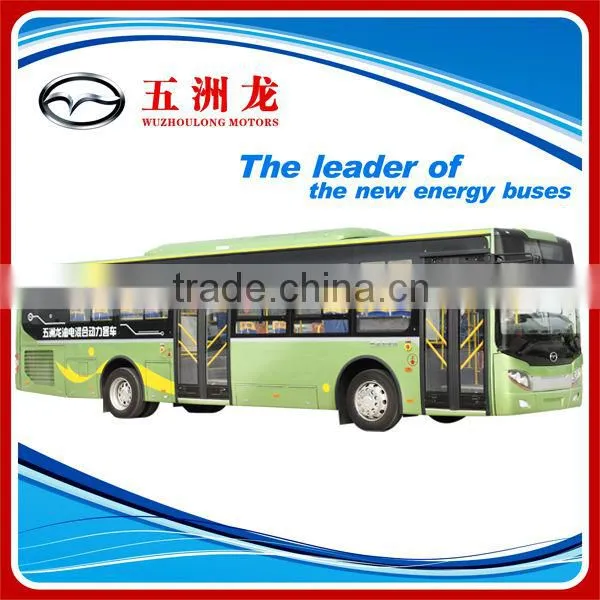

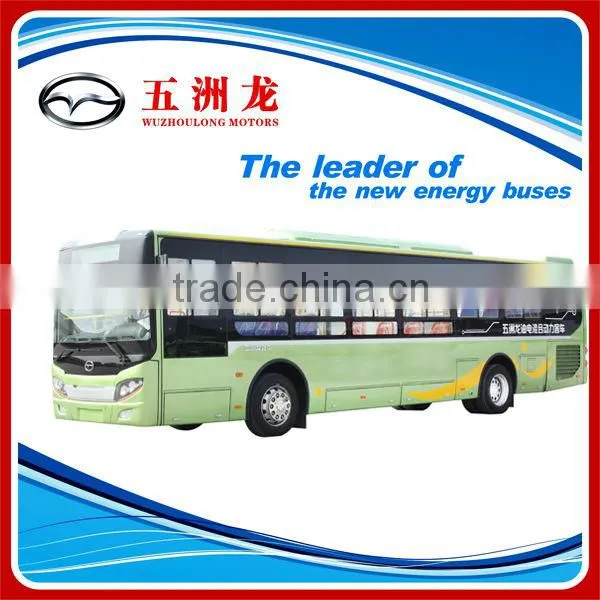

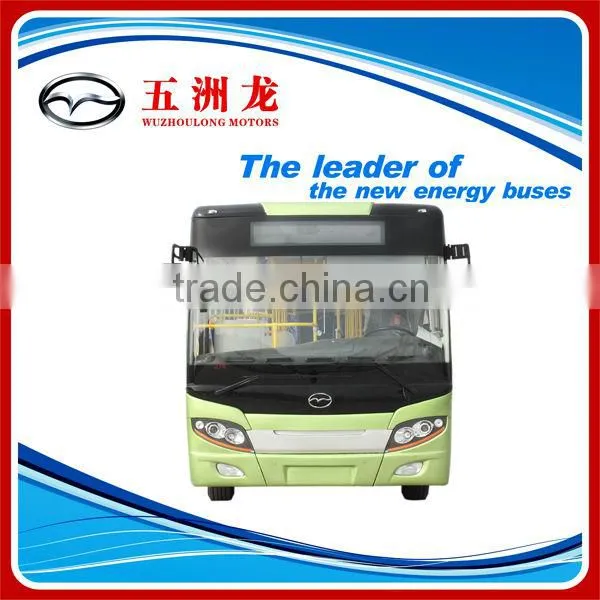

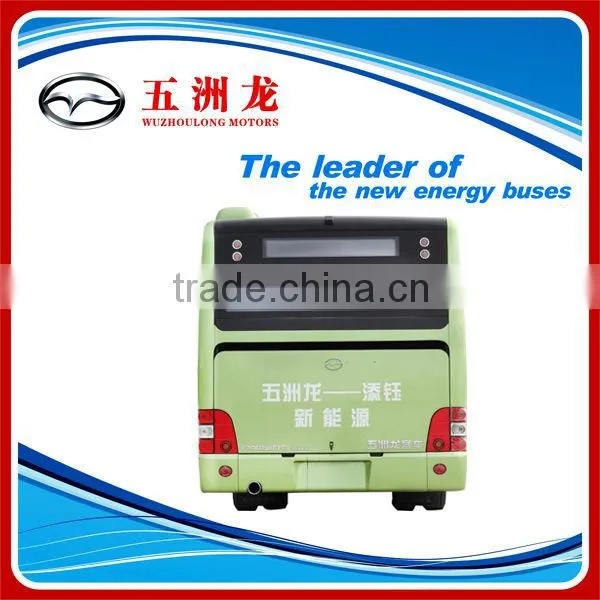

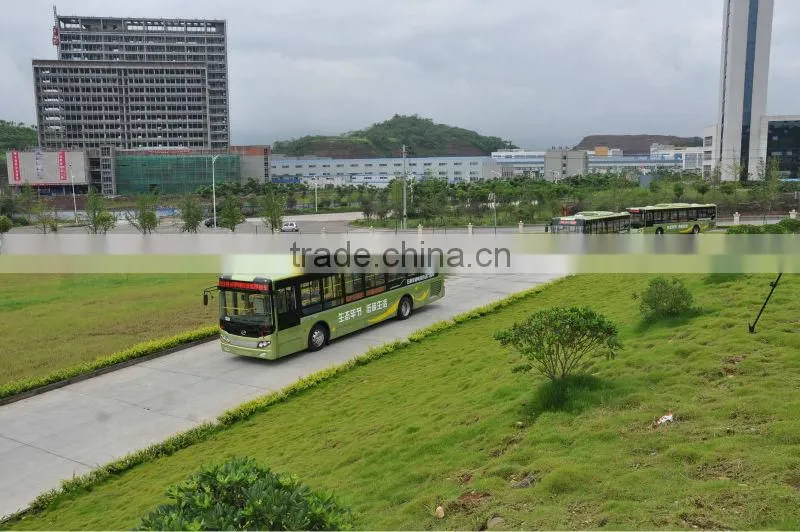

Detailed configuration of 30 seater hybrid fuel city bus dimension 11.5M
| Overall Parameter | |
| Overall length (mm) | 11490 |
| Overall width (mm) | 2500 |
| Overall height (mm) | 3140 |
| Wheelbase (mm) | 5600 |
| Front/Rear overhang (mm) | 2490/3400 |
| Approach/departure angle (°) | 7//7 |
| Front/Rear Tread (mm) | 2020/1860 |
| Gross Weight(kg) | 17300 |
| Rated Passenger | 24-41 |
| Top Speed (km/h) | 70 |
Engine Parameter
| Model | YC6J200 42 |
| Manufacturer | Yuchai |
| Engine Position/Fuel | Rear/Diesel |
| Engine Type | Inline 6 cylinders, 4 stokes, water cooled, turbo charger, inter cooler |
| Max. Power (ps/ r/min) | 200ps/2500r/min |
| Max Torque (N.m/r/min) | 730Nm/1200-1700r/min |
| Displacement(L) | 6.5 |
| Cylinder×Bore (mm) | 105×125 |
| Emission standard | Euro IV |
Chassis Parameter
| Model/Manufacturer | FDG6110D5 Wuzhoulong |
| Main Motor model | YPQ220M-6B main motor,with rotary encoder/Dalian Tianyuan |
| Driving battery model | Haerbin Coslight Battery |
| Clutch | Diaphragm spring clutch |
| Front axle | 6.5T DongfengEQ153,Front axle 6.5T |
| Drive axle | DongfengEQ153,Rear axle 13T |
| Suspension | Front3 rear4 leaf sping, front transverse stabilize bar |
| Transmission | ZF Integral power steering |
| Brake | Dual-circuit air brake comply with ECE standard,front disc rear drum braking |
| Fuel Tank | 200L |
| Tyre | 275/70R22.5 6pcs |
| Storage battery | AC172RA 140A 24V |
| Others | Rili ABS, Automatic slack adjuster,Automatic lubrication system |
Body
Body construction |
Monocoque |
Interior Trim |
Integral molding intenerate interior trim |

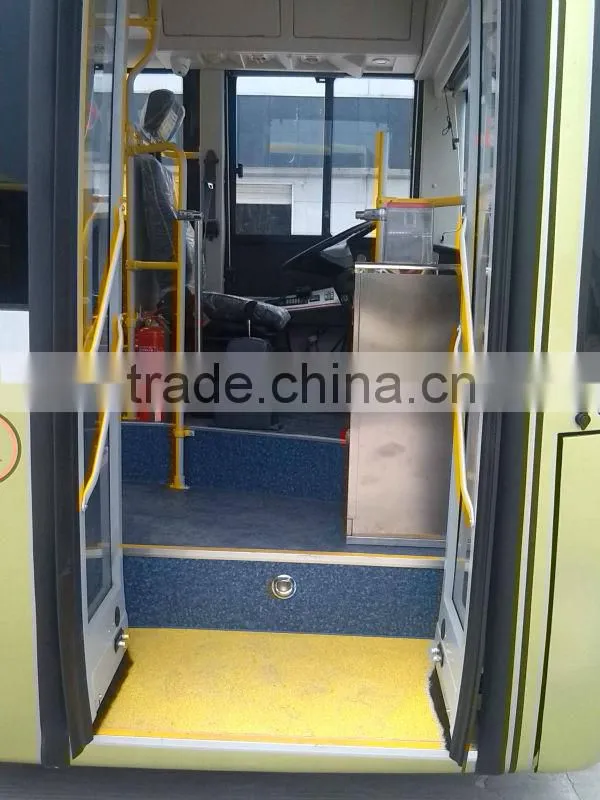

Door and pump |
Front and Rear double inter-swing door,Pneumatic pump |
Windblock ,side window |
Panoramic laminated front windshield ,tempering rear windshield, side window arewindow in window |
Rearview system |
Rod rear view mirror, Inner mirror, monitoring for down and up |
Warm wind/defrosting |
Plumbing defrosting |
Audio system |
MP3 |
Lights |
Front& Rear combination lamp,Strip cabin lights |
Windscreen wiper |
Scrape type of wiper with scrubber |
Seats |
Plastic seats, 26+1, adjustable driver seat |
Floor leather |
Anti-slipping floor leather |
Lacquer |
China solid lacquer |
A/C |
32000kcal/h top fixed |
Handle |
Yellow plastic spraying roller spend steel tube armrest |
Others |
|
At present, the international business has covered more than 40 countries and regions.Products are exported to Middle East, South America, Africa, Russia and Europe and the United States and other high-end market, and has been in Chile, Hong Kong, Macao, Sudan, Syria and other countries and regions established after-sales service network, and 2011 in the united Arab emirates sign a sole agency.
With our service policy---support from maintainer,easily damaged parts and spare parts.Wuzhoulong warranty is to ensure excellent performance of Wuzhoulong bus.So service as bellow would be supplied:
1.According to the quality,certain senior maintainers(5 or above working experience) would be dispatched to the export country to take charge of maintenance at spot,technology training and aftersales service.
2.For the large quantity,a service network consisting of service station and spare parts warehouse would be established.
3.For every export bus,one set of easily damaged parts in value of RMB5000 for free and one list of parts and their prices for 3 years long would be supplied.
4.Each order would be supported with a series of free advertising things.Including well-illustrated catalogs,CDs and so on.
5.According to the policy on bus maintenance,maintenance for CBU is 80 thousand kilometers or one year,and the one for engine is 180 thousand kilometers or one year,subject to the one which reaches the requirement firstly.
