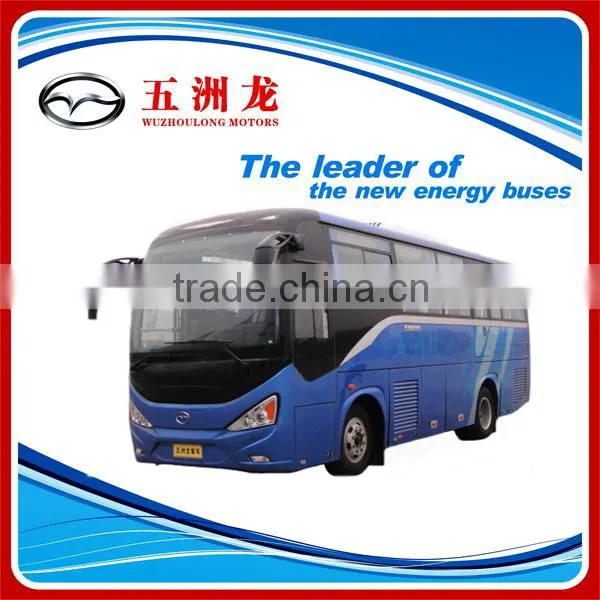

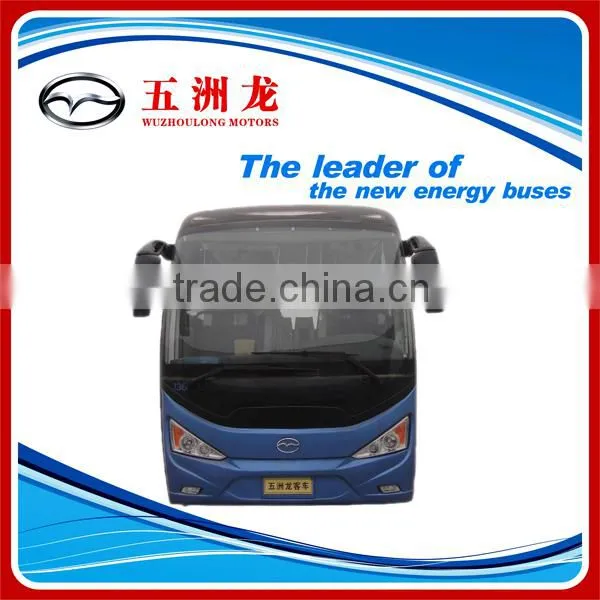

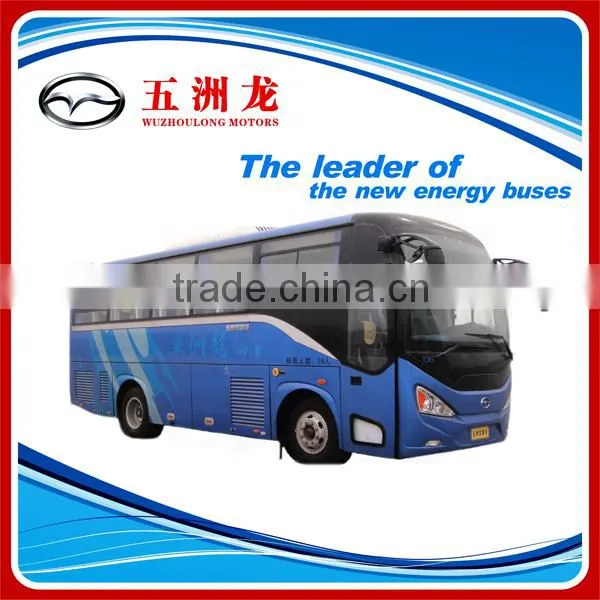

Thailand Widely Used Electtric New Travel Bus

Name: Thailand Widely Used Electtric New Travel Bus
Brand: Wuzhoulong
SKU: 107168473
Availability: InStock

US$ 50,000 - 80,000 MOQ: 1 Unit

Key Specifications

Seats:

Other, 56/15-24

Emission Standard:

Other

Transmission Type:

Manual

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Seats Other, 56/15-24

Emission Standard Other

Transmission Type Manual

Max Speed 71 - 90 km/h

Steering Position LHD

Fuel Type Electric

Dimensions (L x W x H) (mm) 8051*2400*3050mm

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number FDG6801EVG

Thailand widely used electtric new travel bus

Overall Parameter
Overall Length(mm)			8430
Overall Width(mm)			2380
Overall Height (mm)			3150
Max. Weight(kg)			10200
Rated Passenger			56/17-30
Top Speed (km/h)			≥75(km/h)
Engine Parameter
Position/Fuel type		Front /CNG
Max Torque (N.m/r/min)		420/1200-1600
Displacement (L)		3.759
Emission Standard		Euro IV
Chassis Parameter
Gear box	Manual 5 speed.
Clutch	φ350 single, dry, diaphragm spring clutch.
Suspension	leaf spring
Steering	Power steering LHD
Brake	Meeting standards, double circuit air brake.
Motor	120aH*2 /55A 28V
Body
Door	Front double,Rear double pneumatic inward-swing passenger door with anti-pinch function.
A/C	20000kcal/h Top fixed AC ;
Heating system/ defrost	water-heating defrost system
Seats	17-26Plastic passenger city bus seats, an adjustable driver seat
