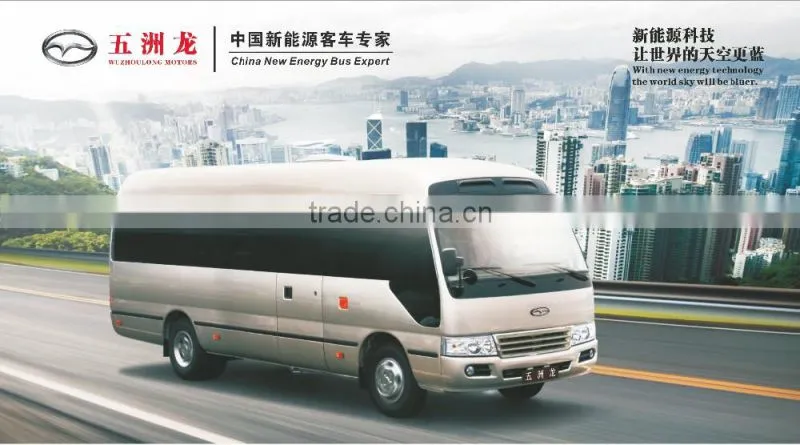

15 seats comfortable electric power coaster bus
| Overall Parameter | |
| Overall length (mm) | 7340 |
| Overall width (mm) | 2380 |
| Overall height (mm) | 3050 |
| Wheelbase (mm) | 3300 |
| Front/Rear overhang (mm) | 1910/2130 |
| Approach angle/ departure angle (°) | 11/11 |
| Front/rear tread (mm) | 1860/1612 |
| Gross weight(kg) | 9000 |
| Rated passenger | 40/16-25 |
| Top speed (km/h) | 80 |
| Engine Parameter | |
| Engine model | NQ120N4 |
| Engine manufacturer | Dongfeng Nanchong |
| Engine position/ fuel | front/CNG |
| Engine type | Inline cylinders,4 strokes ,water-cooling ,turbo-intercool |
| Max power(ps/r/min) | 92/2800 |
| Max torque(N.m/ r/min) | 340/1200~1600 |
| Displacement(L) | 3.759 |
| Emission standard | Euro. IV |
| Chassis Parameter | |
| Chassis model /manufacturer | EQ6680KTN40 |
| Transmission | Manual five files with synchronizer |
| Clutch | single dry spring , Driven plate diameter φ330 ,Hydraulic long-distance manipulation ,gas power |
| Front axle | ''H" section forged modeling |
| Driving axle | Integrate punching Shell , 5 T, gear ratio 4.875 |
| Suspension | More pieces of steel plate spring (front nine /rear 11), level 3 step |
| Steering | power steering |
| Braking | Accord with standard double loop ECE air brake, drum brakes, energy storage spring in car brake |
| Gas bottle | (80X4)320L |
| Tyre | 8.25-16 6pcs |
| Charging / generation | 120Ah×2/55A 28V |
| Body | |
| Body construction | Semi-Monocoque |
| Interior Trim | Molding soften the interior ,roof-PVC , side plate- fibre board,Bus rings |
| Door and pump | Front single ,rear double inner swing |
| Windblock ,side window | Panoramic laminated front windshield ,tempering rear windshield, side window arealuminium alloy sliding window |
| Rearview system | Insert the rearview mirror, endoscopes |
| Warm wind/defrosting | Plumbing defrosting |
| Audio system | MP3 |
| Lights | Combination headlight, Combination rearlight, 3 rectangle top lights |
| Windscreen wiper | Scrape type of wiper with scrubber |
| Seats | Plastic seats,15+1,adjustable driver seat |
| Floor leather | China floor leather |
| Lacquer | China lacquer |
| A/C | 16000kcal/h top fixed |
| Luggage door | Turn tilting iron hatch |
| Handle | Yellow plastic spraying roller spend steel tube armrest |
| Others |
Foldable sidecurtain, front half block of type curtain curtain, driver abat vent, extinguisher(4Kg×2), front/mid/rear light box guideboard, safe hammer 4pcs. |
Q: Could you say something more about Wuzhoulong ?
A: Wuzhoulong is a gourp company , The headquater located in Shenzhen . Wuzhoulong has 3 branches , respectively in Chongqing , Shenyang and Guangdong ,Jieyang . Totally coveing 1.1 millons square kilometers .owning 7000 employees (R&D staff over 600 persons ) and enjoying the anually production capacity of 45,000 units .
Charaterized with wuzhoulong new energy buses as its main products, Wuzhoulong has developed more than 150 varieties of products covering all bus fields, such as hybrid buses , pure electric bus , new energy bus , diesel bus and coach , Its sales more than 40 countries in the world .
Q :Why choose Wuzhoulong Bus ?
A: We are focus on city bus & coach & school bus for more than 30 years . also we are the earliest one to developing the newenergy bus in China . also the earliest one to export the world .
We are the pioneer of the new energy bus in China
Q: What's the packing & shipping way & delivery time ?
A: For the buses , we use the nude packing by SEA., for some spare parts , we ship by AIR or by Express .
Q: What's the payment terms ?
A: T/T 30% when order confrimed . 70% balance payment by T/T or L/C
