Long distance Coach bus

Specifications

Dimension: 10990* 2500* 3600mm
Top speed: 100km/h
Gross weight: 16500kg
Diesel fuel and LNG fuel are optional.

Our products can be customized,

small order quantity is acceptable.





                                                Specification

                                                                              Overall Parameter

Overall length(mm)	10990
Overall width  (mm)	2500
Overall height  (mm)	3600
Wheelbase(mm)	5350
Front/Rear overhang  (mm)	2350/3290
Approach/departure angle(°)	10/9
Front/Rear Tread(mm)	2035/1860
Gross Weight(kg)	16500
Rated Passengers	24-49
Top Speed   (km/h)	≤100



                                                Engine Parameter

Engine Model	YC6L280-42
Engine man	Yuchai
Engine Position/Fuel	real /  diesel
Type	Inline cylinders,6 strokes, High pressure common rail electric jet
Max Power (ps/r/min)	280/2200rpm
Max Torque (N.m/ r/min)	1100 N.m /1200~1700 rpm
Displacement(L)	8.424
Emission standard	Euro IV



                                               Chassis Parameter

Chassis Mode/Manufacture	SX6114LM93
Transmission	Qijiang  QJS6-90,Three soft shaft long-distance manipulation
Clutch	single dry diaphragm springφ420,  Hydraulic long-distance manipulation,  air power
Front axle	5.5T Dongfeng Dana,  disc brake
Driving axle	11T Dongfeng Dana,  speed ratio 4.10,  drum brake
Suspension	Air suspension
Steering	Power steering, double gimbal adjustable steering shaft, adjustable steering wheel, steering wheel diameterφ500
Brake	Fit ECE standard dual-circuit air braking system, front disc brake and rear drum brake, Energy storage spring in car brake.
Tank	400L
Tyre	11R22.5-14PR, 6pcs
Charging generator	200Ah×2/150A 28V
Others	Copper water tank with electromagnetic clutch fan,

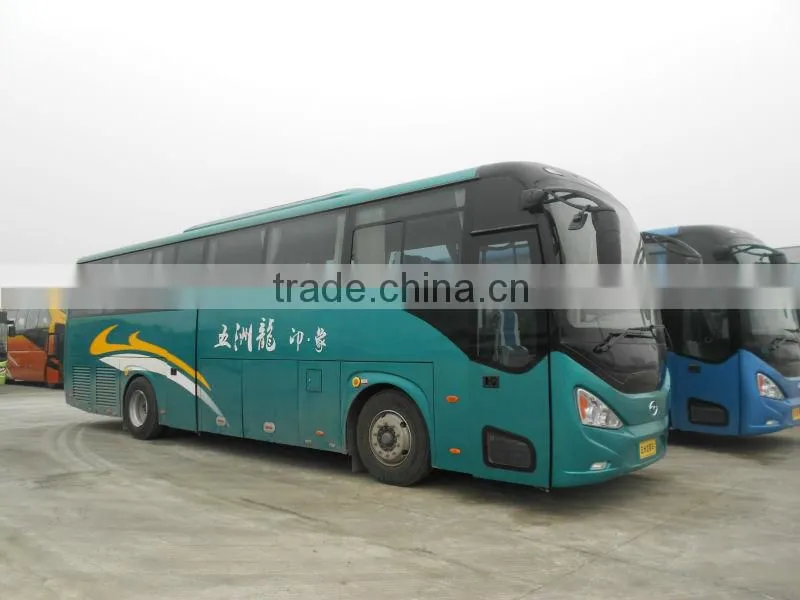

Different painting:
