1kw wind power generator is an equipment to convert wind energy into electric power which is changed into
storage battery group. It can be widely used in rich wind areas but without normal energy supply from any
power system .It is capable of providing power for lighting, TV, telecommunication equipment and so on.
| Model | 1K |
| Rated Power | 1000W |
| Max Power | 1500W |
| Blades Rotor Diameter | 2.8m ( 9.18 ft.) |
| Blade Quantity &Material | 3 Pcs / FRP |
| Rated Rotate Speed | 380(r/min) |
| Start Torque | 0.4(N.M) |
| Generator Type | PMG AC Direct Drive |
| Generator Material | Aluminium body+Copper wire+Nd-Fe-B |
| Normal Output Voltage | 24V 48V 120V 240V 300V 360V 500V provide customized service |
| Optional Output Voltage(DC) | 24-500V |
| Start Wind Speed | 2 m/s |
| Rated Wind Speed | 9m/s |
| Working Wind Speed | 3-25m/s (6.72-56 mph) |
| MAX.Design Wind Speed | 40m/s (89.6mph) |
| Tower Height | 6m(19.68ft)higher available |
| Top Weight | 55kg |
| Protection method | yaw + auto brake |

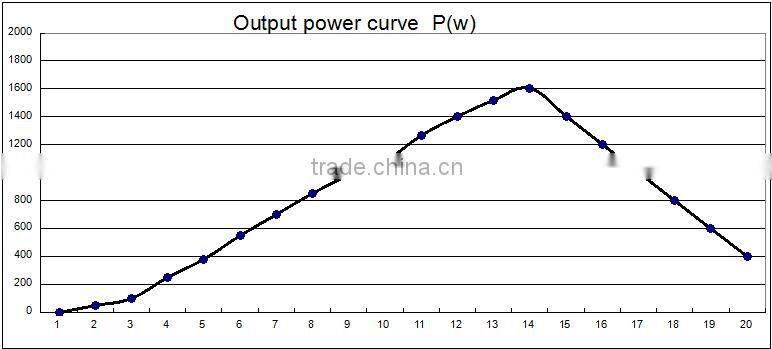

1kw wind turbine output power curve:
Application:
• Household, Garden, farm
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting

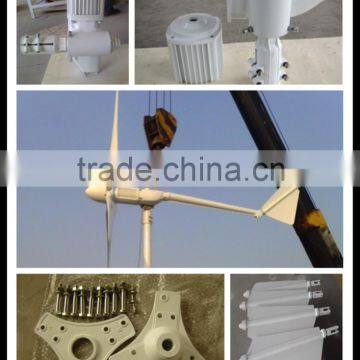

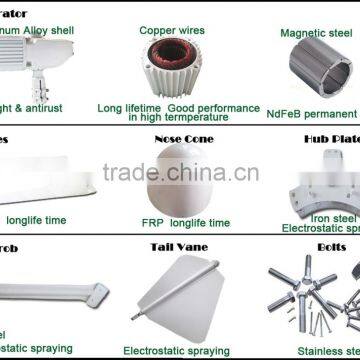

Wind turbine assembly:

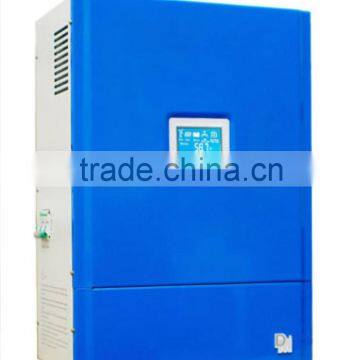

Matched controller
Controller converts 3 phrase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched Inverter:
Matched grid tie inverter 1.5kw/2kw; pure sine wave inverter single phrase 2kva/3kva
Inverter output voltage, frequency can be manufactured according to different countries request.
Grid tie inverter from ABB, Ginlong,BOS...
Wind turbine tower:
Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
Other fixed pitch wind turbine model list:
| Model | Working voltage |
| FD2.2-300W | DC24V |
| FD2.5-500W | DC24V |
| FD2.8-1KW | DC24V/DC48V |
| FD3.2-1.5kw | DC24V/DC48V |
| FD3.2-2KW | DC24V/DC48V |
| FD3.8-2.5kw | DC48V |
| FD4-3KW | DC48v |
| FD4-4KW | DC120v |
| FD5-5KW | DC120v |
| FD8-10KW | DC120V |
| FD8-15kw | DC240 |
| FD10-15KW | DC240V |
| FD10-20KW | DC500V |
| FD10-25KW | DC500V |
| FD12-30KW | DC500V |
| FD2.8-500W | DC24V |
| FD3.2-1KW | DC24V/DC48V |
| FD3.8-2KW | DC24V/DC48V |
| FD6-5KW | DC120V |
| FD10-10KW | DC120V |
| FD12-20KW | DC500 |
1. Wind turbine use inner foam protection outer Plywooden case .
2. Tower with Foam package only .
3. Solar panels controller invertor with inner carton box outer plywooden case.
4.Pakage size and weight please refer to our sales.
5.Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.
Packing details for 1 set wind turbine main body + 1 set controller with dump load:
| Item# | Product description | Spec | Unit | Q'ty | Remark |
| 1 | main body | FD2.8-1kw24v | set | 1 | Including splitpin |
| hex nut | M20*1.5 | pcs | 1 | 8.8 grade | |
| flat washer | φ20 | pcs | 1 | ||
| hexagon bolt | M10*25 | pcs | 4 | ||
| hexagon bolt | M10*80 | pcs | 4 | ||
| hex nut | M10 | pcs | 4 | ||
| flat washer | φ10 | pcs | 8 | ||
| 2 | blades | FD2.8 L=1.34m | pcs | 6 | |
| 3 | hub | FD2.8 | set | 1 | |
| hexagon bolt | M12*80 | pcs | 9 | 8.8 grade | |
| hex nut | M12 | pcs | 9 | ||
| flat washer | φ12 | pcs | 9 | ||
| elastic pin | φ5*25 | pcs | 3 | ||
| hexagon bolt | M6*20 | pcs | 3 | 8.8 grade | |
| flat washer | φ6 | pcs | 3 | ||
| 4 | nose cone | FD2.8 | pcs | 1 | |
| 5 | tail vane | 1kw | set | 1 | |
| 6 | tail rod | 1kw | pcs | 1 | |
| hexagon bolt | M10*70 | pcs | 2 | 8.8 grade | |
| self lock nut | M10 | pcs | 2 | ||
| flat washer | φ10 | pcs | 2 |
System Design Service ;

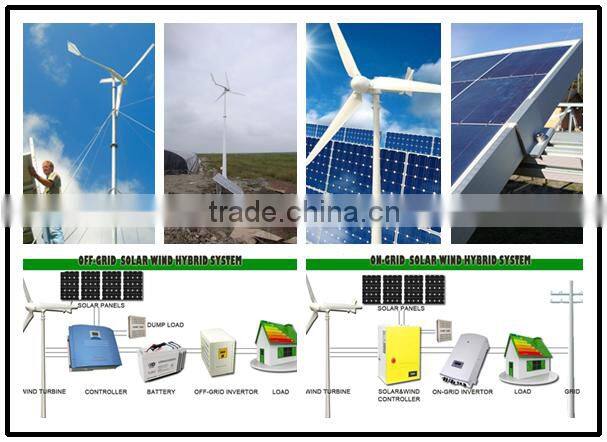

We cam design diffirent system for customers according their request For example, on-grid or off-grid system , solar wind hybrid system or solar wind diesel generator system like below:
After Sale Service :
Solar panels &main parts of wind turbine are free 3 years warranty, controller and invertor are 2 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;

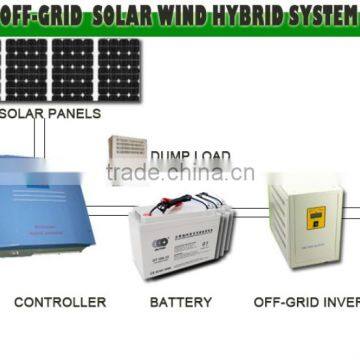

Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
