Help CenterHENRYD! IEC/CE Approved Horizontal 2000w Wind Turbine Generator 24V 48V Off Grid System, Easy Installation, Low Rpm 350rpm
Related Products
-
HAWT! Horizontal Type 5KW Wind Turbine-generators, Wind Electric Generator 5kw @ 10m/s, 6m Blades Rotor Diameter PMAUS$ 2,300 - 2,400MOQ: 1 Set -
Fixed Pitch Yawing Type 20kw Wind Power Generator/wind Generator for Home With Permanent Magnet AlternatorUS$ 7,500 - 8,500MOQ: 1 Set
-
Low Noise Level, Best Performance 1.5kw Small Wind Turbine Generator With Mini Wind Power Generator for Home UseUS$ 500 - 700MOQ: 1 Set
-
POP ! 2kw Wind Generator Hybrid Wind Solar System for Home Use off Grid System , 2kw Wind Power GeneratorUS$ 600 - 650MOQ: 1 Set
-
POPULAR! 1kw Wind Turbine Generator 24v for Home Use, Wind Electric Generator 1kw Free Power Generator Low Rpm PmgUS$ 500 - 600MOQ: 1 Set
off grid 2kw wind turbine Use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
Grid tie 2kw wind turbine use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
| Model | 2K |
| Rated Power | 2000W |
| Max Power | 3000W |
| Blades Rotor Diameter | 3.2m(10.50ft) |
| Blade Quantity &Material | 3 Pcs / FRP |
| Rated Rotate Speed | 350(r/min) |
| Start Torque | 0.8(N.M) |
| Generator Type | PMG AC Direct Drive |
| Generator Material | Aluminium body+copper wire+Nd-Fe-B |
| Normal Output Voltage | 24v 48V 96v 120v 240v 360v 500v |
| Optional Output Voltage(DC) | 24-500V |
| Start Wind Speed | 2m/s |
| Rated Wind Speed | 9m/s |
| Working Wind Speed | 3-25m/s (6.72-56 mph) |
| MAX.Design Wind Speed | 40m/s (89.6mph) |
| Tower Height | 6m(19.68ft)higher available |
| Top Weight | 68kg |
| Protection method | yawing, speed limited controller |

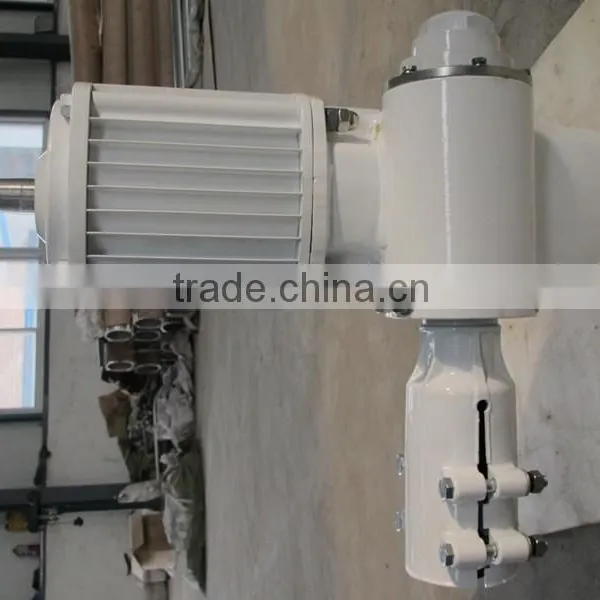

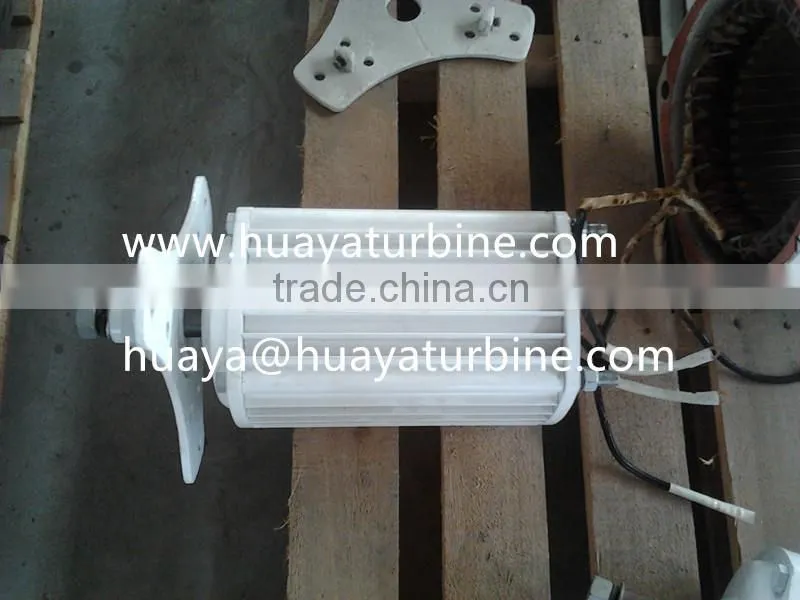

2kw pma :
permanent magnet, 3 phrase AC generator.
Start up torque: 1.2 N.m
Rated rotation speed: 350rpm
Rated output power: 2kw
Max output power: 3kw
Working voltage: 12V-500v. or special request.
Outside size: 370*185*185 mm
Net weight: 20kgs
4 pairs of poles
aluminum shell
Star connection

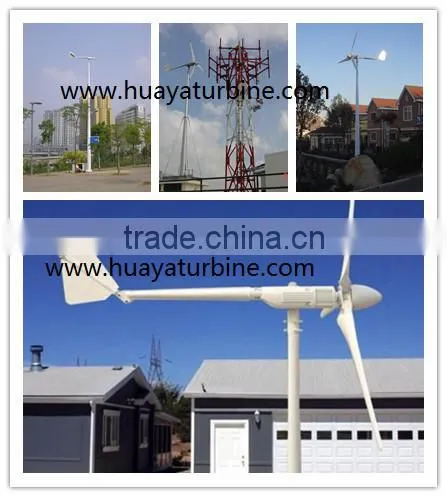

Recommend for

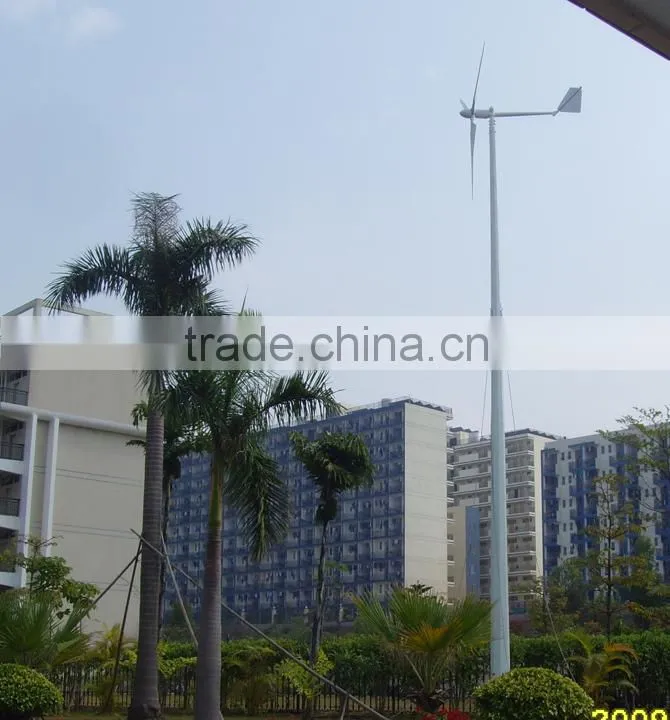

• Household, Garden, farm
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting

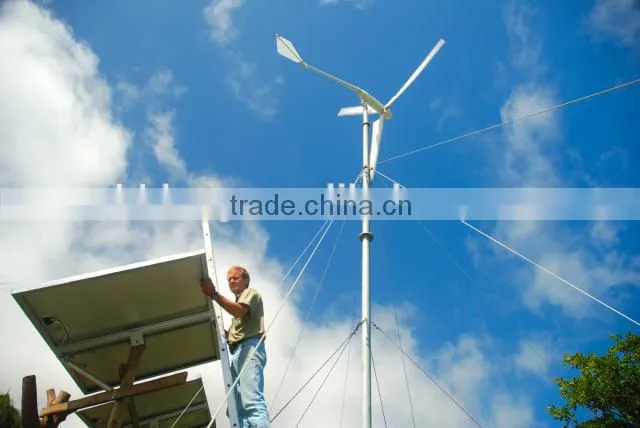

The off grid/grid tie wind turbine generator is often hybrid used with solar panels for commercial/residential.

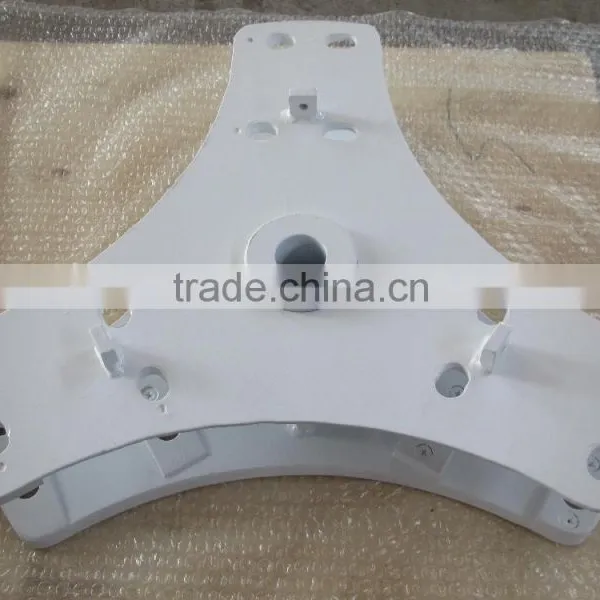

Wind turbine main body assembly

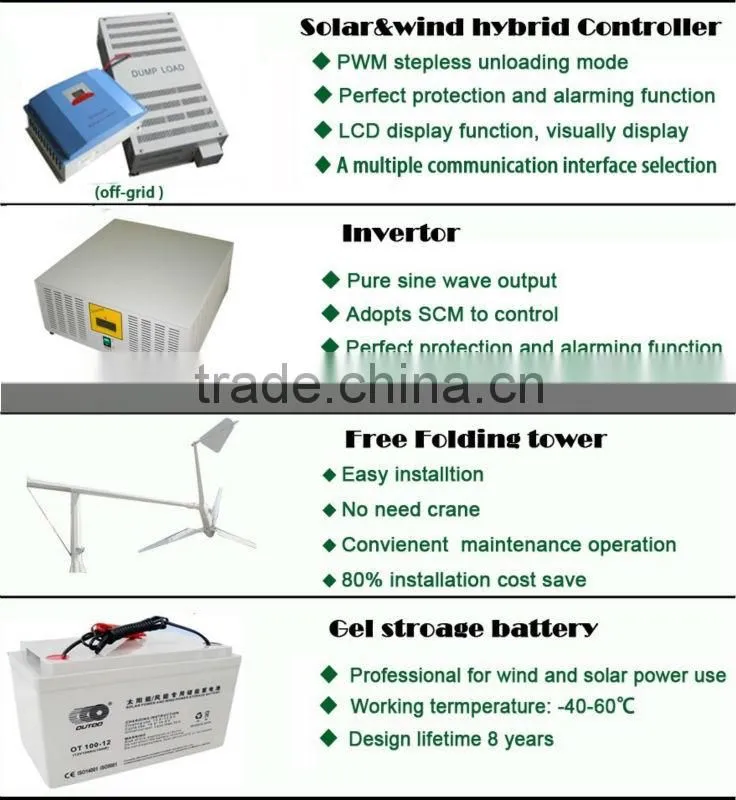

controller, inverter, tower, storage battery for off grid system
controller with dump load, grid tie inverter for grid tie system
2kw wind turbine Working system:

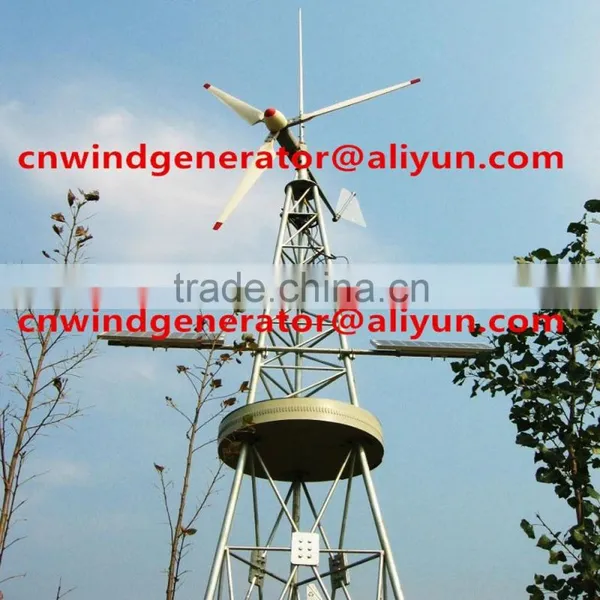

2kw wind turbine( + 1kw/2kw/3kw solar panel) off grid system
Including: wind turbine with tower/solar panel with frame + hybrid controller with dump load + battery group + pure sine wave inverter
2kw wind turbine (+ 1kw/2kw/3kw solar panel )on grid system
Including: wind turbine with tower/(solar panel with frame +) hybrid controller with dump load + grid tie inverter

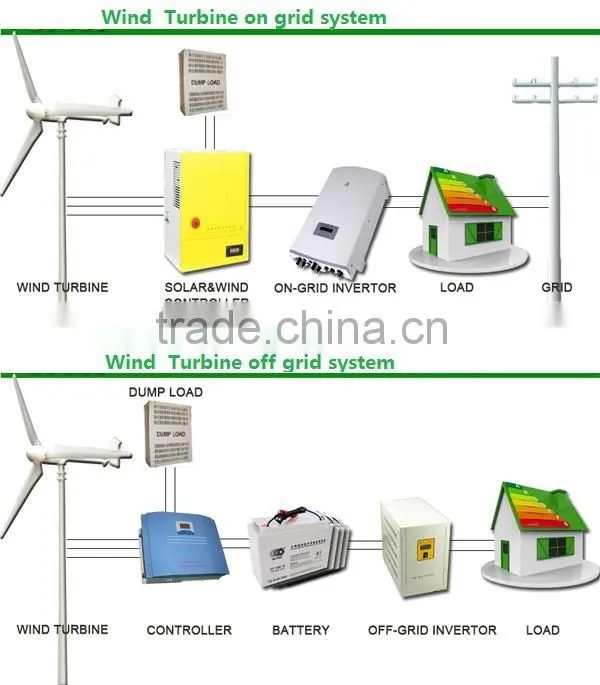

On grid system wiring diagram
1. off grid 2kw wind turbine generator for home use inner foam protection outer Plywooden case . 0.32cbm, 93kgs.
on grid 2kw wind turbine generator + PWM controller with dump load: 1 plywood case, 0.39cbm, 110kgs.
2. Tower with soft package only .
3. controller invertor with inner carton box outer plywooden case.
4.Pakage size and weight please refer to our sales.
5.Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.
System Design Service

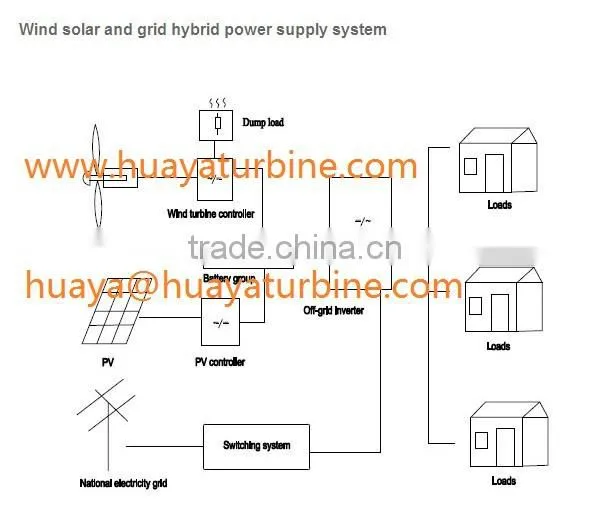

We can design diffirent system for customers according their request For example, on-grid or off-grid system , solar wind hybrid system or solar wind diesel generator system like below
After Sale Service
Our main off grid/grid tie 2kw wind turbine generator are free 3 years warranty, controller and invertor are 1 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
Certifications of our company
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
