Specifications
Feature1) Conductor: Fe&Cuni
2) Insulation: polyimide tape
3)Shield: 304stainless steel wire
4)Rating:-60deg.C~ 400deg.C

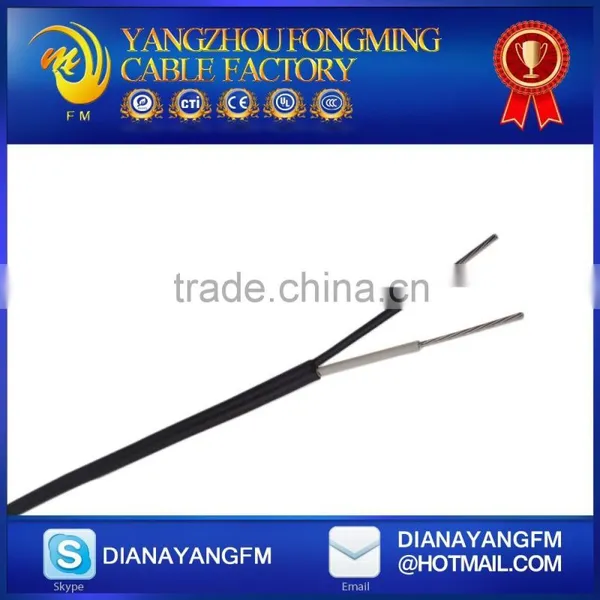

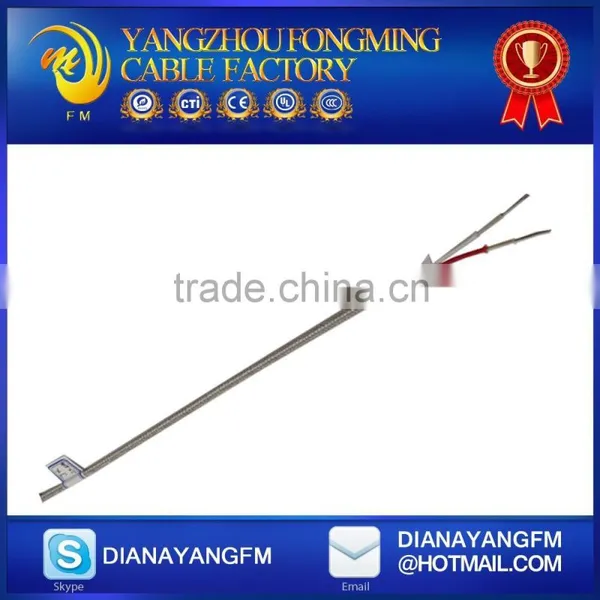

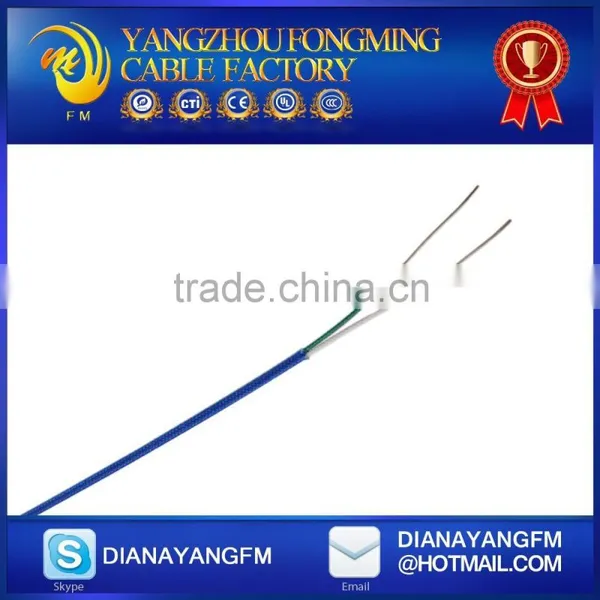

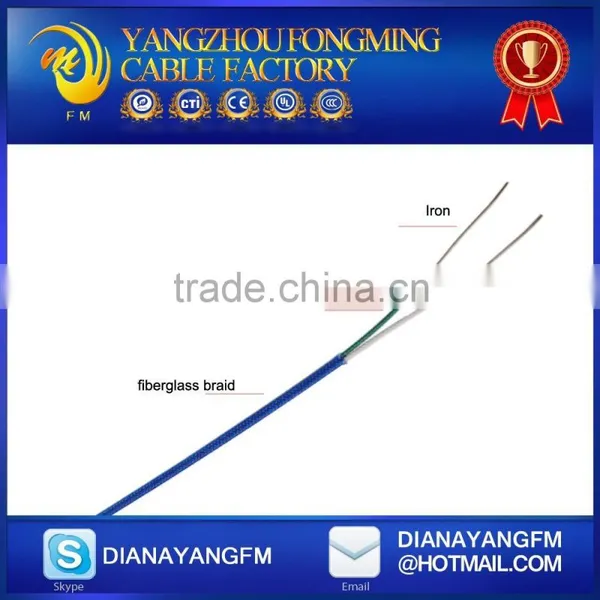

Thermocouple wire J type
1) Conductor structure: 19*0.15mm
2) Average Lapping Insulation Thick.: 0.12mm~0.13mm
3) OD: 2.0*3.1 tolerance 0.1 mm
4) Spark Testing: 1.5KV
5) Voltage Testing: 1KV
6) Temp.: 300 deg. celsius
7) Voltage: 300V
Rolls or Spools, as customer's requirement
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
Welcome Contact Us For More Detail Information
ATTN:Diana yang
Skype:dianayangfm
Tel:86-15152726626
Tel:86-514-88784080
Fax:84-514-88786699
Address. Industrial Center,XiaJi Town BaoYing County, Yangzhou Jiangsu, China.
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer 20 years' experience, producing universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Thermocouple wire, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001 International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Relying on a wealth of production experience, advanced production equipment, scientific and strict production process and constant pursuit of technological advances to ensure the product quality.
We will serve for new and existing customers sincerely with good quality, reasonable prices and superior after-service.
Q: Are you manufactory or trading company?
A: We are the Manufactory specialized in all kinds of silicone electrical wire, high temperature electrical wire for 20 years. The wires we supply have obtained UL certificate.
Q: Can you show us your products test report?
A: Of course. You will have our products test report soft copy after asking. We send our products to TESTING every year. And our products test resort can pass RoHS & REACH standard.
Q: How can I get the samples?
A: You should pay for the transportation freight of samples and our samples’ cost, while the samples’ cost can be refundable after you place the order.
Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size and your area.
Q: How long can I expect to get the sample?
A: The samples will be ready for delivery in 5 days.The samples will be sent via express and arrive in 3-5 days.
Q: How to order?
A: Please send us your purchase order by Email or Fax (+86 514088786699) or you can ask us to send you a Proforma Invoice for your order. We need to know the following information for your order.
1. Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2. Delivery time required.
3. Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.
4. Forwarder's contact details if there's any in China.
We will offer you the price that referring to your detail request, so please kindly inform us of the material, cross section, rated temperature, rated voltage, color and other requirement you refer, and the special offer will be given.
