Heavy Rail of 38kg/m

Heavy Rail of 38kg/m thumbnail-1
Heavy Rail of 38kg/m thumbnail-2
Heavy Rail of 38kg/m photo-1

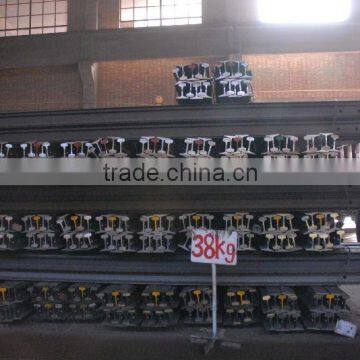

Heavy Rail of 38kg/m photo-2
US$ 500 - 520 MOQ: 25 Tons
Key Specifications
Get Latest Price
Standard:
GB
Grade:
U71Mn
Rail Heigth:
134mm
Contact Supplier Request Quote Chat Now
Hebei Yongyang Special Steel Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard GB
Grade U71Mn
Rail Heigth 134mm
Bottom Width 114mm
Web Thickness 13mm
Head Width 68mm
Length 12m,12.5m
Place of Origin Hebei, China
Brand Name Yong Yang
Model Number 38kg/m
Type Heavy Rail
Application Other, industrial project
Weight 38.73kg/m
Secondary Or Not Non-secondary
Bolt Hole Diameter 29mm



Product Description

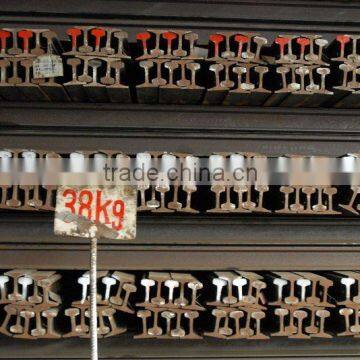

38kg/m Heavy Steel Rail:

Name :38kg Heavy steel rail
Theory Weight (KGS/M):38.733kg/m
Materials:U71Mn
Length(m):12, 12.5m

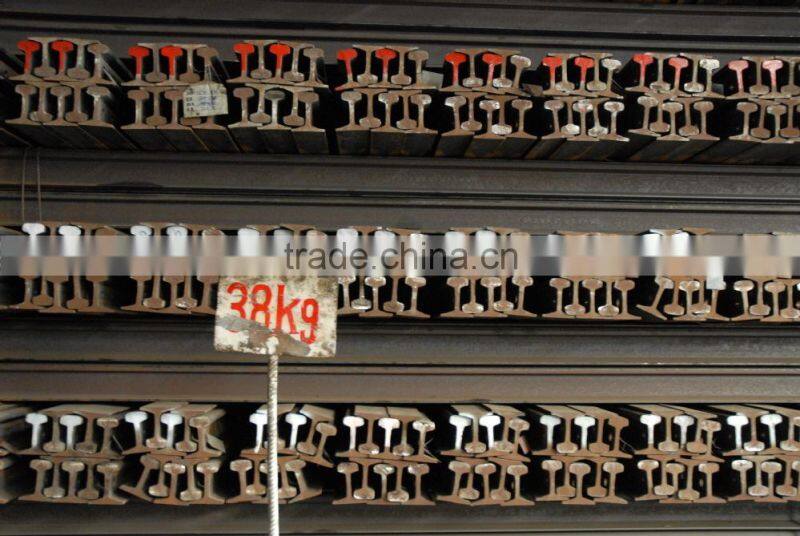

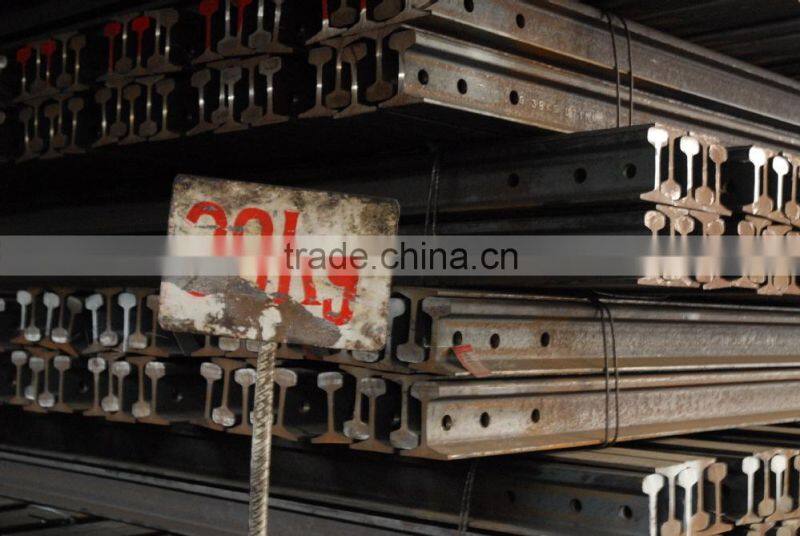

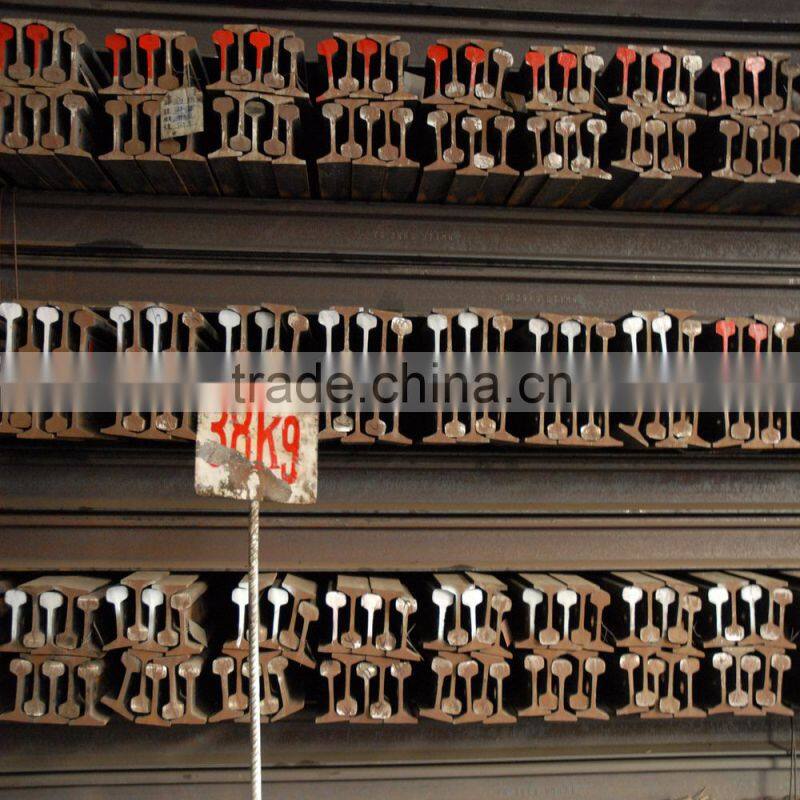

heavy rail of 38kg/mheavy rail of 38kg/mheavy rail of 38kg/m



Packaging & Shipping

 packed by bundle with enlaced iron wire.

deviler the good after receiving payment by buyers



Company Information

 Products information

THE LIST OF YYGT

Name of Commodity Specificaton Materials   (Steel Grade) Standard of Products Theory Weight (kgs/M) Length of Dimension     (M) Packed In Bundle With Iron Wire (pcs/bundle)
Light Rail 4kgs/m Q235 Q/YG001-2014 4kgs/m 6,8 75
8kgs/m Q235 Q/YG001-2014 8.42kgs/m 55
12kgs/m Q235 GB11264-2012 12.2kgs/m 36
15kgs/m Q235/55Q GB11264-2012 15.2kgs/m 6,8,9,10 28
18kgs/m Q235/55Q Q/YG001-2014 18.06kgs/m 21
22kgs/m Q235/55Q GB11264-2012 22.3kgs/m 21
24kgs/m Q235/55Q Q/YG001-2014 24.46kgs/m 21
30kgs/m Q235/55Q GB11264-2014 30.1kgs/m 15
Heavy Rail 38kgs/m U71Mn GB2585-2007 38.733kgs/M 12,12.5 10
43kg/m U71Mn GB2585-2007 44.653kgs/M 10
50kgs/m U71Mn GB2585-2007 51.514kgs/M 10
  45/50Mn Q/YYG002-2008 31/34/36/39/41kgs/M 12,12.5 10
Crane Rail QU70 U71Mn YB/T5055-93 52.8kgs/m 12 10
QU80 YB/T5055-93 63.69kgs/m 10
QU100 YB/T5055-93 88.96kgs/m 5
QU120 YB/T5055-93 118.1kgs/m 5
I-beam of Hot-Rolled Section Steel for Mine 9# Q235 YB/T5047-2000 17.69kgs/m 8,9,10 28
11# 20MnK/ Q235 YB/T5047-2000 26.05kgs/m 18
12# YB/T5047-2000 31.18kgs/m 15
Hot-Rolled U-Beam Steel for Mine Timbering  25U 20MnK/ Q275 GB4697-2008 24.95kgs/m 8,9,10,12 15
29U GB4697-2008 29kgs/m 15
36U GB4697-2008 35.87kgs/m 15


Name of Commodity Specification Materials Standard of Products Theory Weight (kg/set) Length of Dimension (MM) Packed in Bundle with Iron Wire (SETS)
(Steel Grade)
Fish Plate 8kg/m Q235 GB11265-89 0.80-1.00 ≈270-385 50
12kg/m 1.00-1.50 ≈409 50
15/18kg/m 1.90-2.80 ≈372-409 25
22kg/m 3.30-7.50 ≈426-510 20
24kg/m 3.30-9.60 ≈426-510 10
30kg/m 6.00-11.00 ≈561 5
38/43kg/m GB185-63 19.20-29.6 ≈790 1
50kg/m 21.2-35.2 ≈790 1

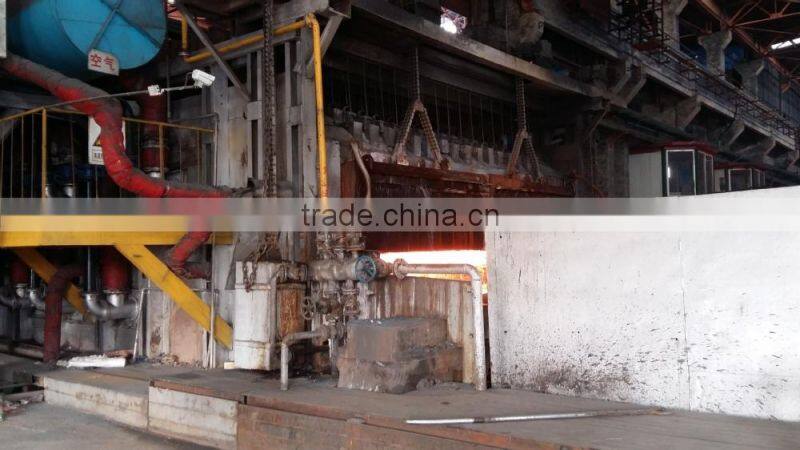

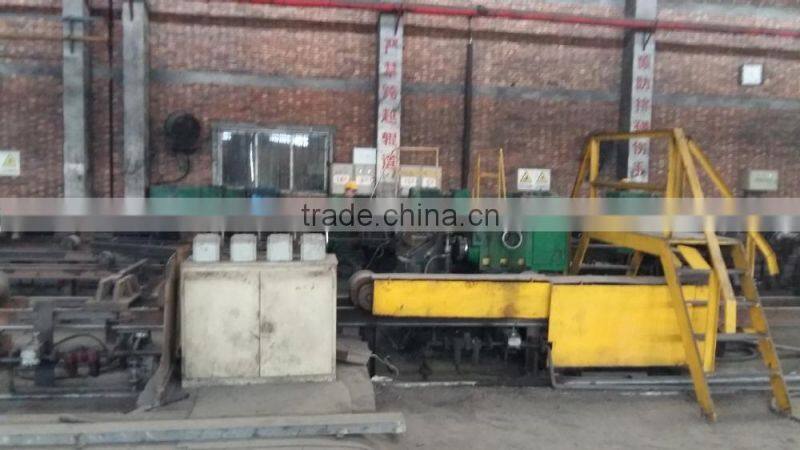

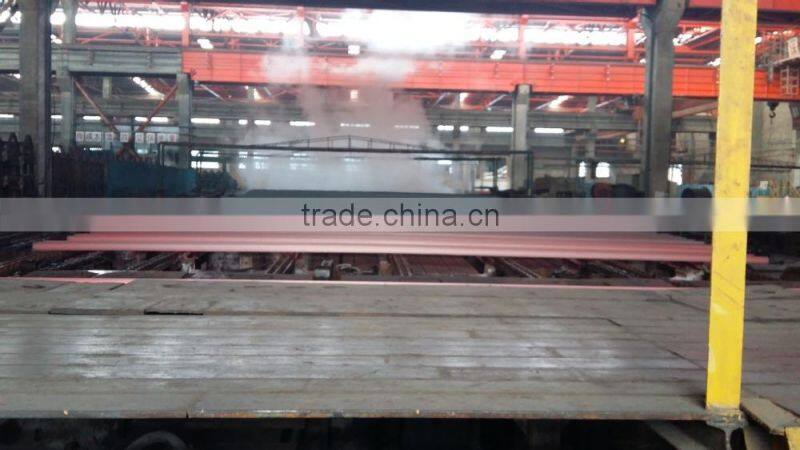

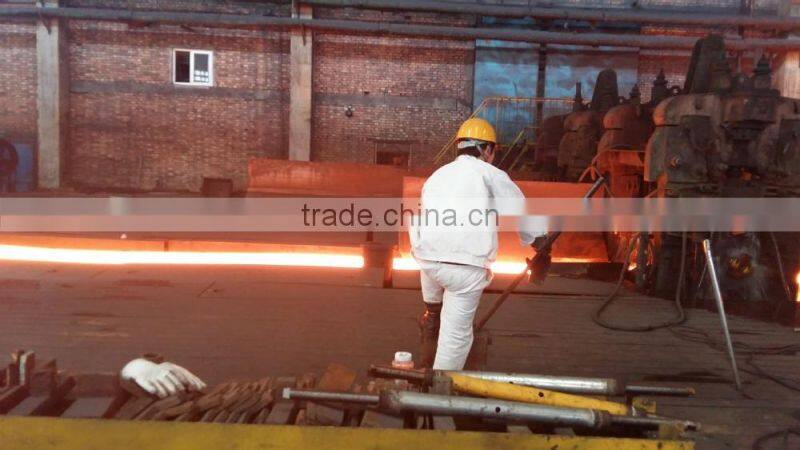

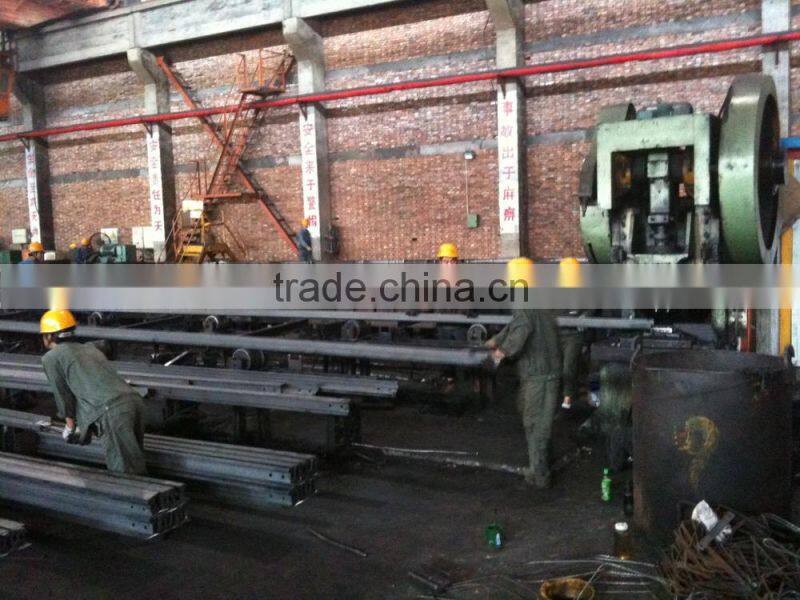

 Producing process

heavy rail of 38kg/mheavy rail of 38kg/mheavy rail of 38kg/m



heavy rail of 38kg/mheavy rail of 38kg/m



Introdution

Except the Light Rails(steel Rails), the main products of our company are Heavy Rails of 38kgs/m,43kgs/m,50kgs/m, material is U71Mn/U71. Standard is GB2585-2007,Q/YYG002-2008.Length is 12m,12.5m



Crane Rails of QU70,QU80,QU100,QU120, material is U71Mn,Standard is YB/T5055-93.Length is 12m,12.5m



I-Beam of Mine Usage Steel of 9#,11#,12#,material is 20MnK/Q235.Standard is YB/T5047-2000.Length is 8m,9m,10m



U-Beam of The Mine Steel Channel of 25U,29U,36U,material is 20Mnk/Q275. Standard is GB4697-1997,Q/YYG006-2008,GB4697-1991.Length is 8m,9m,10m,12m



Fish Plate of 8kgs,12kgs,15kgs,18kgs,22kgs,24kgs,30kgs,38kgs,43kgs/m,material is Q235B.Standard is GB11265-89,GB185-63. Length is 45.5cm,53.54cm,61.73cm,71.48cm,79cm



Our products are selling to more than 30 provinces,cities and municipalities and  part of them are sold to South America and Southeast Asian countries as well as many other countries.



Our company has the best facility and test instrument with a fully-completed inspection system and advanced science technical so as to keep our goods having the excellent quality for which have won and and obtained the fine comments from our consumers from now on more than ten years.



Since established,our company insists on the principle of high quality and best service. Our company in the year of 2001 obtained the International Quality Management System Certificate ISO9001:2000.  It was nominated as the supplies of coal mine support products by Chinese government in 2007. Our main products light rail of "YongYang" brand were successively awarded the high-quality goods of Hebei Province,"YongYang" brand is a famous brand and best qualified goods of China.



Hebei YongYang Steel Company Ltd is a joint venture with registered capital of RMB 23million in 1993. It has more than 3000 employees including more than 120 persons who are the high-level technical professionals and managers.



The total fixed assets value of our company is around RMB1.1 billion and has the land area of mill for total more than 200000 square meters. In 2008, the total production value reaches RMB4.9 billion  and the profit and tax income reaches 240million. The annual designed output of steel of our company is 600000 tons for which including four rolling line of roll mill.



We are ready to do our best to provide with superior service for our customers and faithfully wish to cooperate with all friends from all over the world.
