Specifications
wire cable manufacturers
1. nickel copper+fiberglass braide+steel braided
2. Ratings: 450deg.C, 300V/ 500V/600V
shielding wire cable manufacturers
Description

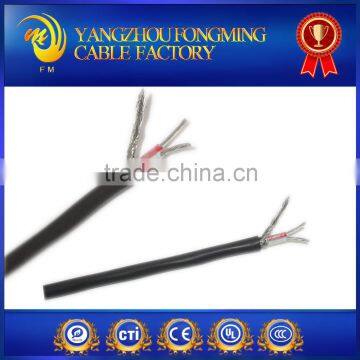

Name: Shield Cable
Model No.: GW01-P Shield fiberglass braided Cable
Size: 4*1.0 3*1.5mm2
Feature
Ratings: -60°C~+450°C,300/ 500V
Conductor: NICKEL COPPER, NICKEL
Insulation: MICA FIBERGLASS ,PTFE TAPE
Shield: STEEL WIRE
Sheath: FIBERGLASS
Application
Internal wiring of elect
(Size) |
(Conductor) |
Thickness(mm) |
Shielding Density%
|
OD(mm) |
Conductor MAX resistance(20°C) (Ω/km) |
Control of hazardous substances |
3*0.75 |
24/0.20 |
0.6±0.1 |
>85 |
6.0±0.3 |
26.7 |
Meet ROHS instructions |
3*1.0 |
32/0.20 |
0.6±0.1 |
6.3±0.3 |
20.0 |
||
3*1.5 |
30/0.25 |
0.65±0.1 |
7.2±0.3 |
13.7 |
||
3*2.5 |
50/0.25 |
0.7±0.1 |
8.4±0.3 |
8.21 |
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producing universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Factory Information
Factory Size (ters): |
25,000-30,000 square meters |
Factory Location: |
Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: |
7 |
Number of R&D Staff: |
21 - 30 People |
Number of QC Staff: |
21 - 30 People |
Contract Manufacturing: |
OEM Service Offered Design Service Offered Buyer Label Offered |
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
Universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
Q: Are you manufactory or trading company?A: We are the Manufactory specialized in all kinds of silicone electrical wire, high temperature electrical wire for 20 years. The wires we supply have obtained UL certificate.
Q: Can you show us your products test report?A: Of course. You will have our products test report soft copy after asking. We send our products to TESTING every year. And our products test resort can pass RoHS & REACH standard.
Q: How can I get the samples?A: You should pay for the transportation freight of samples and our samples’ cost, while the samples’ cost can be refundable after you place the order.
Q: How much the transportation freight of samples?A: The freight depends on the weight and packing size and your area.
Q: How long can I expect to get the sample?
A: The samples will be ready for delivery in 5 days.The samples will be sent via express and arrive in 3-5 days.
