GB Heavy Steel Rail 38kg/m

GB Heavy Steel Rail 38kg/m thumbnail-1
GB Heavy Steel Rail 38kg/m photo-1
US$ 600 - 700 MOQ: 100 Tons
Key Specifications
Get Latest Price
Standard:
GB
Grade:
U71Mn/45Mn/50Mn
Rail Heigth:
134mm
Contact Supplier Request Quote Chat Now
Hebei Yongyang Special Steel Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard GB
Grade U71Mn/45Mn/50Mn
Rail Heigth 134mm
Bottom Width 114mm
Web Thickness 13mm
Head Width 68mm
Length 12,12.5m
Place of Origin Hebei, China
Brand Name YongYang
Model Number 38kg
Type Heavy Rail
Application Other, Mining & Industry
Weight 38.733kg/m
Secondary Or Not Non-secondary
Bolt Hole Diameter 26mm

38kg Heavy  Rail U71Mn

Product Introduction

Heavy Rail:
Specification(KGS/M):38Kg, 43Kg, 50Kg
Standard: GB2585-2007
Material: U71Mn/45Mn /50Mn
Length: 12-12.5 meters/PC.

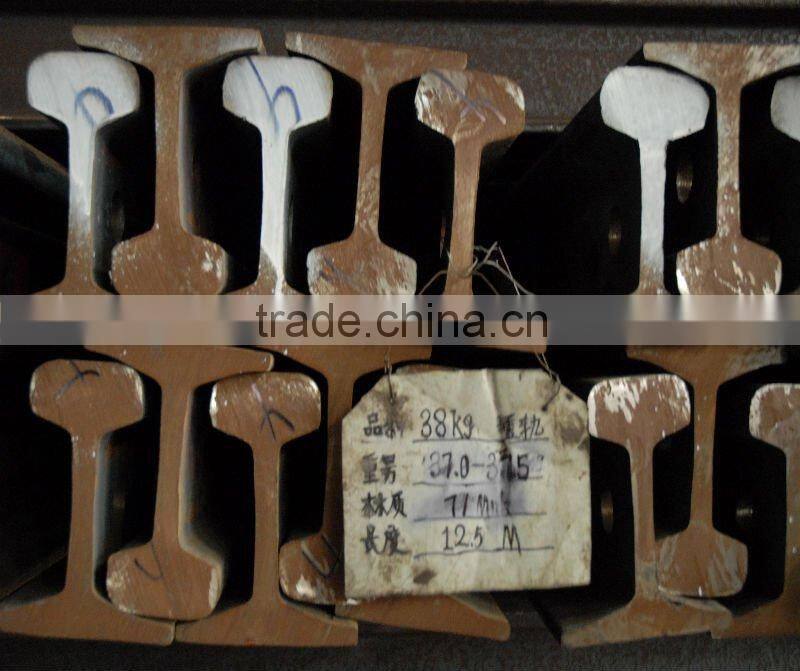

GB heavy Steel Rail 38kg/m



THE LIST OF YYGT

Name of Commodity Specificaton Materials Standard of Products Theory Weight Length of Dimension (m) Packed in bundle with iron wire (pcs/bundle)
Light Rail 4kg/m Q235 Q/YYG001-2008 4kg/m 6,8,9,10 75
8kg/m Q235 Q/YYG001-2008 8.42kg/m 55
12kg/m Q235 GB11264-89 12.2kg/m 36
15kg/m Q235/55Q/50Q GB11264-89 15.2kg/m 28
18kg/m Q235/55Q/50Q YB222-63 18.02kg/m 21
22kg/m Q235/55Q/50Q GB11264-89 22.3kg/m 21
24kg/m Q235/55Q/50Q Q/YYG001-2008 24.46kg/m 21
30kg/m Q235/55Q/50Q GB11264-89 30.1kg/m 15
Heavy Rail 38kg/m U71Mn/U71/45Mn GB2585-2007 Q/YYG002-2008 38.733 12,12.5 10
43kg/m U71Mn/U71/45Mn GB2585-2007 Q/YYG002-2008 44.653 10
50kg/m U71Mn/U71/45Mn GB2585-2007 Q/YYG002-2008 51.514 10
Crane Rail QU70 U71Mn YB/T5055-93 52.8kg/m 12,12.5 10
QU80 YB/T5055-93 63.69kg/m 10
QU100 YB/T5055-93 88.96kg/m 5
QU120 YB/T5055-93 118.1kg/m 5
I-beam of Mine Usage Steel 9# 20MnK/ Q235 YB/T5047-2000 17.69kg/m 8,9,10 28
11# YB/T5047-2000 26.05kg/m 18
12# YB/T5047-2000 31.18kg/m 15
U-beam Of The Mine Channel Steel 25U 20MnK/ Q235 GB4697-1991 Q/YYG006-2008 24.95kg/m 8,9,10,12 15
29U GB4697-1991 29kg/m 15
36U Q/YYG006-2008 35.87kg/m 15

Name of Commodity Specificaton Materials Standard of Products Theory Weight (kgs/set) Length of Dimension (cm) Packed in bundle with iron wire (set)
Fish Plate 8kg Q235B GB11265-89 0.8 +0.8 =1.6   50
1+1=2
12kg GB11265-89 1.1+1.1=2.2 45.5 50
2.6-3.0
15-18kg GB11265-89 3.6-4.0 53.54 25
4.6-5.0
5.6-6.0
22-24kg GB11265-89 6.6-7.0 61.73 20
7.6-8.0
8.4-9.0
30kg GB11265-89 14.4-15.0 71.48 10
16.4-17.0
43kg GB185-63 57.0-58.0 79 1

About Us

1, We are a professional manufacturer of all types of industrial rails under Chinese Standard which are used for mining or other industrial projects, and our main products include light rails, heavy rails, and crane rails, and accessories of fish plates, bolts and nuts etc. We have more than 20 years of history supplying above products.
2, We have continuously tried to improve product quality. Our annual production capability is more than one million tonnages.
3, Our products have already been exported to Poland, Romania, Russia, India, South America, Singapore, Philippines, Vietnam and Hong Kong, in 2001, we obtained the ISO9001:2008 quality management certification.
We hope to cooperate with more customers for mutual development and benefits.



Welcome your inquiries!
