24awg 22awg 18awg High Quality Ul 1007 Hook-up Wire
Description
1.Conductor: copper, tinned copper
2.Insulation: PVC
3.Ratings: 60 or 80deg.C, 300V
4.Size: 24awg 22awg 18awg
5.Color: As requirements
Application
Internal wiring of appliances. Tags may indicate the following: 600 V Peak - For Electronic Use Only.
Specification
Conductor |
Insulation |
Max Resistance at 20℃Ω/km |
|||
Size |
Structure |
Diameter |
Thickness |
Diameter |
|
24 |
11/0.16 |
0.66mm |
0.38mm |
1.42±0.2mm |
94.20 |
22 |
17/0.16 |
0.75mm |
1.51±0.2mm |
59.40 |
|
20 |
21/0.18 |
0.95mm |
1.71±0.2mm |
36.70 |
|
18 |
16/0.254 |
1.20mm |
1.96±0.2mm |
23.20 |
|
16 |
26/0.254 |
1.56mm |
2.32±0.2mm |
14.60 |
|

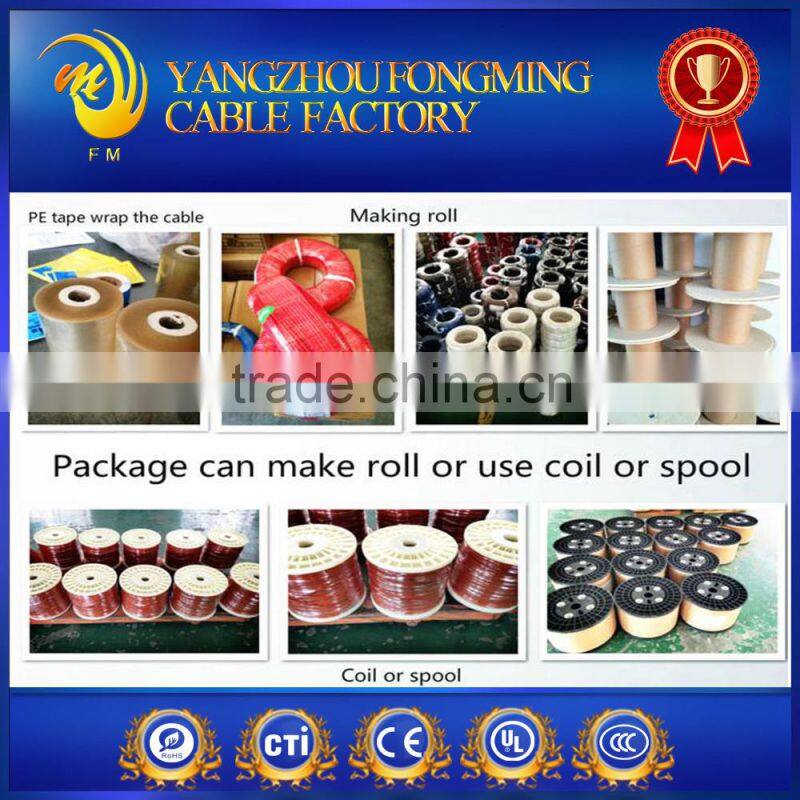

Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.

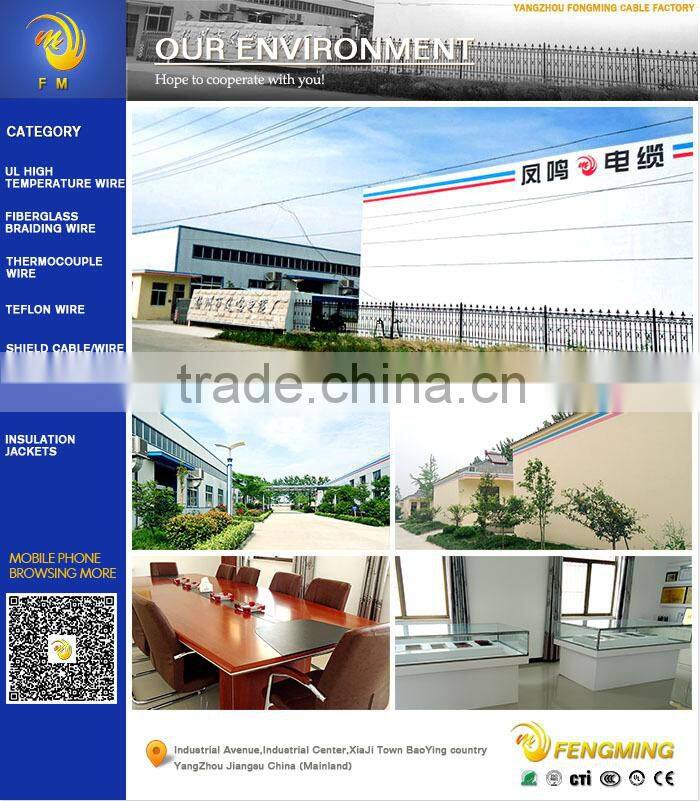

Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producing universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.

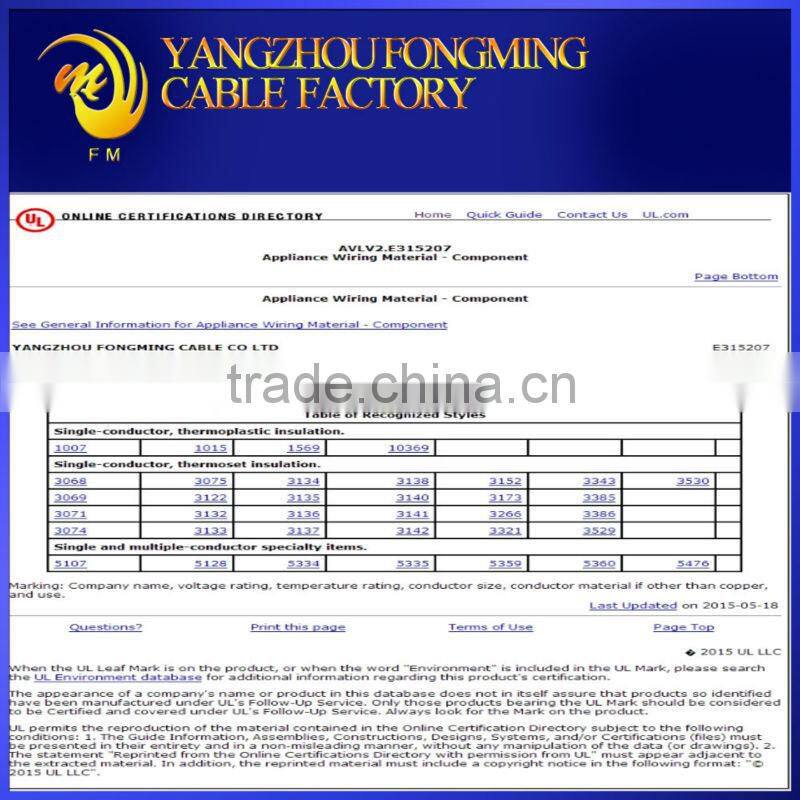

We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.

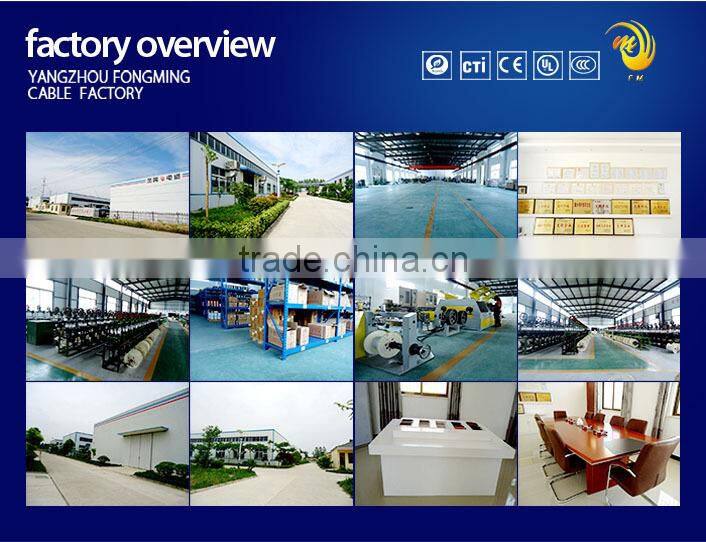

Factory Information
Factory Size (ters): |
25,000-30,000 square meters |
Factory Location: |
Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: |
7 |
Number of R&D Staff: |
21 - 30 People |
Number of QC Staff: |
21 - 30 People |
Contract Manufacturing: |
OEM Service Offered Design Service Offered Buyer Label Offered |
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
Universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
