SIHF 3 core silicone rubber insulation lamp cable
Structure
Conductor: Tinned copper, bare copper
Insulation: Silicone rubber
Jacket: Silicone rubber
Specification SIHF 3 core silicone rubber insulation lamp cable
Rated voltage |
300V/500V |
|||
Testing voltage |
2KV |
|||
Rated Temperature |
-60℃+180℃, Peaks to 230℃ |
|||
NO. |
Section mm2 |
Strand NO.× mm |
Outer Diameter mm |
Ref Weight kg/km |
VDE HO5S-K |
0.5 |
28×0.15 |
2.6 |
10.2 |
0.75 |
24×0.20 |
2.8 |
13 |
|
1.0 |
32×0.20 |
3.0 |
16.2 |
|
1.5 |
30×0.25 |
3.5 |
23 |
|
2.5 |
49×0.25 |
4.1 |
34.6 |
|
SIF |
0.2 |
12×0.15 |
1.8 |
4.5 |
0.3 |
17×0.15 |
2.0 |
6 |
|
0.4 |
23×0.15 |
2.3 |
7.5 |
|
0.5 |
28×0.20 |
2.4 |
9.1 |
|
0.75 |
24×0.20 |
2.6 |
12 |
|
1.0 |
32×0.20 |
2.8 |
13.8 |
|
1.25 |
40×0.25 |
2.9 |
17.4 |
|
1.5 |
30×0.25 |
3.1 |
19.8 |
|
2.0 |
41×0.25 |
3.3 |
26.2 |
|
2.5 |
49×0.25 |
3.6 |
30.2 |
|
4 |
56×0.30 |
4.5 |
46.5 |
|
6 |
84×0.30 |
5.2 |
70 |
|
10 |
84×0.40 |
6.8 |
117 |
|
16 |
126×0.40 |
8.0 |
169.5 |
|
25 |
196×0.40 |
9.4 |
257 |
|
SIHF/SIMH |
2×0.5 |
16×0.20 |
5.9 |
50 |
3×0.5 |
16×0.20 |
6.2 |
59 |
|
4×0.5 |
16×0.20 |
6.8 |
72 |
|
2×0.75 |
24×0.20 |
6.3 |
63 |
|
3×0.75 |
24×0.20 |
6.7 |
76 |
|
4×0.75 |
24×0.20 |
7.7 |
101 |
|
2×1.0 |
32×0.20 |
6.7 |
71 |
|
3×1.0 |
32×0.20 |
7.5 |
93 |
|
4×1.0 |
32×0.20 |
8.2 |
113 |
|
2×1.5 |
30×0.25 |
7.8 |
97 |
|
3×1.5 |
30×0.25 |
8.3 |
117 |
|
4×1.5 |
30×0.25 |
9.0 |
145 |
|
2×2.5 |
50×0.25 |
9.2 |
146 |
|
3×2.5 |
50×0.25 |
9.8 |
179 |
|
4×2.5 |
50×0.25 |
10.6 |
222 |
|

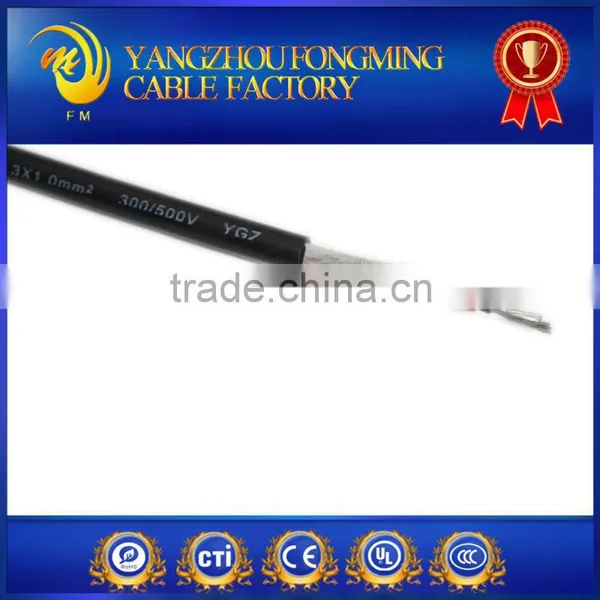

3 core SIHF silicone rubber insulation lamp cable
Rolls or Spools, as customer's requirement
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
Welcome Contact Us For More Detail Information
ATTN:Diana yang
Skype:dianayangfm
Tel:86-15152726626
Tel:86-514-88784080
Fax:84-514-88786699
Address. Industrial Center,XiaJi Town BaoYing County, Yangzhou Jiangsu, China.
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer 20 years' experience, producing universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Thermocouple wire, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001 International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Relying on a wealth of production experience, advanced production equipment, scientific and strict production process and constant pursuit of technological advances to ensure the product quality.
We will serve for new and existing customers sincerely with good quality, reasonable prices and superior after-service.
