Home > Products > Auto cable for lighting&sensor > silicone rubber 2 cores cable
silicone rubber 2 cores cable
- 10 Foot / Feet per Month
- shanghai ningbo shenzhen optional
- T/T Credit Card
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | fongming | |
Model Number | YGC | Type | Insulated | |
Application | Other, Ballast | Conductor Material | Other, Tinned copper | |
Conductor Type | Stranded | Insulation Material | Other, Silicone |
Product Description

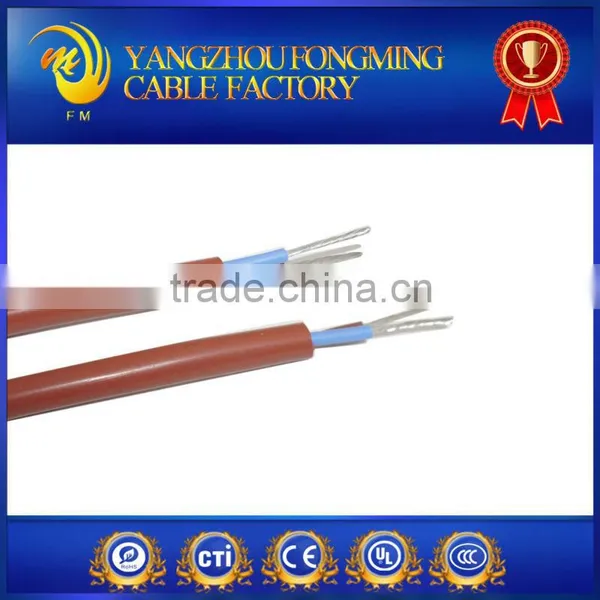

silicone rubber 2 cores cable
1, Rated voltage: 300 / 500V
2, the working temperature: -60 ~ + 200 ℃
3. Conductor: stranded tinned copper
4, Insulation: Silicone Rubber
5, sheath: Silicone Rubber
6, Color: Red / yellow / blue / white / black / yellow and green / brown / green, etc.
Conductor (mm) | Structure(mm) | Insulation thickness ( mm ) | Out diameter ( mm ) | Sheath thickness ( mm ) | Average diameter ( mm ) | 20 ℃ (Ω/km) |
2 × 0.2 | 7/0.20 | 0.40 | 1.40 | 0.90 | 4.60 | 94 |
2 × 0.3 | 16/0.15 | 0.40 | 1.50 | 0.90 | 4.80 | 71.2 |
2 × 0.5 | 28/0.15 | 0.50 | 2.0 | 1.0 | 6.00 | 40.1 |
2 × 0.75 | 24/0.20 | 0.60 | 2.40 | 1.20 | 7.20 | 26.7 |
2 × 1 | 32/0.20 | 0.60 | 2.60 | 1.20 | 7.60 | 20.0 |
2 × 1.5 | 48/0.20 | 0.60 | 2.80 | 1.30 | 8.50 | 13.7 |
2 × 2.5 | 49/0.25 | 0.70 | 3.50 | 1.5 | 10.0 | 8.21 |
1.Package length | 200meres 305meter 500meter |
2.Package method | Rolls spool or coil |
3:Ship port | Shanghai, Shenzhen Ningbo Lianyungang Port. |
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
America Australia Mexico South Africa
UA Colombia Ukraine Ecuador England Germany (ERGE)
French Italy(ZOPPAS) Denmark(TRIAX)
Russia India Iran Uruguay Ireland etc.
Trade & Market
Main Markets: | Oceania |
Total Annual Sales Volume: | US$50 Million - US$100 Million |
Export Percentage: | 61% - 70% |
Product/Service (We Sell): | Multilayer Fiberglass Braiding Wire,Mica Wie,Silicone Wire,Thermocouple Wire |
Number of Employees: | 101 - 200 People |
Our company is located in the history of Chinese history and culture of the ancient city, north of yangzhou, the famous hometown of charge - baoying, located in the beijing-hangzhou grand canal bank, beijing-shanghai expressway runs through north and south, convenient transportation, beautiful environment.
Our factory was founded in 2003, after 10 years of development, has a well-trained staff, factory employees 90 people, including management personnel 18 people, engineering technical personnel 20 people, the factory covers an area of 30000 square meters, factory building area of 10000 square meters.Achieve sales value of eighty million yuan, 2013 export value of $five million.Our factory in line with the service society, the enterprise concept of understanding the world, on the basis of quality and information, reputation and service for the guidelines, wholeheartedly welcome everywhere merchants to come to discuss cooperation, mutual benefit, hand in hand create a better future
Factory Size (ters): | 25,000-30,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country , Yangzhou Jiangsu,China |
Number of Production Lines: | 7 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
A: We are the Manufactory specialized in all kinds of silicone electrical wire, high temperature electrical wire for 20 years. The wires we supply have obtained UL certificate.
Q: Can you show us your products test report?
A: Of course. You will have our products test report soft copy after asking. We send our products to TESTING every year. And our products test resort can pass RoHS & REACH standard.
Q: How can I get the samples?
A: You should pay for the transportation freight of samples and our samples’ cost, while the samples’ cost can be refundable after you place the order.
Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size and your area.
Q: How long can I expect to get the sample?
A: The samples will be ready for delivery in 5 days.The samples will be sent via express and arrive in 3-5 days.
Q: How to order?
A: Please send us your purchase order by Email or Fax (+86 514088786699) or you can ask us to send you a Proforma Invoice for your order. We need to know the following information for your order.
1. Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2. Delivery time required.
3. Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.
4. Forwarder's contact details if there's any in China.
We will offer you the price that referring to your detail request, so please kindly inform us of the material, cross section, rated temperature, rated voltage, color and other requirement you refer, and the special offer will be given.
