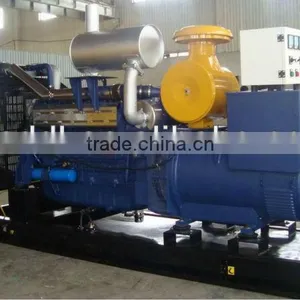

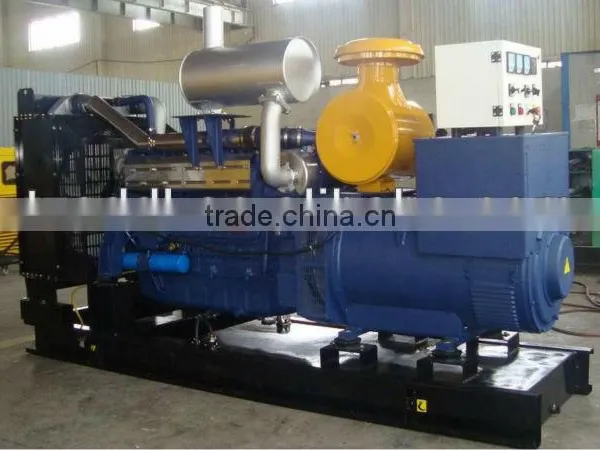

60Hz On sale OEM ISO 200kw 250kva Steyr generator sizing compact
Sudong Power is specialized in Diesel generator onshore and offshore from 10kw to 1200kw since 2003. We have long term cooperation with Cummins, Deutz, Perkins, Volvo, Steyr, Weichai and other engine company. For alternator, we offer Marathon, Stamford, Siemens, Sanbo, Landian and other Chinese brand for optional.
Any problem, please be free to contact me by skype: justinguo2006, Taizhou, China for instant communication!
Genset Specification
MODEL |
SDWS180ll |
PRIME POWER (KVA/KW) |
200/250 |
STANDBY POWER(KVA/KW) |
220/274 |
Rated voltage(V) |
230/400/415/440 |
Rated speed(rpm) |
1800 |
Rated frequency(Hz) |
60 |
Power factor |
0.8 |
Ambient temperature(°C) |
40 |
Altitude(m) |
1000 |
Connection type |
3 phase 4 wires |
Dimension(for reference) |
2800*1000*1450 |
Weight(for reference) |
2500 |
Accessories optional |
Fuel tank, Canopy, Soundproof enclosure, Trailer, Container |
ENGINE |
STEYR |
Model |
WP10D264E201 |
Manufacturer |
Weichai Heavy Machinery Co., Ltd. |
Rated Power(kW) |
240 |
Cyl. & arrangement |
6 in line |
Speed governor |
Electronic |
Startor |
DC 24V motor or air motor |
Cooling method |
Internal water cooling, radiator |
Aspiration |
Turbocharger, aftercooler |
Bore×Stroke(mm) |
126×130 |
Fuel consumption 100% load (g/kw.h) |
≤ 210 |
Accessories optional |
Governor manual or servo, Battery charger, Jacket heater |
ALTERNATOR |
MARATHON |
Manufacturer |
Shanghai Marathon-Gexin Electirc Co., Ltd. |
Connecting Type |
3 Phase and 4 Wires |
Number of Bearing |
Single |
Coupling |
Direct |
Power Factor |
0.8 |
Protection Grade |
IP23 |
Number of pole |
4 |
Winding/ Pitch |
100% Copper, 2/3 Pitch |
Cooling Fan |
Cast alloy aluminum |
Exciter Type |
Brushless, Self-Exciting |
Insulation Class |
H |
TIF/THF |
TIF <50 / THF<2% |
Total Harmonic TGH/THC |
<1.5% at no load / <5% at load |
Voltage Regulation, Steady State |
≤±1% |
Sustained Short-Circuit Current |
300%(3 in):10s |
Accessories optional |
PMG, Space heater, Anti-condensation heater |
CONTROL SYSTEM |
SMARTGEN(auto) |
Accessories optional |
AMF, ATS, Paralleling function, Remote control function |
Generator set feature
1. Engine Deutz + Marathon alternator
2. Test program includes 50% load, 75% load, 100% load, 110% load
3. Automatic controller and safety shut-down functions
4. Industrial silencer and flexible exhaust hose
5. CHINT/MCCB circuit breaker.
6. ISO&OEM factory, comply with ISO8528/GB2820
Our genset consists of Engine, Alternator, Foot-mounting, Control panel, Radiator, Air filter, Exhaust silencer, Elbow, Expansion joint, Battery, Shock absorber and Operation manual.
With Robust foot mounting, Reliable performance and Versatile configurations,
It’s worth your time for further contact.
Skype: justinguo2006, Taizhou, China
Cellphone: +86 1599 6023 708
