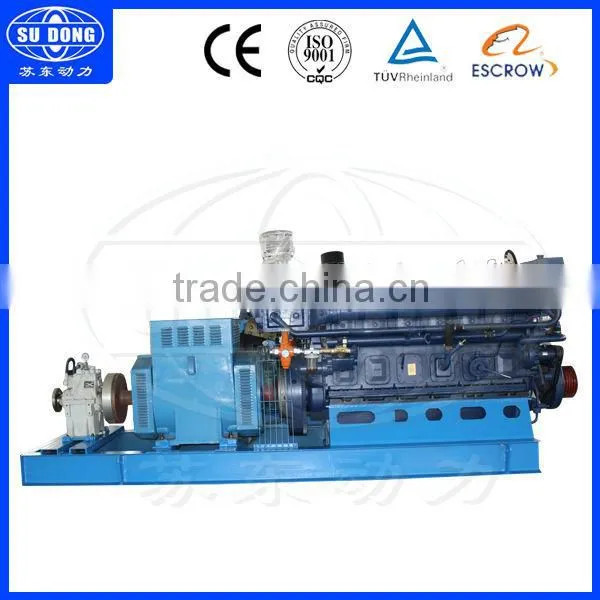

250kw/312.5kv Motor+Weichai Generator Set

Name: 250kw/312.5kv Motor+Weichai Generator Set
Brand: SUDONG
SKU: 107128149

US$ 20,000 - 28,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SUDONG

Model Number:

SDW250

Taizhou Sudong Power Generating Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SUDONG

Model Number SDW250

Output Type AC Three Phase

Speed 1500RPM/1800rpm

Frequency 50HZ/60HZ

Rated Power 250KW

Rated Voltage 400V/440V

Rated Current 450A

Specifications

1) Weichai Diesel Generator
2) Good Price Diesel Generator
3) 2 Years Warranty
4) Full Lifetime Service

Specification of Engine

Model	WP12CD317E200
Type	In-Line,Direct-Injection, Four -Stroke,Wet 6 Cylinder Liner
Bore/stroke(mm)	126/155
Displacement(L)	11.596
Prime power/speed (kW/r/min)	288KW/1500rpm&1800rpm
Standby power(kW)	317kw
Starting method	Electric
Cooling method	Water cooling and water tank cooling
Governing method	Electronic
Aspiration method	Natural Aspiration
Fuelconsumption (g/kW.h)	≤195
Noise @ 1m dB(A)	≤108
Rotation direction of crankshaft	Counter clockwise (face to flywheel end)

Marathon Alternator Technical Data

Alternator model	Mp-H-250-4
Alternator manufacturer	Marathon
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	250kW
Rated speed	1500RPM /1800rpm
Rated frequency	50 Hz
Phase	3
Rated voltage	400 V(Available with customer requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23
