250kw/312.5kva Weichai Power Generator With Weichai Filter

FOB Price

US$ 20,000 - 28,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1) Weichai Diesel Generator
2) Good Price Diesel Generator
3) 2 Years Warranty
4) Full Lifetime Service

Specification of Engine

Model	WP13CD385E200
Type	In-Line,Direct-Injection, Four -Stroke,Wet 6 Cylinder Liner
Bore/stroke(mm)	127/165
Displacement(L)	12.54
Prime power/speed (kW/r/min)	350KW/1500rpm&1800rpm
Standby power(kW)	385kw
Starting method	Electric
Cooling method	Water cooling and water tank cooling
Governing method	Electronic
Aspiration method	Natural Aspiration
Fuelconsumption (g/kW.h)	≤195
Noise @ 1m dB(A)	≤108
Rotation direction of crankshaft	Counter clockwise (face to flywheel end)

Marathon Alternator Technical Data

Alternator model	MX-H-300-4
Alternator manufacturer	Marathon
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	300 kW
Rated speed	1500RPM /1800rpm
Rated frequency	50 Hz
Phase	3
Rated voltage	400 V(Available with customer requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23

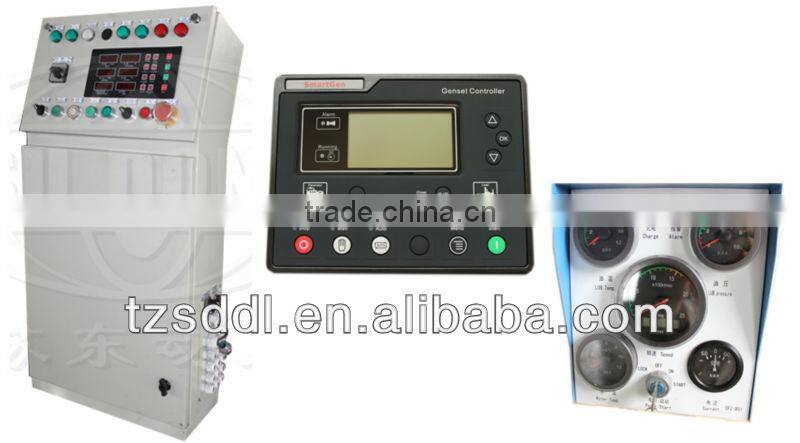

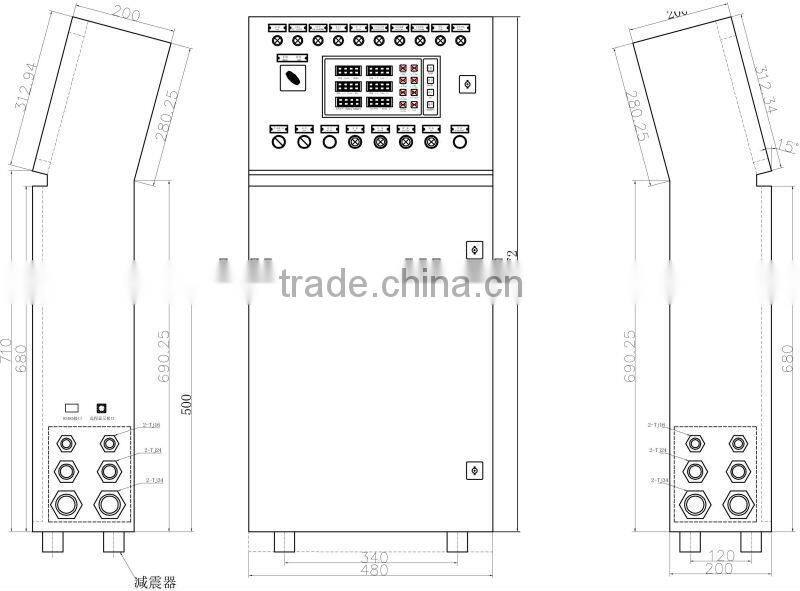

Control Panel

Our Factory and Products

Our Honour and Certificate
