High Quality Silicone 600v Wire is our company main product and also the best-selling wire. It is widely used in construction, industrial and overhead. There are single , double and multi cores ect. And our company have gained American UL, SGS, CTi and CCC, ISO9001 etc.
Specification
High Quality Silicone 600v Wire
Size: 2*0.5mm2~2*2mm2(as your requirement) this is two cores wire
Material: Silicone
Silicone copper two cores wire rate voltage is 300V/600V and rate temperature is -60deg~+200deg.
High Quality Silicone 600v Wire
CHARACTERISTICS
Suitable for applications to -60°C
Excellent and flexible cable.
APPLICATIONS Silicone Rubber Heat Resisting 600v Wire
Used for internal wiring of commercial, industrial,household ovens and lighting fixture.
Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.
Suitable for application to -60°C.
These wires are silicone insulation and a braided fiberglass jacket or not for enhanced abrasion resistance. They meet all UL requirements for appliance lead wire and are also available with UL certification. Silicone Rubber Heat Resisting 600v Wire .
Specification(single core)
Conductor |
Insulation |
Max. Conductor Resistance (20°C) (Ω/km) |
Reference Weight (kg/km) |
|||||
Size |
Nominal Area (mm2 ) |
Conductor Structure (No./mm) |
Nominal Thickness (mm) |
Braid Thickness (mm) |
Nominal Diameter (mm) |
Max. Diameter (mm) |
||
26 |
0.128 |
7/0.16 |
0.39 |
0.20 |
1.66 |
1.8 |
143.0 |
4.0 |
24 |
0.205 |
7/0.20 |
0.39 |
0.20 |
1.78 |
1.95 |
92.0 |
4.9 |
22 |
0.324 |
7/0.26 |
0.39 |
0.20 |
1.96 |
2.1 |
56.8 |
6.6 |
20 |
0.519 |
7/0.32 |
0.39 |
0.20 |
2.15 |
2.3 |
40.1 |
8.6 |
18 |
0.823 |
7/0.40 |
0.39 |
0.20 |
2.38 |
2.55 |
23.0 |
13.7 |
16 |
1.31 |
7/0.50 |
0.39 |
0.20 |
2.68 |
2.85 |
14.6 |
17.9 |
14 |
2.08 |
41/0.254 |
0.45 |
0.20 |
3.2 |
3.4 |
9.9 |
26.0 |
12 |
3.31 |
19/0.50 |
0.50 |
0.20 |
3.9 |
4.2 |
5.4 |
42.8 |

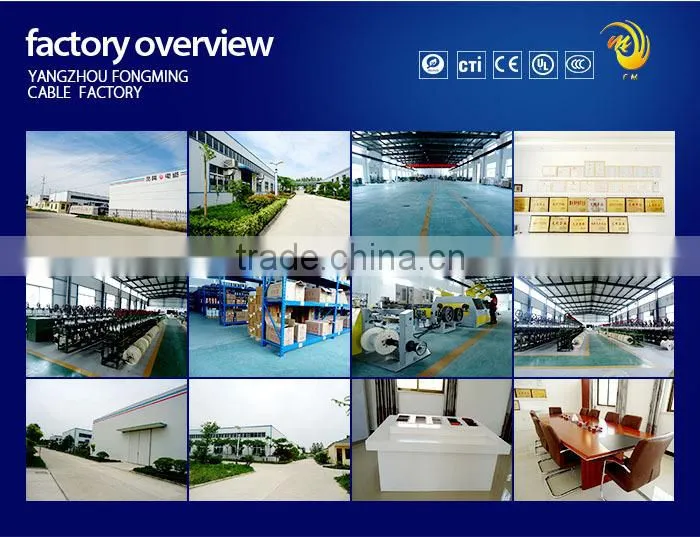

We are a professional manufacturer producing UNIVERSAL and SPECIAL CABLE & WIRE certificated by China. Our factory is located in Baoying, North of Yangzhou, which is a historical, cultural and celebrated city in China.
We have got Compulsory Product Certification, ISO9000 International Quality System Certification and American UL Certification. With an experienced and professional team, our products have been sold in many regions in China and are exported to European and American .
Trade & Market
| Main Markets: | Oceania Southeast Asia Domestic Market Northern Europe Central America Southern Europe South Asia Eastern Europe Africa Eastern Asia Mid East Western Europe South America North America | |
| Total Annual Sales Volume: | US$50 Million - US$100 Million | |
| Export Percentage: | 61% - 70% |
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
