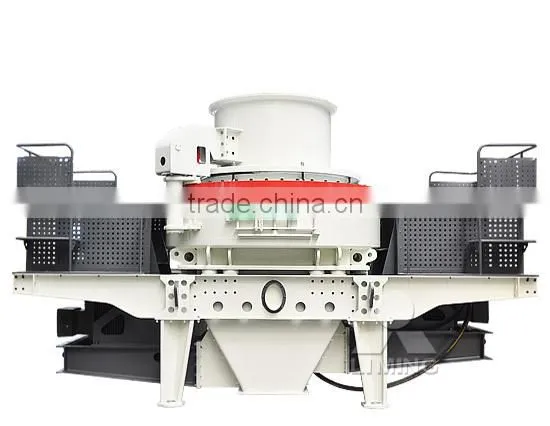

used Vertical Shaft Impact Crusher for sale
- 30 Set / Sets per Month
- Qingdao Shanghai or Tianjin
- T/T
- Mining Stone Crushing Machine Silica Quartz Sand Making Production Line
- High Efficiency Stone Fine Crusher 5X Series Sand Making Machine
- High Efficient Artificial Building VSI Crusher Sand Making Machine Equipment
- Automatic Zero Discharge Concrete Recycling System
- Concrete Batching Plant Parts
- Concrete Recycling Machine
Product Details
Condition: | New | Production Capacity: | 70tph-640tph | Place of Origin: | Henan, China |
Brand Name: | LIMING | Model Number: | VSI5X7615,VSI5X8522,VSI5X9532,VSI5X1145 | Voltage: | 380V,50Hz |
Power(W): | 150KW,220KW,320KW,440KW, | Dimension(L*W*H): | 4100*2330*2300,4140*2500*2700,4560*2600*2900,5000*2790*3320 | Weight: | 8.6,11.8,17.5,27.5 |
Certification: | ISO9001:2008,CE,SGS | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Overview

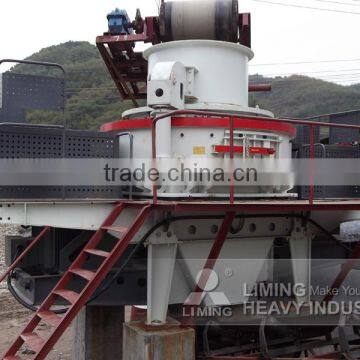

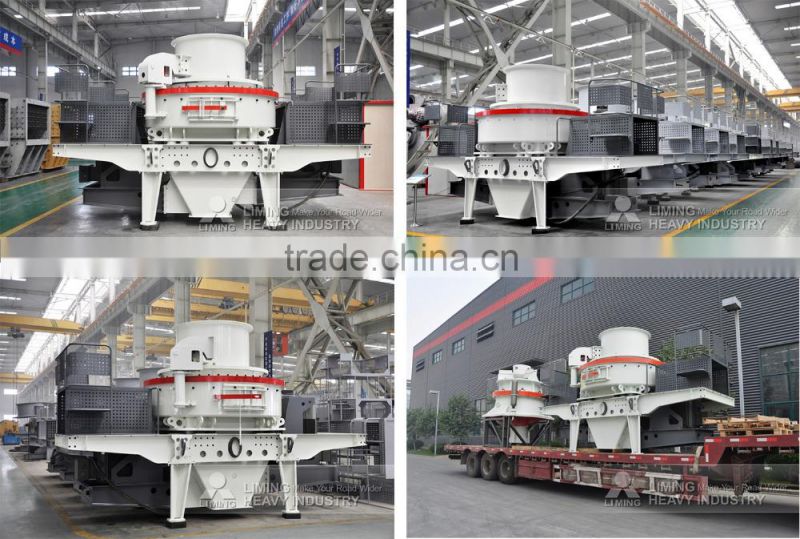

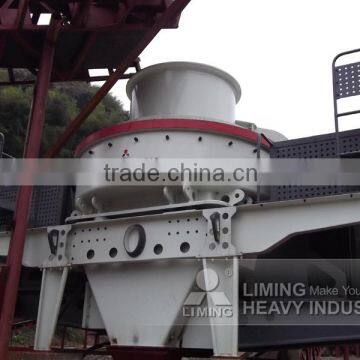

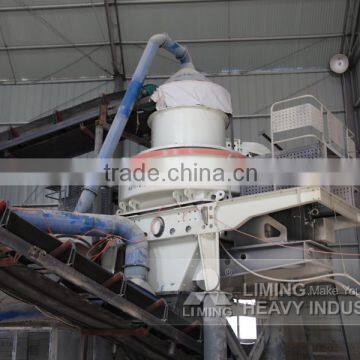

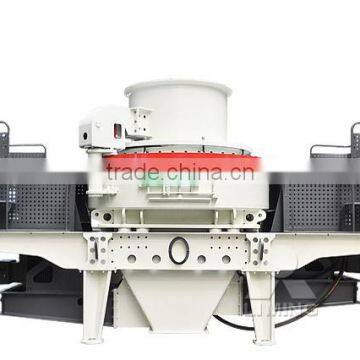

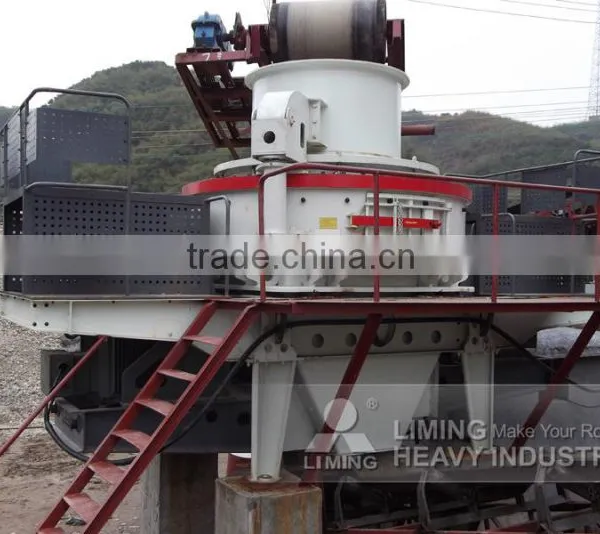

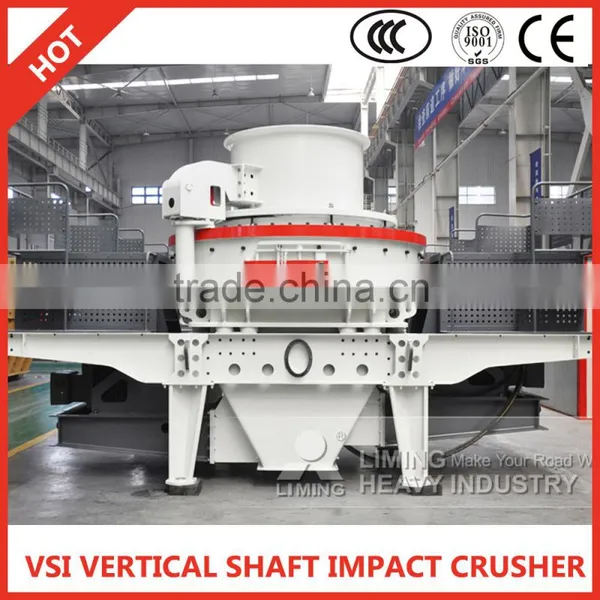

VSI5X series of Vertical Shaft Impact Crusher is widely used in various metallic and nonmetallic ores, cement, corhart, abrasive material, glass, construction material, machine-made sand, metallurgy, etc. It is also applicable to crush various stones with different hardness in medium and fine crushing area, such as iron ore, non ferrous metal, emery, bauxite, quartz sand, basalt, etc.
Features
VSI5X series of Vertical shaft Impact Crusher introduces German technology. VSI5X is the key equipment in sand making area with many patents. VSI5X is a kind of totally new high efficient crusher. It has the following features:
1. Rotor with deep chamber increases 30% capacity after perfect design.
2. Side plate direction can be changed to increase material utility ratio, operating ratio can be increased 48%.
3. Worn hammer with combined type is only changed to reduce operating cost 30%. Another pair of vice hammer is added to prevent from damaging main hammer and side plate.
4. The most key wear resistant material uses wear resistant and high temperature resistant material in American important area.
5. Rhombus shape impact plate is used to prevent side plate from being damaged.
6. Bearing is famous international brand imported from Japan, Sweden, America, etc.
7. Perfect discharge and smooth curve reduce resisting force when material flows, so capacity is increased greatly.
8. Spread dish with double purposes can make two feeding ways change easily.
9. Special seal structure under main shaft guarantee no oil leak without seal.
10. Japanese hydraulic opening cover device is originally imported. The cover is moved easily and inspection of inner part is easy.
11. Motor with high grade of protection is selected. The motor has features of high efficiency, low noise, etc. The motor complies with IEC, insulation grade F, protection grade IP54/55.

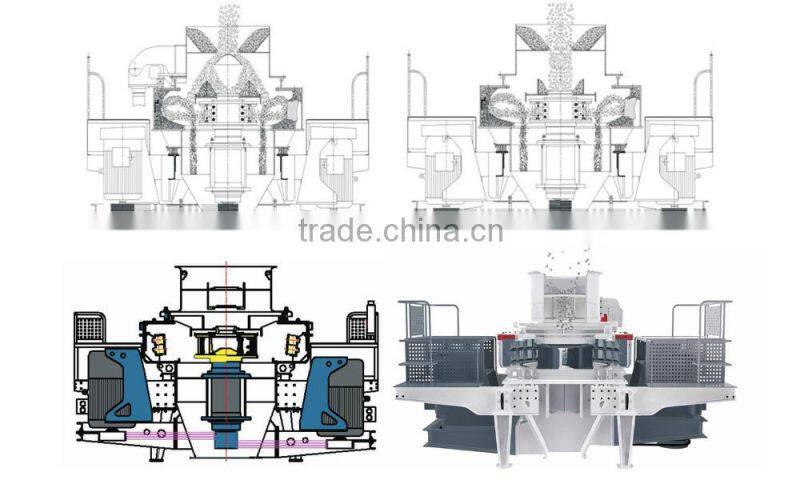

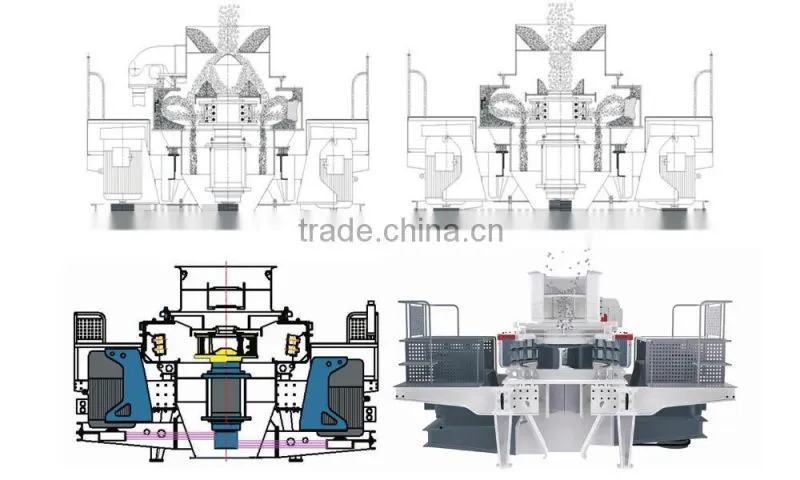

Working Principle
When entering into impeller, the raw material can be crushed directly by hitting impact plate after it is accelerated and threw out. The raw material can also be divided into two parts by material-dividing plate. One falls down from all around. The other enters into impeller and is accelerated, threw out and collides with the falling material and hit, rebound with impact plate. The circulation hits repeats. As the crushing is moving forward, small particle materials will gradually form a material bed around the impact plate which can improve the crushing effect and protect the machine. The desired artificial sand comes downwards though outlet finally.
Specifications
1. Main technical parameters:
model | VSI5X7615 | VSI5X8522 | VSI5X9532 | VSI5X1145 | |
Throughput capacity (t/h) | Center and Ring feeding | 150~280 | 240~380 | 350~540 | 500~640 |
Center feeding | 70~140 | 120~190 | 180~280 | 250~360 | |
Max. Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
Hard material | <30 | <35 | <40 | <45 | |
Rotation speed (r/min) | 1700~1900 | 1500~1700 | 1300~1510 | 1100~1310 | |
Power of double motor (KW) | 150 | 220 | 320 | 440 | |
Overall dimension L×W×H (mm) | 4100×2330×2300 | 4140×2500×2700 | 4560×2600×2900 | 5000×2790×3320 | |
Weight (t) | 8.6 | 11.8 | 17.5 | 27.5 | |
Power source | 380v,50Hz | ||||
Thin oil lubrication station | Power for double oil pump | 2 x 0.37 KW | |||
Safety | To make sure the supply of oil with double oil pump, working without oil, temperature when water cools, start the motor by heating it in winter. | ||||
Power for oil box heater | 2 KW | ||||
Overall dimension L×W×H (mm) | 820×520×1270 |
Note: Capacity depends on crushing limestone, material size, moisture and features also affect capacity.
2. Lubricating system parameter:
Oil box volume (L) | 240 |
Rated pressure (MPa) | 0.63 |
Flow capacity (L/min) | 8 |
Power (KW) | 0.31 |
Cooling water consumption (m3/h) | ≥1.2 |
Electrical heating voltage (V) | 220 |
Medium | Bearing oil 32—46# |
About Us
Henan LIMING Heavy Industry Science and Technology Co. LTD which mainly manufacture large and medium-sized crushing and grinding equipments was founded in 1987. It is a modern joint-stock corporation with research, manufacturing and sales together. The Headquarter is located in HI-TECH Industry Development Zone of Zhengzhou and covers 80000 m ². Another workshop in Shangjie Industry Park covers 67000 m ². Over the past 30 years, our company adheres to modern scientific management system, precision manufacturing, pioneering and innovation. Now LIMING has become the leader in domestic and oversea machinery manufacturing industry.
LIMING brings a large number of high-qualification talents together. Bai Yinghui, general research and development engineer, is a well-known expert in crushing and grinding area who won the youth medal of technology of the state council and receives special government allowance. LIMING owns an experienced service team, offering the customer free design and professional skill training and live guide for installation and debugging. The company's service networks have spread all over the country. Established client files, and mix the traditional door-to-door service with online service together, complementary the advantages. LIMING has won high recognition from clients.
The company mainly manufactures mobile crushers, stationary crushers, sand-making machines, grinding mills and complete plants that are widely used in mining, construction, highway, bridge, coal, chemical, metallurgy, refractory matter, etc. Product quality is life, and scientific innovation is motive power. LIMING got ISO international quality system certification, European Union CE certification and Russian GOST certification. The company has strong research and development strength and innovation.
Over the past 26 years, our company adheres to modern scientific management system, precision manufacturing, pioneering and innovation. Now LIMING has become the leader in domestic and oversea machinery manufacturing industry.
Our Products Supply range of LIMING Company
1.Vibrating feeder, two types of GZD and ZSW to meet user’s different processing capacity;
2.First crushing: Jaw crusher, or Impact crusher, or cone crusher to meet user’s choise
3.Secondary crushing: fine jaw crusher, or impact crusher, or cone crusher(spring type, spring and hydraulic type, hydraulic type)
4.Vibrating screen, YK series, linear series, DF series
5.Belt conveyor, stationary type, or mobile type sand stone production line
6.Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc.
7.Electric control cabinet sand stone production line
8.Diesel power generation set for choosing.
Application of LIMING crusher
LIMING provides a complete line of stone production; the output is widely used in road, bridge, house, high building,
railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.
Advantages of LIMING Brand of Stone Production Line
1.Complete stone production line, near to turn-key project;
2.Stationary type or mobile type for choosing
3.First class workmanship sand stone production line
4.Reliable quality with CE approved, reaching to European standard
5.Updating in design and function year by year, forms our own unique design by considering of saving more cost and improve the processing capacity for user’s consideration.
6.Invention technical patent kept sand stone production line.

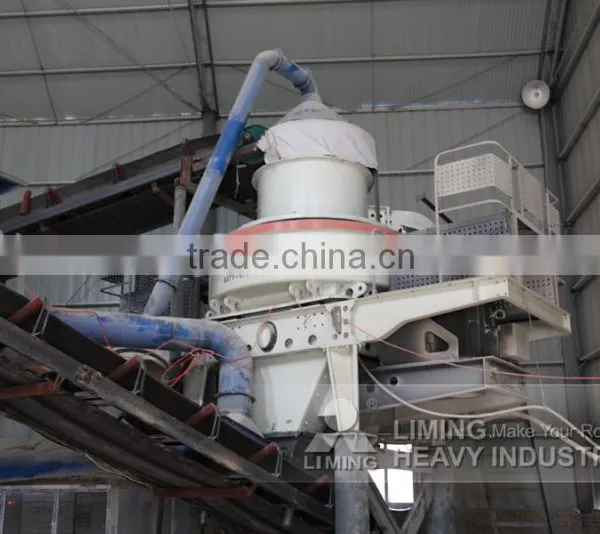

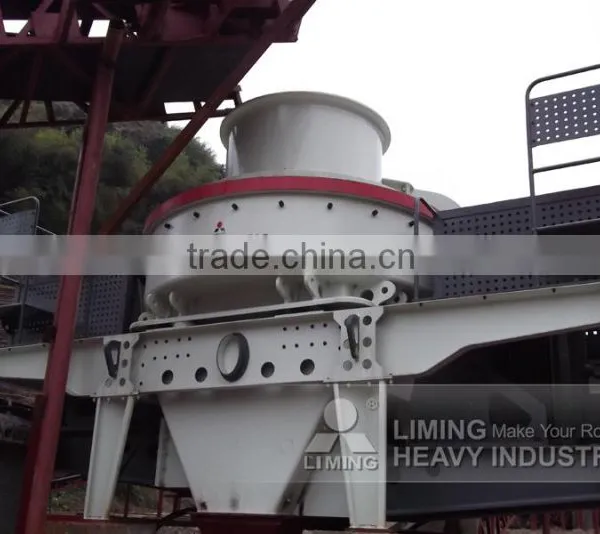

More real pictures for our equipment working case
Jaw Crushers ——————————>>
Impact crushers ————————————>>
Cone Crushers ————————————>>
More Case about crushing line case for your reference
Jaw stone crushing line case ———————————————————>>
Impact crushing line case for complete sand production lines ———————————>>
Cone crushing line case complete sand production lines ———————————>>
mobile crusher production line csse complete stone production lines ———————————>>
Sand production line csse complete sand production lines ———————————>>
Our services
High quality service is what we are pursuing. Our service is available all around the world. And our high quality service team is ready to provide you with fast and efficient service from the tailored solutions for competitive production process to free training of complete plant installation
1) Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export stone and sand making production line.
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Service supervision
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff , please feel free to contact us by
dialing 24 hours hot line;:0086-21-68911957 for stone and sand making production line.
Certifications
The General Research Institute of Liming Heavy Industry focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes Liming Heavy Industry a pioneer of the industry. By providing fundamental research results, the institute supports Liming Heavy Industry existing technology and products to be the world's top ones.
The General Research Institute of Liming Heavy Industry is the primary R&D department for technical research and technical management. It is responsible for developing technology applicable to Liming all products, conducting forefront technical research on new products and setting standards; researching vibration, impact, noise, hydraulic technology, power matching and energy saving, new materials and control systems, creating innovative technologies and conceptive products and building up a network-based special and generalized platform for experiments and tests so as to share general experiment and test results.
How about the quality of your Crusher?
- Our crusher manufactured strictly according to national and international standard.
- We take a test on every crusher before delivery.
How about price of your crusher?
- We can give the lowest price of the crusher than market one.
- We do quotation of crusher as soon as possible for any custome.
- Discount of Crusher can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation Crusher overseas.
- The guarantee period of our Crusher is one year.
If you would like to receive the price and detailed specifications of our Colombia sand making machine hot sale , please Leave Us a message Below!!!
News.
What stones can be sand, how to select the sand making machine, sand stone system has cost construction sand essential raw materials, but you can have the stone sand system and how to choose reasonable sand making machine, Liming Heavy Industry Science & Technology sand making machine brand manufacturer to make a brief introduction for you. Speaking of sand stone system, the most common type of rock have granite, basalt, limestone, diabase, andesite, diorite, rhyolite, perlite, sandstone, etc., the name of the stone are: limestone, dolomite, granite, calcite, cobblestones, pebble, marble, quartz, gypsum, shale, sandstone, corundum, apatite, quartz sand, fluorite, fai green rock, coal gangue and so on the many kinds of mineral name.
How to select the sand making machine?
Selects the sand making machine according to the ore properties and its manufacturer production of choose and buy, the hardness, brittleness and composition of different selection of stone sand making machine is also different. And have to be choose according to their own situation, the customer is a long-term production, such as stone production, according to these conditions to buy cost-effective, quality excellent, with long time and good after-sales service companies. Different sand making machine prices, product quality, the use of time, energy consumption, maintenance and other aspects are not the same, customers should be careful of choose and buy, should be combined with their situation, multifaceted investigation to the choose and buy the sand making machine.
