80W 90W 100W 220-240VAC Dimmable DOB Led Light Engine

80W 90W 100W 220-240VAC Dimmable DOB Led Light Engine photo-1

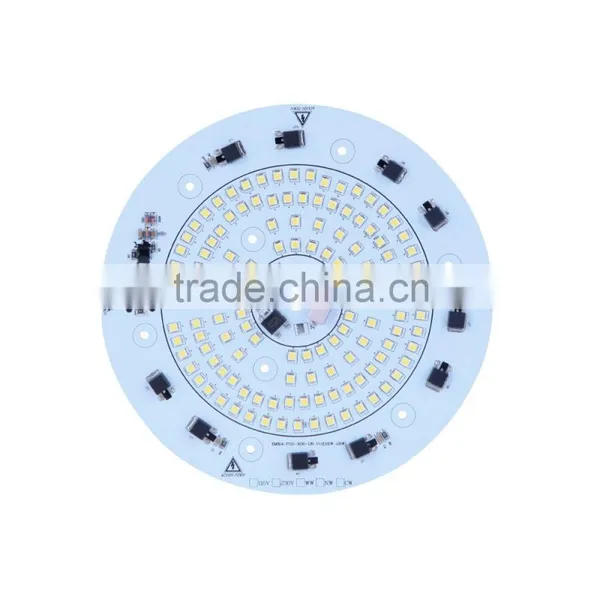

80W 90W 100W 220-240VAC Dimmable DOB Led Light Engine photo-2

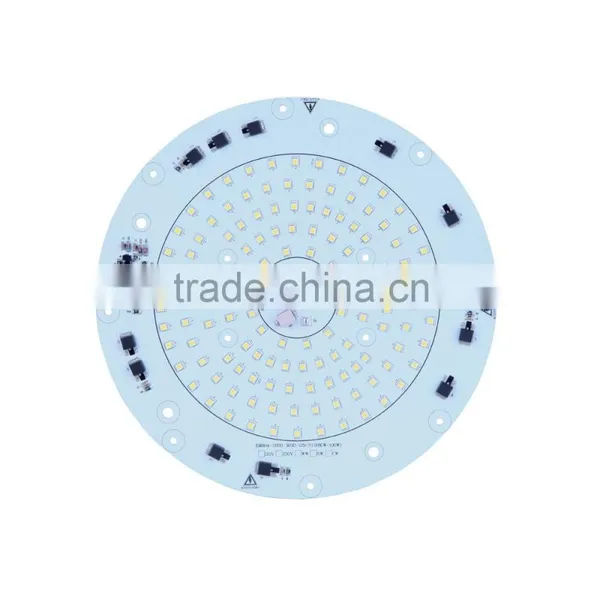

80W 90W 100W 220-240VAC Dimmable DOB Led Light Engine photo-3
US$ 12 - 18 MOQ: 1 Piece
Key Specifications
Get Latest Price
Model Number:
SMDOB-D150-IC80-100W
Chip Material:
Other, smd3030
Emitting Color:
Other, WW,NW,CW
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Model Number SMDOB-D150-IC80-100W
Chip Material Other, smd3030
Emitting Color Other, WW,NW,CW
Luminous Flux(lm) 9000
Power Other, 100W
Color Rendering Index(Ra) 80
Color Temperature WW,NW,CW
Operating Temperature(℃) -30, 55
Place of Origin Guangdong, China
Brand Name Seamount
Certification CE

80W 90W 100W 220-240VAC dimmable DOB led light engine

80W 90W 100W 220-240VAC dimmable DOB led light engine

100W AC Linear LED Module
Led source: SMD 3030 124pcs
Rated Watts:  100W
Input Voltage: AC220-240V
PF: 0.98
Driver: AC linear
Luminus(lm): 9000 lm±5%
CCT(K): 3000-6000K
Ra: >80
Beam angle:  140°
Material: PCB2.0(high-conductivity)
life span(H): >30,000
Operating temperature: -30℃ ~ 55℃

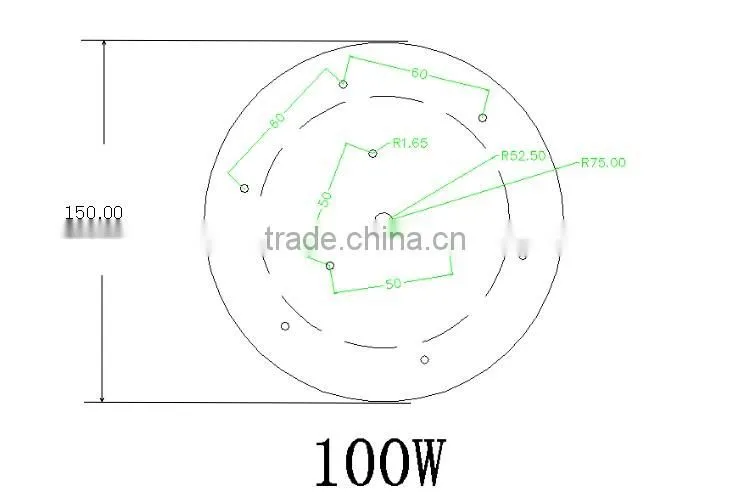

Size: D150mm*2.0mm

80W 90W 100W 220-240VAC dimmable DOB led light engine

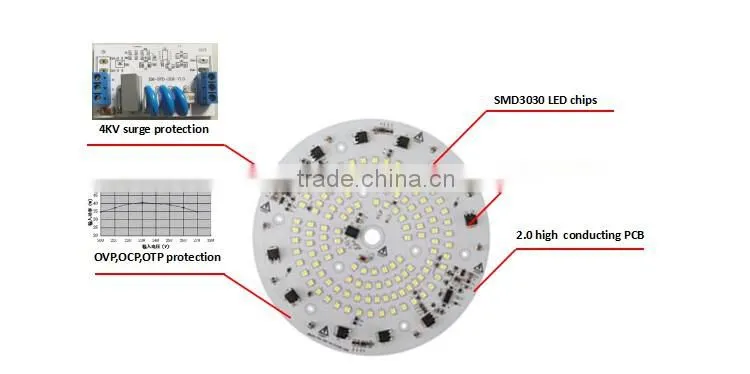

* AC integrated driver, high reliability,PF>0.98

* With OVP, OTP and OCP pProtection,

* 4KV surge protection(optional),

* LED 3030 124pcs,CRI>80,

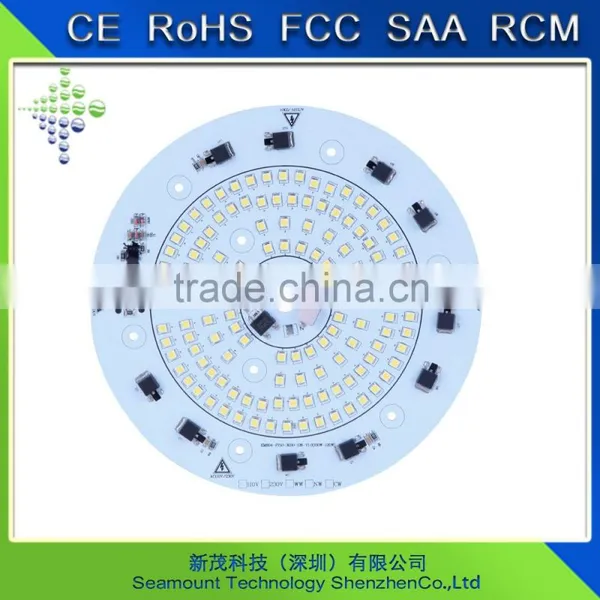

* CE, RoHS, FCC,SAA,RCM certification

* 3000K,4000K,6000K

* THD<15%

* High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.

* Long lifespan>30,000h,3 years warranty

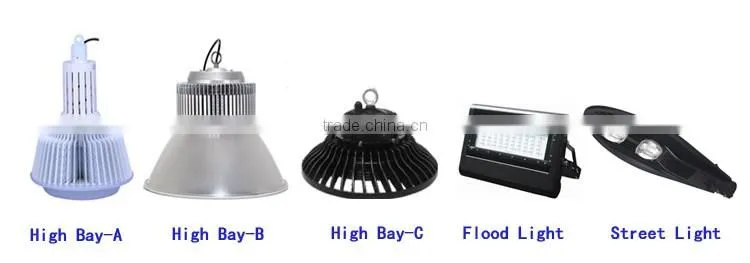

* The 100w AC light engine can use in high bay light,flood light,street light,downlight and so on.

80W 90W 100W 220-240VAC dimmable DOB led light engine

100W ac led light engine can be use in led high bay light,led street light ,led flood light,led downlight ect...

4KV surge protector(US$2.5/PC) is recommend for indoor light fixture.

4KV surge protector(US$2.5/PC) is must for industrial light fixture.

4KV-10KV lightning arrester is must for outdoor or street light fixture.



80W 90W 100W 220-240VAC dimmable DOB led light engine

80W 90W 100W 220-240VAC dimmable DOB led light engine

80W 90W 100W 220-240VAC dimmable DOB led light engine80W 90W 100W 220-240VAC dimmable DOB led light engine
