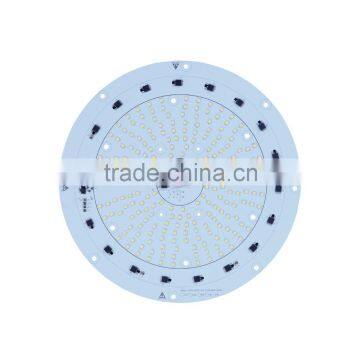

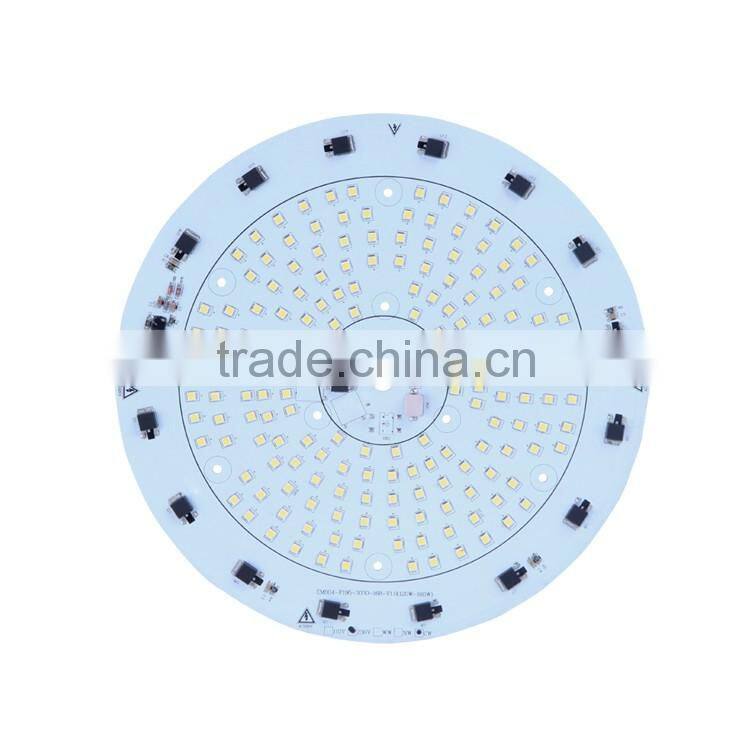

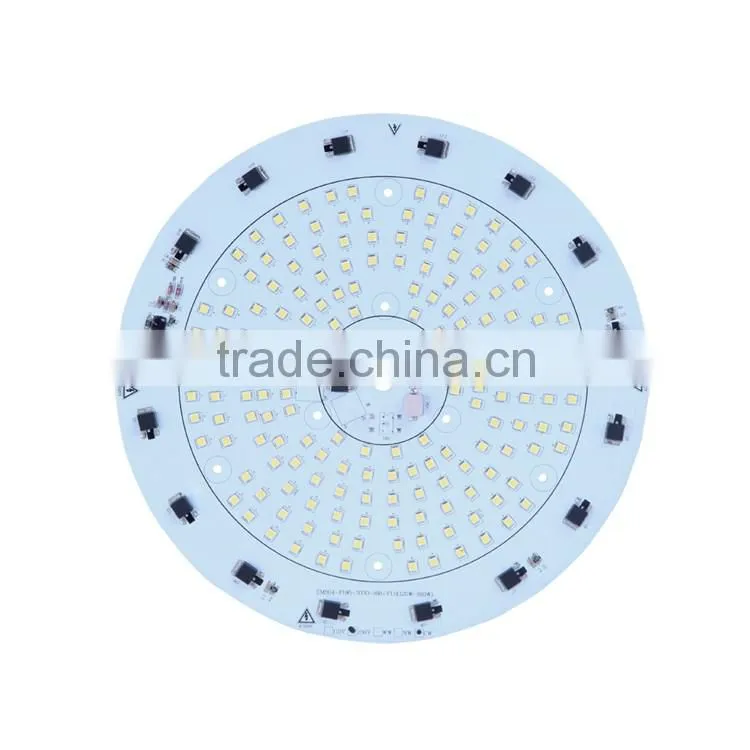

220-240VAC SMD3030 120W 130W 140W 150W AC led module
| 150W AC Linear LED Module | |
| Led source: | SMD 3030 172pcs |
| Rated Watts: | 150W |
| Input Voltage: | AC220-240V |
| PF: | 0.98 |
| Driver: | AC linear |
| Luminus(lm): | 13500 lm±5% |
| CCT(K): | 3000-6000K |
| Ra: | >80 |
| Beam angle: | 140° |
| Material: | PCB2.0(high-conductivity) |
| life span(H): | >30,000 |
| Operating temperature: | -30℃ ~ 55℃ |

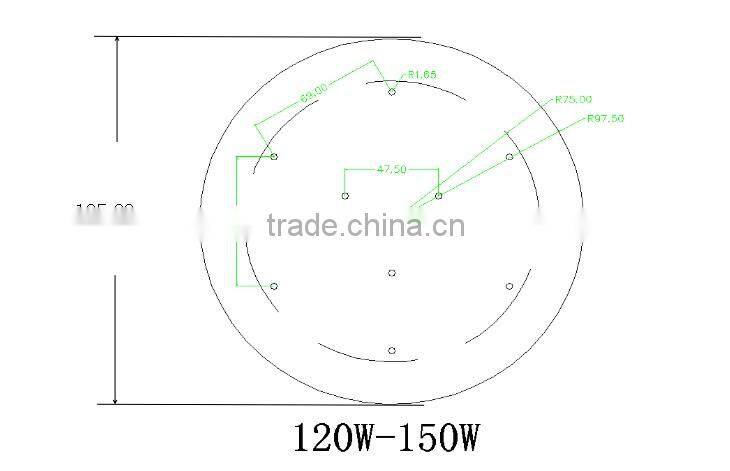

| Size: | D198mm*2.0mm |

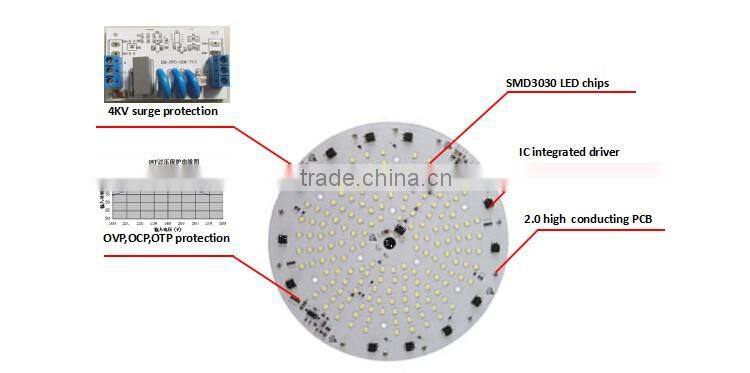

* AC integrated driver, high reliability,PF>0.98
* With OVP, OTP and OCP pProtection,
* 4KV surge protection(optional),
* LED 3030 172pcs,CRI>80,
* CE, RoHS, FCC,SAA,RCM certification
* 3000K,4000K,6000K
* THD<15%
* High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.
* Long lifespan>30,000h,3 years warranty

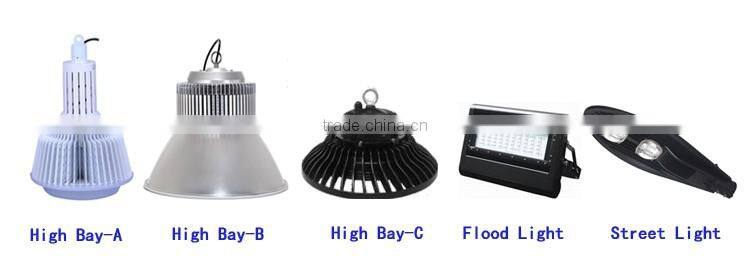

* The 150w AC light engine can use in high bay light,flood light,street light,downlight and so on.
150W ac led module can be use in led high bay light,led street light ,led flood light,led downlight ect...
4KV surge protector is recommend for indoor light fixture.
4KV surge protector is must for industrial light fixture.
4KV-10KV lightning arrester is must for outdoor or street light fixture.
