50W 60W 70W 220VAC operated directly led light circult board
| 70W AC Linear LED Module | |
| Led source: | SMD 3030 86pcs |
| Rated Watts: | 70W |
| Input Voltage: | AC220-240V |
| PF: | 0.98 |
| Driver: | AC linear |
| Luminus(lm): | 6500 lm±5% |
| CCT(K): | 3000-6000K |
| Ra: | >80 |
| Beam angle: | 140° |
| Material: | PCB2.0(high-conductivity) |
| life span(H): | >30,000 |
| Operating temperature: | -30℃ ~ 55℃ |

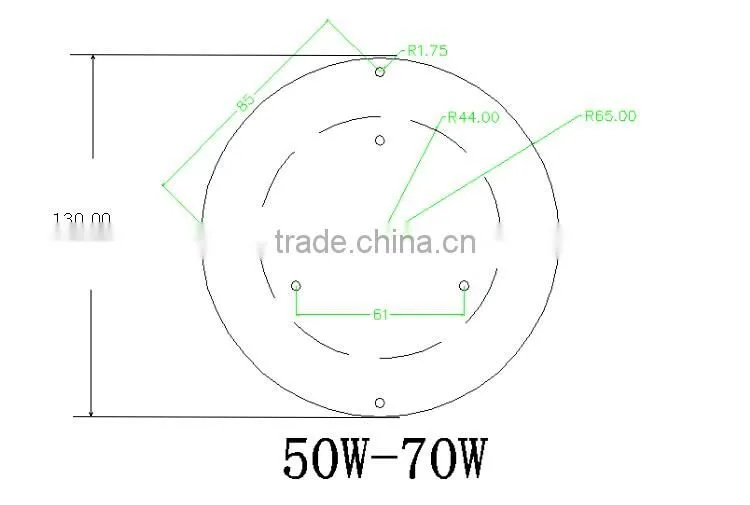

| Size: | D130mm*2.0mm |

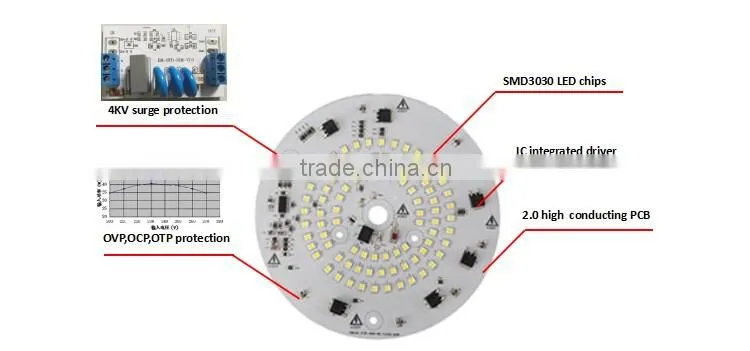

* AC integrated driver, high reliability,PF>0.98
* With OVP, OTP and OCP pProtection,
* 4KV surge protection(optional),
* LED 3030 86pcs,CRI>80,

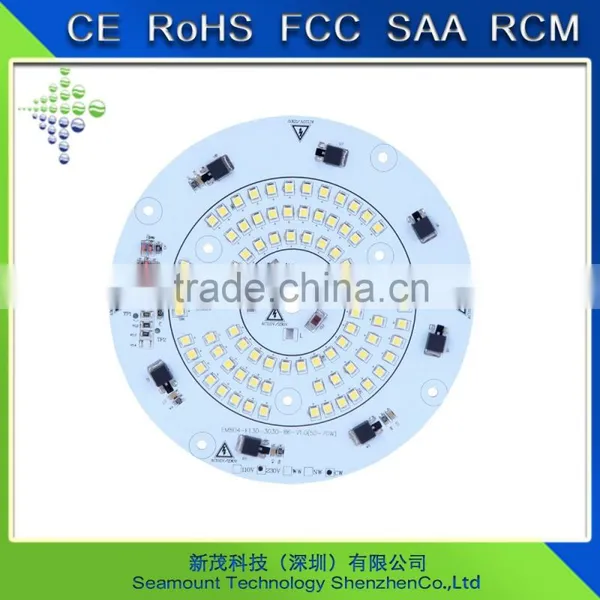

* CE, RoHS, FCC,SAA,RCM certification
* 3000K,4000K,6000K
* THD<15%
* High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.
* Long lifespan>30,000h,3 years warranty
* The 70w AC light engine can use in high bay light,flood light,street light,downlight and so on.
50W ac led light engine can be use in led high bay light,led street light ,led flood light,led downlight ect...
4KV surge protector(US$2.5/PC) is recommend for indoor light fixture.
4KV surge protector(US$2.5/PC) is must for industrial light fixture.
4KV-10KV lightning arrester is must for outdoor or street light fixture.
