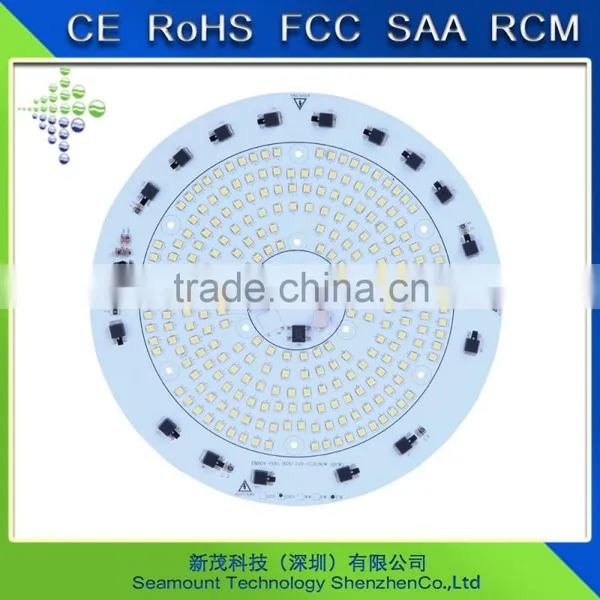

200-265VAC 160W to 200W high power AC DOB led light board
| 180W AC Linear LED Module | |
| Led source: | SMD 3030 245pcs |
| Rated Watts: | 180W |
| Input Voltage: | AC220-240V |
| PF: | 0.98 |
| Driver: | AC linear |
| Luminus(lm): | 19500 lm±5% |
| CCT(K): | 3000-6000K |
| Ra: | >80 |
| Beam angle: | 140° |
| Material: | PCB2.0(high-conductivity) |
| life span(H): | >30,000 |
| Operating temperature: | -30℃ ~ 55℃ |
| Size: | D195mm*2.0mm |
* AC integrated driver, It can operate with 220V ac directly,No need led diriver
* With OVP, OTP and OCP protection and 4KV surge protection(optional), High reliability,PF>0.98
* LED 3030 248pcs,CRI>80,
* 3000K,4000K,6000K
* THD<15%
* High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.
* Long lifespan>30,000h,3 years warranty
* The 180w AC light engine can use in high bay light,flood light,street light,downlight and so on.
180W 200W ac led module can operate with 220V ac directly,No need led diriver
It can be use in led high bay light,led street light ,led flood light,led downlight ect...
4KV surge protector(US$2.5/PC) is recommend for indoor light fixture.
4KV surge protector(US$2.5/PC) is must for industrial light fixture.
4KV-10KV lightning arrester is must for outdoor or street light fixture.
