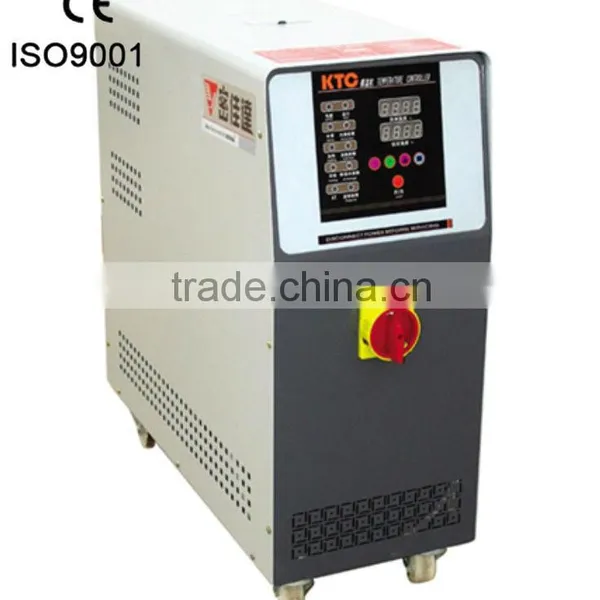

KTC-Series Plastic Injection Water Type Oil Type Mould Temperature Controller

KTC-Series Plastic Injection Water Type Oil Type Mould Temperature Controller thumbnail-1
KTC-Series Plastic Injection Water Type Oil Type Mould Temperature Controller photo-1
US$ 1,000 - 2,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Water and oil temperature machine
Application:
Heating,mould temperature control
Contact Supplier Request Quote Chat Now
Guangzhou Jiayin Machinery Pte., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Water and oil temperature machine
Application Heating,mould temperature control
Place of Origin Guangdong, China
Brand Name JIAYIN
Model Number KTC
Temperature Range 1~350C
Temperature Control Accuracy within +/- 1C
Dimension(L*W*H) 650x280x700mm
Weight 70kg
Internal Piping Size 2X1/2
Voltage Customized
Power(W) 9KW
Certification CE certificate & ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Microcomputer touch-type control; PID controlled touch-type memory for automatic computation;Brand-new design.

KTC-series Mold Temperature Controller

Features:
1. Microcomputer touch-type control, easy to operate.
2. PID controlled touch-type memory for automatic computation, with temperature control at± 1° C and 35% energy saved.
3. Imported pump with large pressure and flow rate ensures uniform temperature on mould.
4. Brand-new design, elegant outlook, compact size and convenient maintenance.
5. Completely stainless steel made bladder and high-pressure blastproof piping.

Safety protection system:
No total power over-current breaker
Motor reversal protection and indication
Low oil protection and indication
Overheat protection and indication
Circulating pump overload protection and indication
Abnormality alarm buzzer and indication
Phase failure protection



Specifications:





Model

KTC-1

KTC-2

KTC-3

KTC-4

Max. Temp. (º C)

120º C

95º C

150º C

200º C

Diathermanous Media

Heat transfer oil

Water

Heat transfer oil

Heat transfer oil

Heating Energy(KW)

6

6

9

9

Cooling Type

Indirect

Direct

Indirect

Indirect

  Pump

Motor Power

1HP

1HP

1HP

1HP



Max. Pressure

4kg/cm

4kg/cm

4kg/cm

6kg/cm



Max. Flow

60L/min

60L/min

60L/min

60L/min

Power Supply

220V/380/415V  60HZ/50HZ

Oil Tank Volume

8L

8L

8L

8L

  Pipe Dia.

Circulating System

2× 1/2

2× 1/2

2× 1/2

2× 1/2



Cooling System

1/2″

1/2″

1/2″

1/2″

Overall Dimendsions

650× 280× 700(W*D*H)

Weight(kg)

60

60

60

70








KTC-Series Plastic Injection Water Type Oil Type Mould Temperature Controller

Safety protection system:
No total power over-current breaker
Motor reversal protection and indication
Low oil protection and indication
Overheat protection and indication
Circulating pump overload protection and indication
Abnormality alarm buzzer and indication
Phase failure protection





Packaging

1.Outside package: Standard export wooden cases
2 .Inner package:Stretch film

KTC-Series Plastic Injection Water Type Oil Type Mould Temperature Controller





FAQ

How about the quality of your product?

  • Our products manufactured strictly according to national and international standard.
  • We take a test on every product before delivery.

How about price of this product?

  • We can give the lowest price  than market one.
  • We do quotation  as soon as possible for any customer.
  • Discount  can be given according to quantity.

How about the after-sale service of your company?

  • Our engineer is available to service  machinery overseas.

      •The guarantee period of our product is one year.(except damageable and artificial).

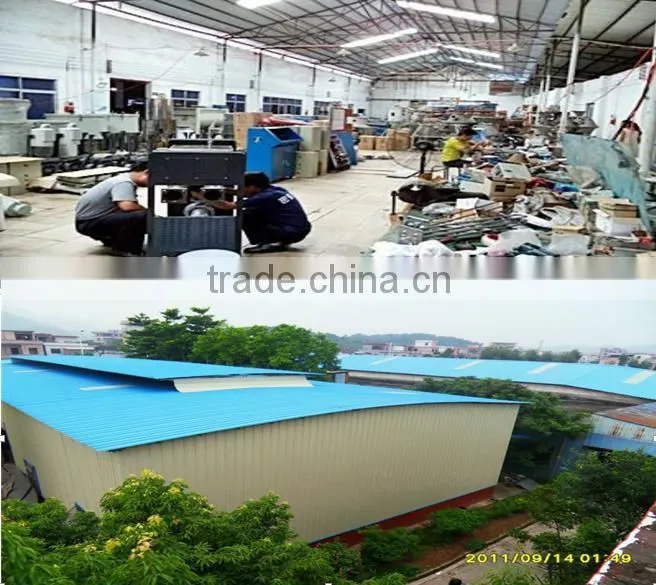

Company Information

KTC-Series Plastic Injection Water Type Oil Type Mould Temperature ControllerKTC-Series Plastic Injection Water Type Oil Type Mould Temperature Controller



   GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years. International trade export experience for nearly 10 years.

     Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction machines,color mixers,mould temperature controllers,water chillers,color master batch propor.wire recycling machine..more

KTC-Series Plastic Injection Water Type Oil Type Mould Temperature Controller
